SB-950 ST (316E756G190) - White Outdoor Snow Boss Snow Thrower (1996) Engine, Starter, V-Belt And Pulley Parts Diagram

Snow Boss Snow Thrower

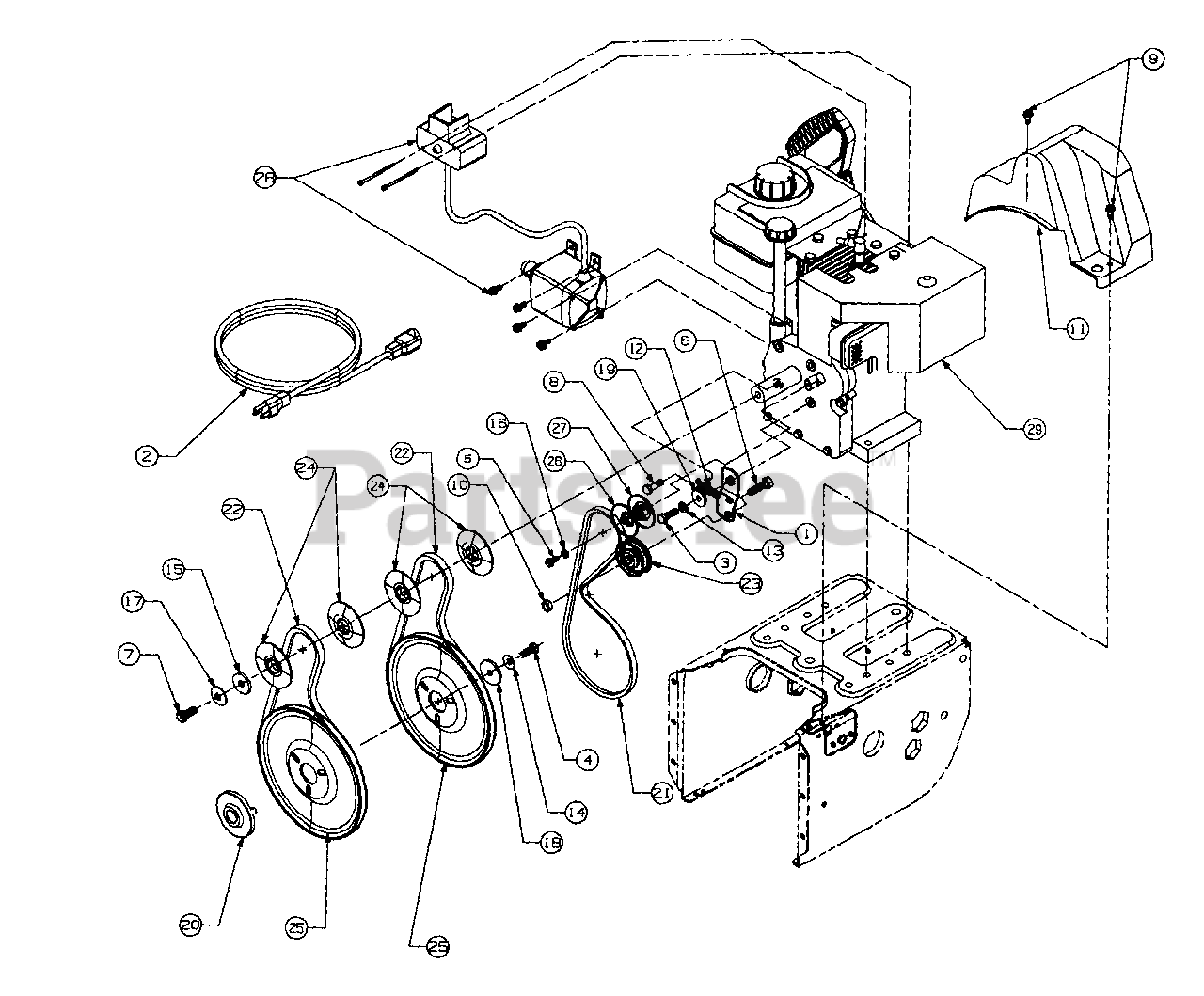

Engine, Starter, V-Belt And Pulley Parts Diagram

  • Title

1

White Outdoor 05896A

Bracket

Variations

White Outdoor 05896A-0637

No Longer Available BRACKET-IDLR-CLUTCH - POWDER BLACK (0637)

$

$

Not available

$

$

2

White Outdoor 629-0071

Cord, Extension
(Superseded to 929-0071B)

$22.99

$

Usually ships in 3-6 days

0

3

White Outdoor 710-0117

Screw
(Superseded to 710-0888)

$3.99

$

In Stock, Qty 11

0

4

White Outdoor 710-0157

Screw

$3.99

$

In Stock, Qty 16

0

5

White Outdoor 710-0230

Screw

$

$

Not available

6

White Outdoor 710-0342

Screw
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 710-0696

Screw

$6.49

$

In Stock, only 2 left!

0

8

White Outdoor 710-0888

Screw

$3.99

$

In Stock, Qty 11

0

9

White Outdoor 710-0896

Screw

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 712-0181

Nut, Hex

$3.99

$

In Stock, Qty 5

0

11

White Outdoor 731-1324

Belt Cover

$20.99

$

In Stock, only 1 left!

0

12

White Outdoor 732-0710

Spring
(Superseded to 932-0710)

$6.99

$

In Stock, Qty 12

0

13

White Outdoor 736-0119

Washer - Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 736-0242

Washer - Bell

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 736-0247

Flat Washer

$8.99

$

In Stock, Qty 20+

0

16

White Outdoor 736-0329

Washer - Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

17

White Outdoor 736-0331

Washer

$3.99

$

In Stock, Qty 20+

0

18

White Outdoor 736-0505

Washer

$5.99

$

In Stock, Qty 6

0

19

White Outdoor 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 10

0

20

White Outdoor 748-0360

Pulley Adapter
(Superseded to 948-0360)

$21.99

$

In Stock, only 3 left!

0

21

White Outdoor 754-0346

V-Belt
(Superseded to 954-0346)

$28.99

$

In Stock, Qty 20+

0

22

White Outdoor 754-0430

V-Belt
(Superseded to 954-0430C)

$28.99

$

In Stock, Qty 20+

0

23

White Outdoor 756-0313

Idler, Flat

$24.99

$

In Stock, Qty 8

0

24

White Outdoor 756-0569

Pulley, Half

$10.99

$

In Stock, Qty 5

0

25

White Outdoor 756-0967

Pulley, Auger

$52.99

$

Usually ships in 3-6 days

0

26

White Outdoor 756-0986

Pulley, Half

$

$

Not available

27

White Outdoor 756-0987

Pulley, Half
(Superseded to 956-0987)

$

$

Not available

28

White Outdoor 390-987-000

Starter
(Superseded to TC-33329H)

Note: For model E756G Only

$

$

Not available

29

Engine

$

$

Not available
