SB-950 T (31AD7N3F190) - White Outdoor Snow Boss Snow Thrower (2001) Blower Housing Parts Diagram

Snow Boss Snow Thrower

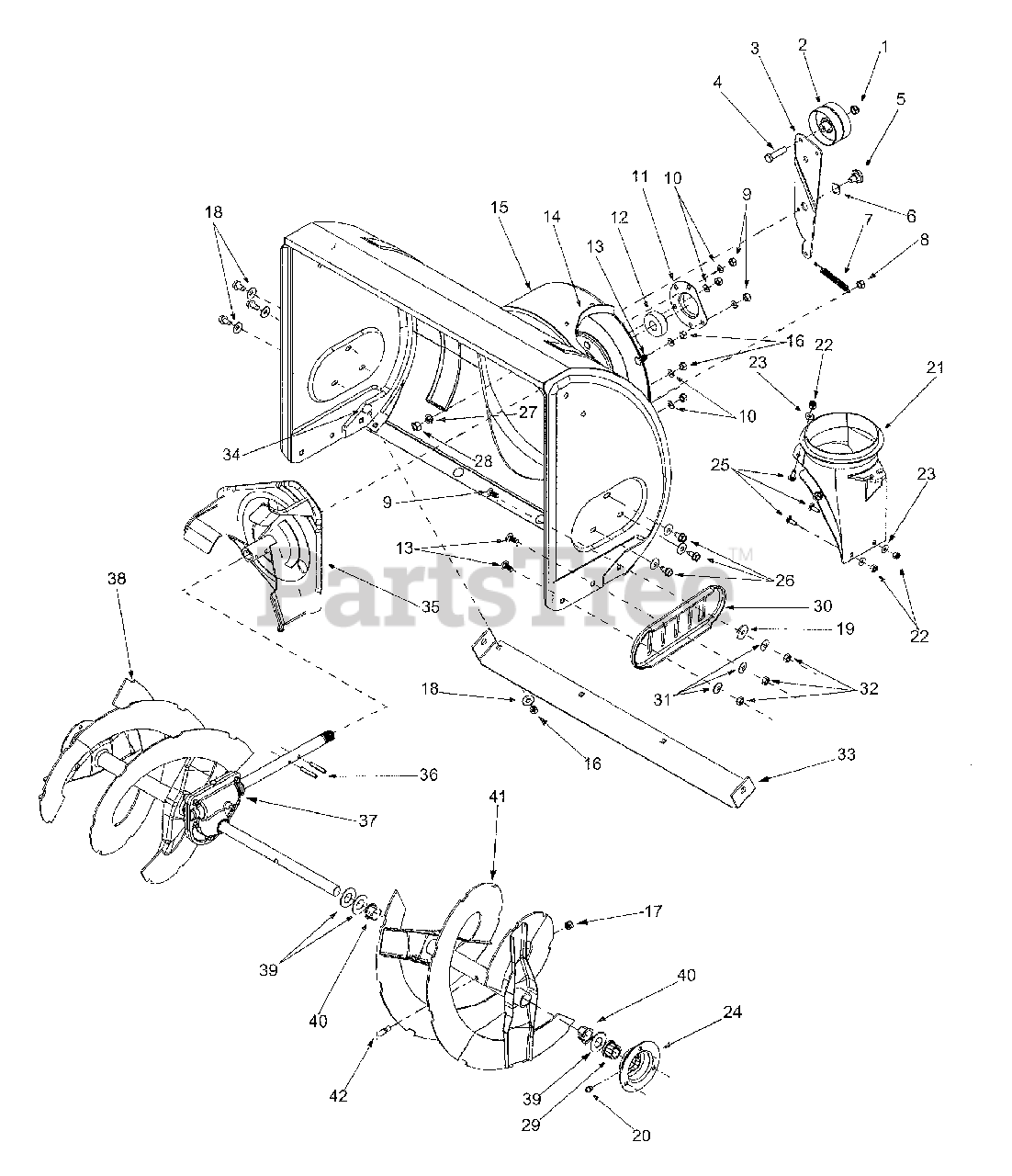

Blower Housing Parts Diagram

  • Title

1

White Outdoor 712-0116

Lock Jam Nut 3/8-24

$4.49

$

In Stock, Qty 7

0

2

White Outdoor 756-0178

Flat Idler

$18.99

$

In Stock, only 4 left!

0

3

White Outdoor 784-5632A

Auger Idler Arm
(Superseded to 984-0064-0637)

Variations

White Outdoor 784-5632A-0637

ARM ASSY-IDLER - POWDER BLACK (0637)

$30.99

$

In Stock, only 3 left!

0

$30.99

$

In Stock, only 3 left!

0

4

White Outdoor 710-0459A

Hex Cap Screw 3/8-24 x 1.50

$6.99

$

In Stock, Qty 10

0

5

White Outdoor 738-0281

Shoulder Screw

$9.99

$

In Stock, only 1 left!

0

6

White Outdoor 736-0167

Flat Washer .656 ID x 1.25 OD
(Superseded to 936-0167)

$6.49

$

In Stock, Qty 7

0

7

White Outdoor 732-0611

Extension Spring
(Superseded to 932-0611)

$6.99

$

In Stock, Qty 20+

0

8

White Outdoor 712-3068

Hex Nut 5/16-18
(Superseded to 912-3009)

$

$

Not available

9

White Outdoor 710-0276

Carriage Bolt, 5/16 18 x 1.00

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 05931A

Housing

$9.99

$

In Stock, only 2 left!

0

12

White Outdoor 741-0309

Ball Bearing
(Superseded to 941-0309)

$69.99

$

In Stock, Qty 7

0

13

White Outdoor 710-0451

Carriage Bolt, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor 705-5226

Chute Reinforcement

Variations

White Outdoor 705-5226-0637

Chute Reinforcement - POWDER BLACK (0637)

$9.99

$

In Stock, Qty 7

0

White Outdoor 705-5226-0638

Chute Reinforcement - MTD/TROY-BILT RED (0638)

$9.99

$

In Stock, Qty 7

0

$9.49

$

Usually ships in 3-6 days

0

15

White Outdoor 684-0040C

26" Housing Assy
(Superseded to 684-0040D)

Variations

White Outdoor 684-0040C-0709

HOUSING ASSY-26" - MASTERCRAFT GREEN (0709)

$

$

Not available

White Outdoor 684-0040C-0483

HOUSING ASSEMBLY 26" CHARCOAL - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 684-0040C-0638

HOUSING ASSEMBLY 26" RED - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 684-0040C-0650

HOUSING ASSEMBLY 26" RED - RED METALLIC (0650)

$

$

Not available

White Outdoor 684-0040C-0662

HOUSING ASSEMBLY 26" GREY - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 684-0040C-0691

HOUSING ASSEMBLY 26" BLACK - BLACK JACK (0691)

$

$

Not available

White Outdoor 684-0040C-0629

HOUSING ASSEMBLY 26 SILVER - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 684-0040C-0665

HOUSING ASSY-26" - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 684-0040C-0667

HOUSING ASSY-26" - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 684-0040C-0683

HOUSING ASSY-26" - LESCO GREEN (0683)

$

$

Not available

White Outdoor 684-0040C-0689

HOUSING ASSY-26" - POLO GREEN (0689)

$

$

Not available

$

$

16

White Outdoor 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 712-0429

Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

White Outdoor 736-0242

Belleville Washer

$3.99

$

In Stock, Qty 20+

0

19

White Outdoor 736-0231

Flat Wshr, .344ID x 1.125 OD

$4.49

$

In Stock, only 4 left!

0

20

White Outdoor 737-3000

Grease Fitting, 3/16" Drive
(Superseded to 937-3000)

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 731-1379B

Chute Adapter
(Superseded to 731-1379D)

$61.99

$

In Stock, only 1 left!

0

22

White Outdoor 712-0324

Hex Lock Nut 1/4-20

$3.49

$

In Stock, Qty 20+

0

23

White Outdoor 736-0463

Flat Washer

$4.49

$

In Stock, only 2 left!

0

24

White Outdoor 784-0399

Bearing Housing w/Fitting
(Superseded to 784-5618A-0637)

$12.99

$

In Stock, Qty 8

0

25

White Outdoor 710-0703

Carriage Screw 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

26

White Outdoor 710-0604

Hex Screw 5/16-18
(Superseded to 710-0604A)

$3.99

$

In Stock, Qty 20+

0

27

White Outdoor 736-0169

Lock Washer 3/8

$3.49

$

In Stock, Qty 20+

0

28

White Outdoor 712-0798

Hex Nut 3/8-16

$3.99

$

Usually ships in 3-6 days

0

29

White Outdoor 741-0245

Hex Flange Bearing
(Superseded to 941-0245)

$9.49

$

In Stock, Qty 20+

0

30

784-50388

Skid Shoe

$

$

Not available

31

White Outdoor 736-0242

Bell Washer

$3.99

$

In Stock, Qty 20+

0

32

White Outdoor 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 784-5579A

Shave Plate
(Superseded to 790-00121-0637)

Variations

White Outdoor 784-5579A-0629

Shave Plate, 26" Powder Black - SILVER FLAKE (0629)

$34.99

$

In Stock, Qty 8

0

White Outdoor 784-5579A-0637

Shave Plate, 26" Powder Black - POWDER BLACK (0637)

$34.99

$

In Stock, Qty 8

0

White Outdoor 784-5579A-0638

Shave Plate, 26" Powder Black - MTD/TROY-BILT RED (0638)

$34.99

$

In Stock, Qty 8

0

White Outdoor 784-5579A-0667

Shave Plate, 26" Powder Black - MIDNIGHT BLUE (0667)

$34.99

$

In Stock, Qty 8

0

White Outdoor 784-5579A-0689

Shave Plate, 26" Powder Black - POLO GREEN (0689)

$34.99

$

In Stock, Qty 8

0

White Outdoor 784-5579A-0691

Shave Plate, 26" Powder Black - BLACK JACK (0691)

$34.99

$

In Stock, Qty 8

0

White Outdoor 784-5579A-0692

Shave Plate, 26" Powder Black - AGWAY BLUE (0692)

$34.99

$

In Stock, Qty 8

0

$34.99

$

In Stock, Qty 8

0

34

White Outdoor 710-0451

Carriage Bolt 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

35

White Outdoor 684-0065

Impeller Assembly
(Superseded to 984-0065-0637)

Variations

White Outdoor 684-0065-0662

Impeller Assembly - OYSTER GRAY (0662)

$84.99

$

In Stock, only 2 left!

0

White Outdoor 684-0065-0665

Impeller Assembly - YARDMAN GREEN (0665)

$84.99

$

In Stock, only 2 left!

0

$84.99

$

In Stock, only 2 left!

0

36

White Outdoor 715-0114

Pin

$8.49

$

In Stock, Qty 9

0

37

White Outdoor 618-0415A

26" Gear Assy
(Superseded to 918-0415B)

$411.99

$

Usually ships in 3-6 days

0

38

White Outdoor 605-5192A

26" Spiral RH
(Superseded to 684-04182-0637)

Variations

White Outdoor 605-5192A-0637

Spiral Assembly, RH 26" - POWDER BLACK (0637)

$178.99

$

Usually ships in 3-6 days

0

$178.99

$

Usually ships in 3-6 days

0

39

White Outdoor 736-0188

Flat Washer

$3.99

$

In Stock, Qty 20+

0

40

White Outdoor 741-0493A

Flange Bushing
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

41

White Outdoor 605-5193A

26" Spiral LH
(Superseded to 684-04183-0637)

Variations

White Outdoor 605-5193A-0637

Spiral Assembly, LH 26" - POWDER BLACK (0637)

$

$

Not available

$

$

42

White Outdoor 710-0890A

Shear Bolt 5/16-18 x 1.5

$1.99

$

In Stock, Qty 20+

0

White Outdoor 777D04524

Label: Side Housing

$

$

Not available

White Outdoor 777D04538

Label: Engine

$

$

Not available

777D04529

Label: Top Housing SB 950T

$

$

Not available

777D04521

Label: Handle Panel

$

$

Not available

777120324

Label: Transport

$

$

Not available

777120820

Label: Panel LH

$

$

Not available

777120821

Label: Panel RH

$

$

Not available

777530511

Label: Chute Danger

$

$

Not available

777530514

Label: Housing Danger

$

$

Not available
