SB-950 T (31AE7E3F190) - White Outdoor Snow Boss Snow Thrower (1999) Gear Case Assembly Parts Diagram

Snow Boss Snow Thrower

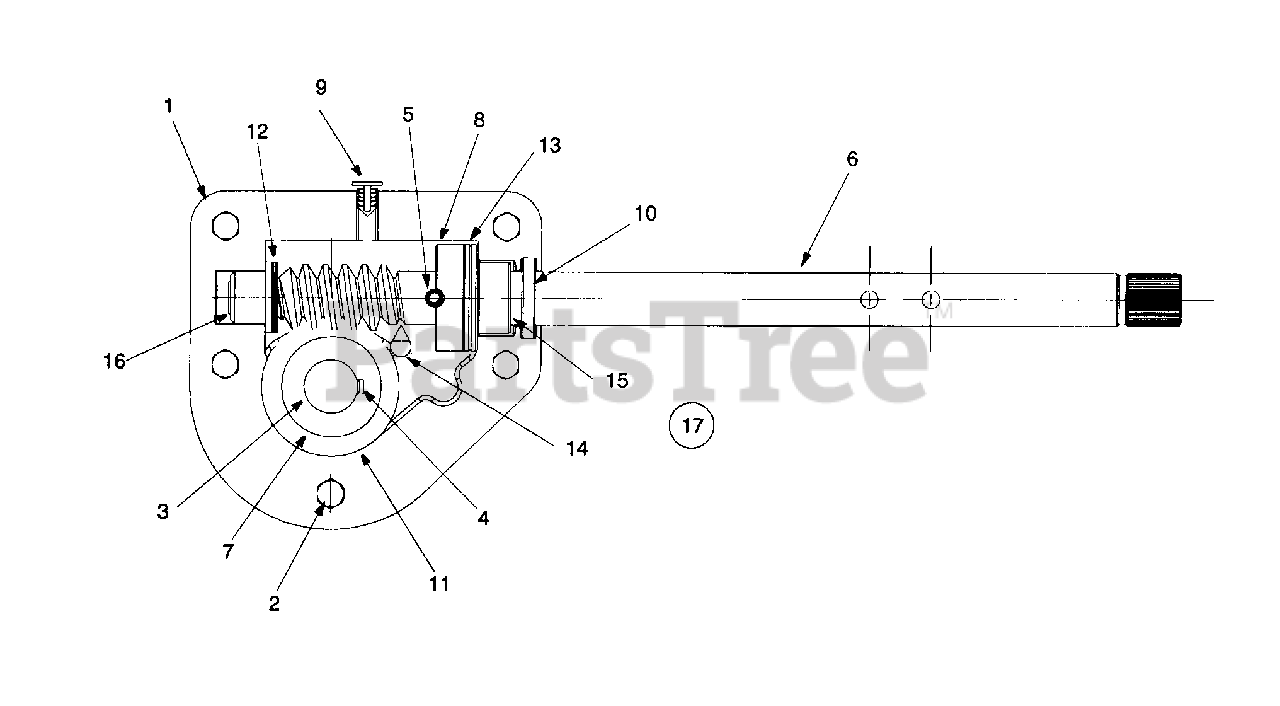

Gear Case Assembly Parts Diagram

  • Title

1

White Outdoor 618-0123

Housing - L.H.
(Superseded to 918-0123A)

$48.99

$

In Stock, Qty 14

0

White Outdoor 618-0124

Housing - R.H.
(Superseded to 918-0124A)

$48.99

$

In Stock, Qty 16

0

2

White Outdoor 710-0642

Hex Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 711-0908

Spiral Axle 24"
(Superseded to 711-0908A)

Note: (For model E733E)

$

$

Not available

White Outdoor 711-0909

Spiral Axle 26"
(Superseded to 711-0909A)

Note: (For model E7E3F)

$

$

Not available

4

White Outdoor 714-0161

Key
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 12

0

5

White Outdoor 715-0143

Pin-Spiral

$4.49

$

In Stock, Qty 15

0

6

White Outdoor 717-0526

Shaft-Worm
(Superseded to 717P0526)

$101.99

$

In Stock, only 2 left!

0

7

White Outdoor 717-0528

Gear-Worm
(Superseded to 917-04861)

$40.99

$

In Stock, Qty 20+

0

8

White Outdoor 718-0186

Collar-Thrust

$7.99

$

In Stock, only 2 left!

0

9

White Outdoor 721-0325

Plug

$4.49

$

In Stock, only 1 left!

0

10

White Outdoor 721-0327

Seal-Oil

$6.49

$

In Stock, Qty 20+

0

11

White Outdoor 736-0351

Washer-Flat

$3.99

$

In Stock, Qty 20+

0

12

White Outdoor 736-0369

Washer-Flat

$4.49

$

In Stock, Qty 6

0

13

White Outdoor 736-0445

Washer-Flat

$3.99

$

In Stock, only 3 left!

0

14

White Outdoor 737-0168

Grease, 1.5 oz Alvania EP Lead Free
(Superseded to 737-0168A)

$28.99

$

In Stock, only 1 left!

0

15

White Outdoor 741-0662

Bearing-Flange

$9.99

$

In Stock, Qty 20+

0

16

White Outdoor 741-0663

Bearing-Flange

$8.99

$

In Stock, Qty 20+

0

17

White Outdoor 618-0120

Gear Case Complete, 24"
(Superseded to 918-0414B)

Note: (For model E733E)

$

$

Not available

White Outdoor 618-0121

Gear Case Complete, 26"
(Superseded to 918-0415B)

Note: (For model E7E3F)

$411.99

$

Usually ships in 3-6 days

0
