SB-950 T (31AE7E3F190) - White Outdoor Snow Boss Snow Thrower (1999) Panel & Handle Assembly Parts Diagram

Snow Boss Snow Thrower

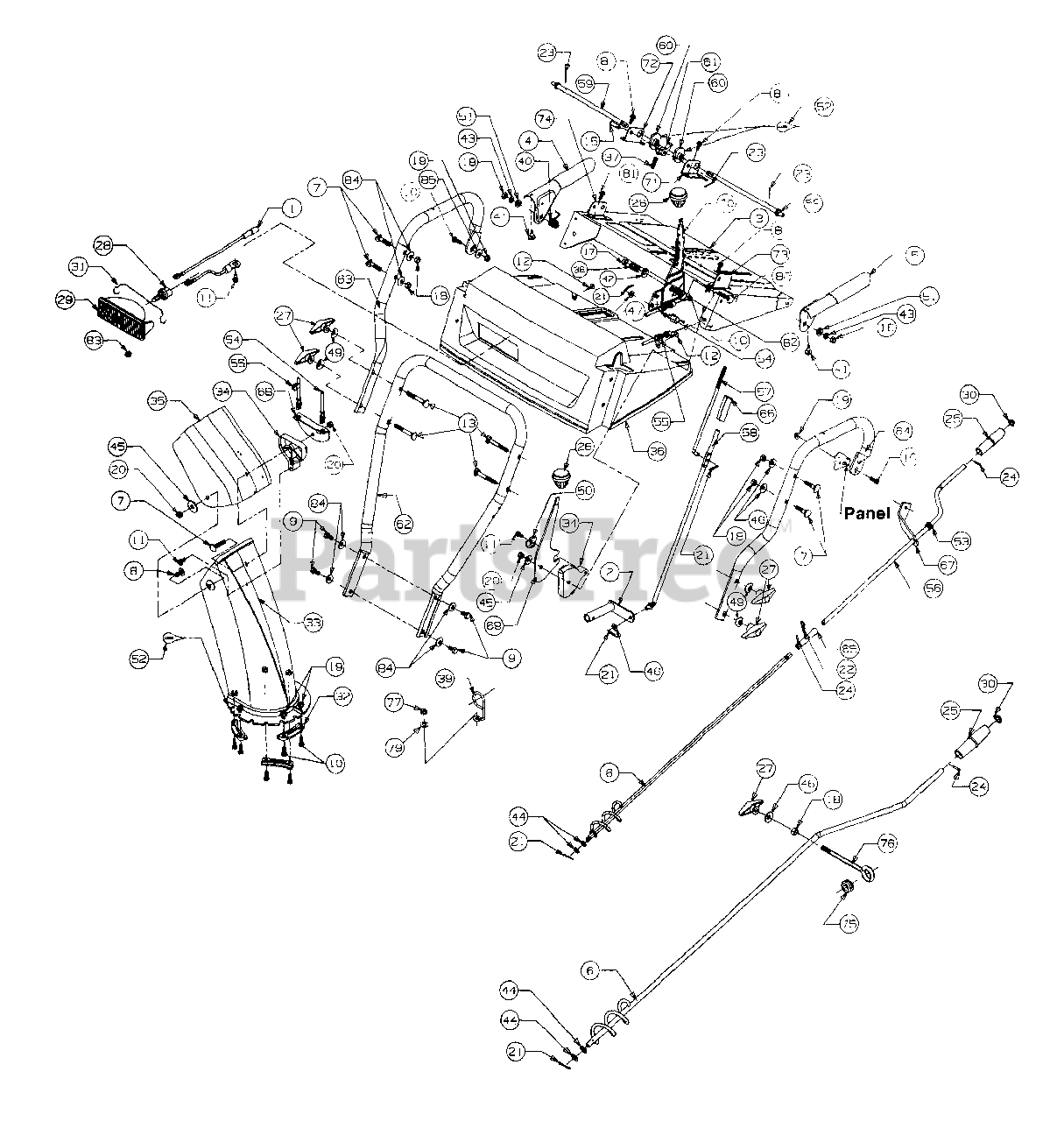

Panel & Handle Assembly Parts Diagram

  • Title

1

White Outdoor 629-0059

Harness-Light
(Superseded to 929-0059)

$93.99

$

Usually ships in 3-6 days

0

2

White Outdoor 684-0008A

Arm-Shift
(Superseded to 684-0008A-0637)

Variations

White Outdoor 684-0008A-0637

Shift Arm Assembly - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

3

White Outdoor 684-0102

Panel Ass'y. - Handle w/Tilt
(Superseded to 684-0102A)

Variations

White Outdoor 684-0102-0638

PANEL ASSY:HANDLE - MTD/TROY-BILT RED (0638)

$143.99

$

Usually ships in 3-6 days

0

White Outdoor 684-0102-0650

PANEL ASSY:HANDLE - RED METALLIC (0650)

$124.99

$

Usually ships in 3-6 days

0

White Outdoor 684-0102-0662

PANEL ASSY:HANDLE - OYSTER GRAY (0662)

$143.99

$

Usually ships in 3-6 days

0

White Outdoor 684-0102-0665

SUPPORT HANDLE - YARDMAN GREEN (0665)

$143.99

$

Usually ships in 3-6 days

0

White Outdoor 684-0102-0689

SUPPORT HANDLE - POLO GREEN (0689)

$124.99

$

Usually ships in 3-6 days

0

White Outdoor 684-0102-0721

PANEL ASSY:HANDLE - SEARS RED (0721)

$124.99

$

Usually ships in 3-6 days

0

$124.99

$

Usually ships in 3-6 days

0

4

White Outdoor 684-0036

Handle-Engagement - R.H.
(Superseded to 684-0036A)

$41.99

$

Usually ships in 3-6 days

0

5

White Outdoor 684-0037

Handle-Engagement - L.H.
(Superseded to 684-0037B)

$38.99

$

In Stock, only 2 left!

0

6

White Outdoor 684-0022

Crank-Chute
(Superseded to 984-0022)

Note: (For model E733E)

$94.99

$

In Stock, only 3 left!

0

White Outdoor 684-0053

Crank-Chute
(Superseded to 684-0053B-0637)

Note: (For model E7E3F)

Variations

White Outdoor 684-0053-0637

Chute Crank Assembly, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

7

White Outdoor 710-0262

Bolt-Carriage

$3.99

$

In Stock, Qty 14

0

8

White Outdoor 710-0451

Bolt-Carriage

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 710-3008

Screw-Hex

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 710-3015

Screw-Hex

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 710-0896

Screw-Washer Head-Hex

$3.99

$

In Stock, Qty 20+

0

12

White Outdoor 710-1003

Screw-Hex
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

13

White Outdoor 710-0449

Bolt-Carriage
(Superseded to 710-0572)

$3.99

$

In Stock, Qty 5

0

15

White Outdoor 711-0653

Pin-Clevis

$3.99

$

Usually ships in 3-6 days

0

16

White Outdoor 711-0677

Ferrule
(Superseded to 911-0677)

$16.99

$

In Stock, only 4 left!

0

17

White Outdoor 712-0116

Nut-Hex Lock

$4.49

$

In Stock, Qty 7

0

18

White Outdoor 712-3010

Nut-Hex

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 712-3027

Nut-Hex Lock
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 712-0429

Nut-Hex Lock

$3.99

$

In Stock, Qty 20+

0

21

White Outdoor 714-0104

Pin-Cotter Internal

$3.99

$

In Stock, Qty 20+

0

22

White Outdoor 714-0145

Pin-Cotter

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 714-0507

Pin-Cotter

$4.49

$

Usually ships in 3-6 days

0

24

White Outdoor 715-0138

Pin-Roll
(Superseded to 915-0138)

$4.49

$

In Stock, only 1 left!

0

25

White Outdoor 720-0201A

Knob-Chute Crank

$10.99

$

In Stock, Qty 6

0

26

White Outdoor 720-0232

Knob-Shift
(Superseded to 920-0232)

$9.99

$

In Stock, only 4 left!

0

27

White Outdoor 720-0284

Knob-Wing Nut

$6.49

$

In Stock, Qty 20+

0

28

White Outdoor 725-1658

Lamp
(Superseded to 925-1658)

$55.99

$

In Stock, Qty 5

0

29

White Outdoor 725-1672

Housing-Lamp
(Superseded to 925-1672)

$83.99

$

Usually ships in 3-6 days

0

30

White Outdoor 726-0100

Cap-Push

$3.99

$

In Stock, Qty 8

0

31

White Outdoor 747-1136

Clip-Retaining

$10.99

$

Usually ships in 3-6 days

0

32

White Outdoor 731-0851A

Keeper-Chute

$3.99

$

In Stock, Qty 20+

0

33

White Outdoor 731-1300A

Chute-Lower
(Superseded to 731-1300E)

$54.99

$

In Stock, Qty 9

0

34

White Outdoor 731-1313B

Guide-Cable
(Superseded to 731-1313C)

$11.99

$

Usually ships in 3-6 days

0

35

White Outdoor 731-1320

Chute-Upper
(Superseded to 731-04427B)

$15.99

$

In Stock, only 2 left!

0

36

White Outdoor 731-1545A

Panel-Handle
(Superseded to 731-1545B)

$

$

Not available

37

White Outdoor 732-0145

Spring

$3.99

$

In Stock, only 1 left!

0

38

White Outdoor 732-0193

Spring

$4.49

$

In Stock, Qty 8

0

39

White Outdoor 732-0705

Wire-Control

$11.99

$

Usually ships in 3-6 days

0

40

White Outdoor 732-0746

Spring

$4.49

$

In Stock, Qty 13

0

41

White Outdoor 735-0199A

Bumper

$6.99

$

In Stock, Qty 16

0

42

White Outdoor 736-0105

Washer-Bell

$3.99

$

In Stock, Qty 20+

0

43

White Outdoor 736-0119

Washer-Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

44

White Outdoor 736-0185

Washer-Flat

$3.49

$

In Stock, Qty 17

0

45

White Outdoor 736-0159

Washer

$3.99

$

In Stock, Qty 20+

0

46

White Outdoor 736-0275

Washer-Bell

$6.49

$

Usually ships in 3-6 days

0

47

White Outdoor 736-0264

Washer-Flat

$6.49

$

In Stock, only 1 left!

0

49

White Outdoor 736-0451

Washer-Saddle

$3.99

$

In Stock, only 2 left!

0

50

White Outdoor 736-0506

Washer
(Superseded to 736-0506A)

$

$

Not available

51

White Outdoor 736-0509

Washer

$6.49

$

In Stock, only 1 left!

0

52

White Outdoor 737-0133

Lubricant
(Superseded to 737-0300A)

$32.99

$

In Stock, Qty 20+

0

53

White Outdoor 741-0475

Bushing-Plastic
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

54

White Outdoor 746-0896

Cable-Chute Control
(Superseded to 946-0896)

$52.99

$

In Stock, only 1 left!

0

55

White Outdoor 746-0901

Cable-Chute Control
(Superseded to 946-0901)

$59.99

$

Usually ships in 3-6 days

0

56

White Outdoor 747-0618

Crank-Chute
(Superseded to 747-0737-0637)

$42.99

$

Usually ships in 3-6 days

0

57

White Outdoor 747-0620A

Rod-Shift Upper

$11.99

$

In Stock, only 3 left!

0

58

White Outdoor 747-0621

Rod-Shift Lower

$

$

Not available

59

White Outdoor 747-0877

Rod-Cam

$21.99

$

Usually ships in 3-6 days

0

60

White Outdoor 748-0362

Cam-Handle Lock

$7.49

$

In Stock, only 1 left!

0

61

White Outdoor 748-0363

Pawl-Handle Lock
(Superseded to 948-0363)

$15.99

$

In Stock, only 1 left!

0

62

White Outdoor 749-0951

Handle-Lower
(Superseded to 749-0951A)

Variations

White Outdoor 749-0951-0637

HANDLE-LOWER SNOW - POWDER BLACK (0637)

$62.99

$

Usually ships in 3-6 days

0

White Outdoor 749-0951-0638

HANDLE-LOWER SNOW - MTD/TROY-BILT RED (0638)

$

$

Not available

$62.99

$

Usually ships in 3-6 days

0

63

White Outdoor 749-0954

Handle - R.H.

Variations

White Outdoor 749-0954-0637

HANDLE-RH C STYLE - POWDER BLACK (0637)

$

$

Not available

$

$

64

White Outdoor 749-0955

Handle - L.H.
(Superseded to 749-0955-0637)

Variations

White Outdoor 749-0955-0637

HANDLE-LH C STYLE - POWDER BLACK (0637)

$

$

Not available

$

$

65

White Outdoor 750-0785

Spacer
(Superseded to 950-0785)

$32.99

$

Usually ships in 3-6 days

0

66

White Outdoor 750-0963

Connector
(Superseded to 950-0963)

$32.99

$

In Stock, only 3 left!

0

67

White Outdoor 705-5266

Bracket
(Superseded to 705-5266-0637)

Variations

White Outdoor 705-5266-0637

Chute Crank Bracket - POWDER BLACK (0637)

$14.99

$

Usually ships in 3-6 days

0

$14.99

$

Usually ships in 3-6 days

0

68

White Outdoor 784-5594

Bracket-Cable

Variations

White Outdoor 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$10.99

$

In Stock, only 1 left!

0

White Outdoor 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$10.99

$

In Stock, only 1 left!

0

White Outdoor 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$10.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

69

White Outdoor 784-5604

Handle-Chute Tilt
(Superseded to 784-5604A-0637)

Variations

White Outdoor 784-5604-0637

Chute Handle Bracket - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

70

White Outdoor 784-5619A

Handle-Shift
(Superseded to 753-05395)

Variations

White Outdoor 784-5619A-0637

KIT-SHIFT HANDLE:S - POWDER BLACK (0637)

$

$

Not available

$

$

71

White Outdoor 784-5679

Bracket-Handle Support - L.H.
(Superseded to 784-5679-0637)

Variations

White Outdoor 784-5679-0637

BRACKET-HANDLE-LH - POWDER BLACK (0637)

$7.99

$

Usually ships in 3-6 days

0

$7.99

$

Usually ships in 3-6 days

0

72

White Outdoor 784-5680

Bracket-Handle Support - R.H.
(Superseded to 784-5680-0637)

Variations

White Outdoor 784-5680-0637

BRACKET-HDL SUP-RH - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

73

White Outdoor 784-5681

Bracket-Handle Support - L.H.

Variations

White Outdoor 784-5681-0637

BRACKET-HANDLE SUP - POWDER BLACK (0637)

$8.49

$

Usually ships in 3-6 days

0

$8.49

$

Usually ships in 3-6 days

0

74

White Outdoor 784-5682

Bracket-Handle Support - R.H.
(Superseded to 784-5682-0637)

Variations

White Outdoor 784-5682-0637

Handle Support Bracket - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

75

White Outdoor 735-0234

Grommet Rubber

Note: (For model E733E)

$4.99

$

In Stock, only 3 left!

0

76

White Outdoor 747-0697

Eyebolt-Chute

Note: (For model E733E)

$7.99

$

In Stock, only 1 left!

0

77

White Outdoor 712-0324

Nut-Hex Lock

$3.49

$

In Stock, Qty 20+

0

?78

White Outdoor 736-0329

Washer-Lock
(Superseded to 936-0329)

Note: (For model E733E)

$4.49

$

In Stock, Qty 13

0

79

White Outdoor 736-0463

Washer-Flat

Note: (For model E733E)

$4.49

$

In Stock, only 1 left!

0

80

White Outdoor 710-0805

Hex Screw
(Superseded to 710-0805A)

$3.99

$

In Stock, only 2 left!

0

81

White Outdoor 710-0599

Hex Tap Screw

$3.99

$

In Stock, Qty 20+

0

82

White Outdoor 710-0459A

Hex Screw

$6.99

$

In Stock, Qty 10

0

83

White Outdoor 712-0271

Sems-Hex

$4.49

$

In Stock, Qty 20+

0

84

White Outdoor 736-0242

Washer-Bell

$3.99

$

In Stock, Qty 20+

0

85

White Outdoor 736-0270

Washer-Bell

$3.99

$

In Stock, Qty 15

0
