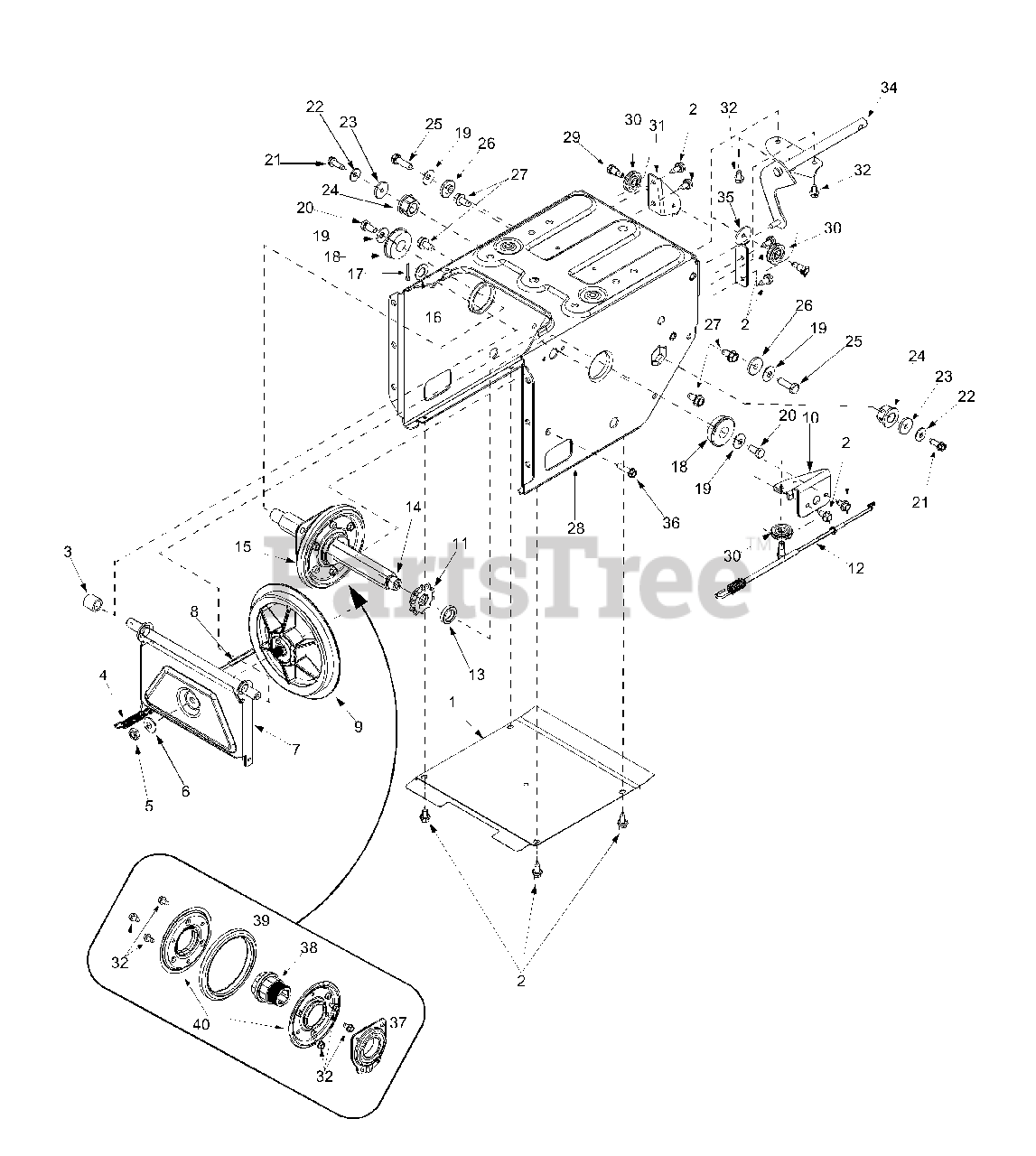

SB-955 T (31AH7Q3G190) - White Outdoor Snow Boss Snow Thrower (2002) Frame Assembly Parts Diagram

Snow Boss Snow Thrower

Frame Assembly Parts Diagram

  • Title

1

White Outdoor 784-5648

Frame Cover
(Superseded to 784-5648A-0637)

Variations

White Outdoor 784-5648-0483

Frame Track Cover - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 784-5648-0638

COVER-FRAME:TRACK - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 784-5648-0662

COVER-FRAME:TRACK - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 784-5648-0687

COVER-FRAME:TRACK - PINE GREEN (0687)

$

$

Not available

White Outdoor 784-5648-0637

COVER-FRAME:TRACK - POWDER BLACK (0637)

$

$

Not available

White Outdoor 784-5648-0650

COVER-FRAME:TRACK - RED METALLIC (0650)

$

$

Not available

White Outdoor 784-5648-0665

COVER-FRAME:TRACK - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 784-5648-0689

COVER-FRAME:TRACK - POLO GREEN (0689)

$

$

Not available

White Outdoor 784-5648-0721

COVER-FRAME:TRACK - SEARS RED (0721)

$

$

Not available

$

$

2

White Outdoor 710-1652

Tap Screw 1/4-20 x .625

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 748-0190

Spacer .508 ID x .75 OD

$5.99

$

In Stock, only 1 left!

0

4

White Outdoor 732-0264

Extension Spring
(Superseded to 932-0264)

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 712-0711

Jam Nut 3/8-24

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 736-0105

Bell Washer .401 ID x .87 OD

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 684-0021

Friction Whl Support Bracket
(Superseded to 984-0021-0637)

Variations

White Outdoor 684-0021-0637

Support Bracket Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

8

White Outdoor 746-0898

Drive Cable 39.88"
(Superseded to 946-0898)

$25.99

$

In Stock, Qty 20+

0

9

White Outdoor 656-0012A

Friction Disc
(Superseded to 956-0012A)

$117.99

$

In Stock, Qty 8

0

10

White Outdoor 784-5689A

Front Support Guide Bracket
(Superseded to 784-5689A-0637)

Variations

White Outdoor 784-5689A-0637

Guide Bracket, Front - POWDER BLACK (0637)

$

$

Not available

White Outdoor 784-5689A-0662

Guide Bracket, Front - OYSTER GRAY (0662)

$

$

Not available

$

$

11

White Outdoor 713-0413

10T Sprocket

$11.99

$

Usually ships in 3-6 days

0

12

White Outdoor 746-0897

Auger Cable 44.75"
(Superseded to 946-0897)

$23.99

$

In Stock, Qty 20+

0

13

White Outdoor 750-0997

Spacer .675 ID x 1" OD
(Superseded to 950-0997)

$6.49

$

In Stock, only 4 left!

0

14

White Outdoor 711-1042

Hex Track Shaft

$139.99

$

In Stock, only 2 left!

0

15

White Outdoor 684-0042C

Friction Wheel Assembly
(Superseded to 984-0042C)

$128.99

$

In Stock, only 4 left!

0

16

White Outdoor 736-0160

Flat Washer .536 ID x .93 OD

$3.99

$

In Stock, only 2 left!

0

17

White Outdoor 714-0474

Cotter Pin

$4.49

$

In Stock, Qty 16

0

18

White Outdoor 741-0563

Ball Bearing
(Superseded to 941-0563)

$33.99

$

In Stock, Qty 20+

0

19

White Outdoor 736-0242

Bell Washer .34 ID x .872 OD

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 710-0538

Hex Cap Screw 5/16-18 x .625

$4.49

$

In Stock, Qty 9

0

21

White Outdoor 710-0857

Tap Screw 1/4-20 x .75
(Superseded to 710-0642)

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 736-0270

Bell Washer .265 ID x .75 OD

$3.99

$

In Stock, Qty 14

0

23

White Outdoor 736-0176

Flat Washer 1/4 ID x .93 OD

$3.99

$

In Stock, Qty 20+

0

24

White Outdoor 741-1111

Hex Flange Bearing

$8.99

$

In Stock, only 2 left!

0

25

White Outdoor 710-0643

Hex Cap Screw 5/16-18 x 1"

$6.49

$

In Stock, Qty 20+

0

26

White Outdoor 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 10

0

27

White Outdoor 710-0604A

Tap Screw 5/16-18 x .625

$3.99

$

In Stock, Qty 20+

0

28

White Outdoor 684-0031

Frame Assembly
(Superseded to 984-0031)

Variations

White Outdoor 684-0031-0483

KIT-REPLACEMENT (6 - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 684-0031-0499

KIT-REPLACEMENT (6 - CUB BEIGE (0499)

$

$

Not available

White Outdoor 684-0031-0637

KIT-REPLACEMENT (6 - POWDER BLACK (0637)

$

$

Not available

White Outdoor 684-0031-0650

FRAME ASSY - RED METALLIC (0650)

$

$

Not available

White Outdoor 684-0031-0662

KIT-REPLACEMENT (6 - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 684-0031-0665

KIT-REPLACEMENT (6 - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 684-0031-0721

KIT-REPLACEMENT (6 - SEARS RED (0721)

$

$

Not available

$114.99

$

Usually ships in 3-6 days

0

29

White Outdoor 738-0924

Hex Screw 1/4-28 x .375
(Superseded to 738-0924A)

$6.49

$

In Stock, Qty 6

0

30

White Outdoor 756-0625

Cable Roller

$8.99

$

In Stock, Qty 20+

0

31

White Outdoor 784-5688

Drive Cable Guide Bracket
(Superseded to 784-5688-0637)

Variations

White Outdoor 784-5688-0637

BRACKET-GUIDE-DRIVE - POWDER BLACK (0637)

$

$

Not available

White Outdoor 784-5688-0662

BRACKET-GUIDE-DRIVE - OYSTER GRAY (0662)

$

$

Not available

$

$

32

White Outdoor 710-0599

Tap Screw 1/4-20 x .5

$3.99

$

In Stock, Qty 20+

0

?33

White Outdoor 784-5590

Shift Frame Bracket

Variations

White Outdoor 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$13.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$13.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$11.99

$

Usually ships in 3-6 days

0

White Outdoor 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

White Outdoor 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

White Outdoor 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$11.99

$

Usually ships in 3-6 days

0

34

White Outdoor 684-0014B

Shift Rod Assembly
(Superseded to 684-0014B-0637)

Variations

White Outdoor 684-0014B-0637

Shift Rod Assembly - POWDER BLACK (0637)

$44.99

$

In Stock, only 1 left!

0

$44.99

$

In Stock, only 1 left!

0

35

White Outdoor 784-5687A

Auger Cable Guide Bracket
(Superseded to 784-5687A-0637)

Variations

White Outdoor 784-5687A-0637

BRACKET-GUIDE-AUGER - POWDER BLACK (0637)

$

$

Not available

$

$

36

White Outdoor 710-0809

Tap Screw 1/4-20 x 1.250

$6.49

$

In Stock, Qty 20+

0

37

White Outdoor 618-0063A

Friction Wheel Bearing

$85.99

$

Usually ships in 3-6 days

0

38

White Outdoor 718-0301A

Friction Wheel Hub
(Superseded to 984-0042C)

$128.99

$

In Stock, only 4 left!

0

39

White Outdoor 735-0243B

Friction Wheel Rubber
(Superseded to 935-0243B)

$17.99

$

In Stock, Qty 20+

0

40

White Outdoor 784-5617A

Friction Plate
(Superseded to 984-0042C)

$128.99

$

In Stock, only 4 left!

0
