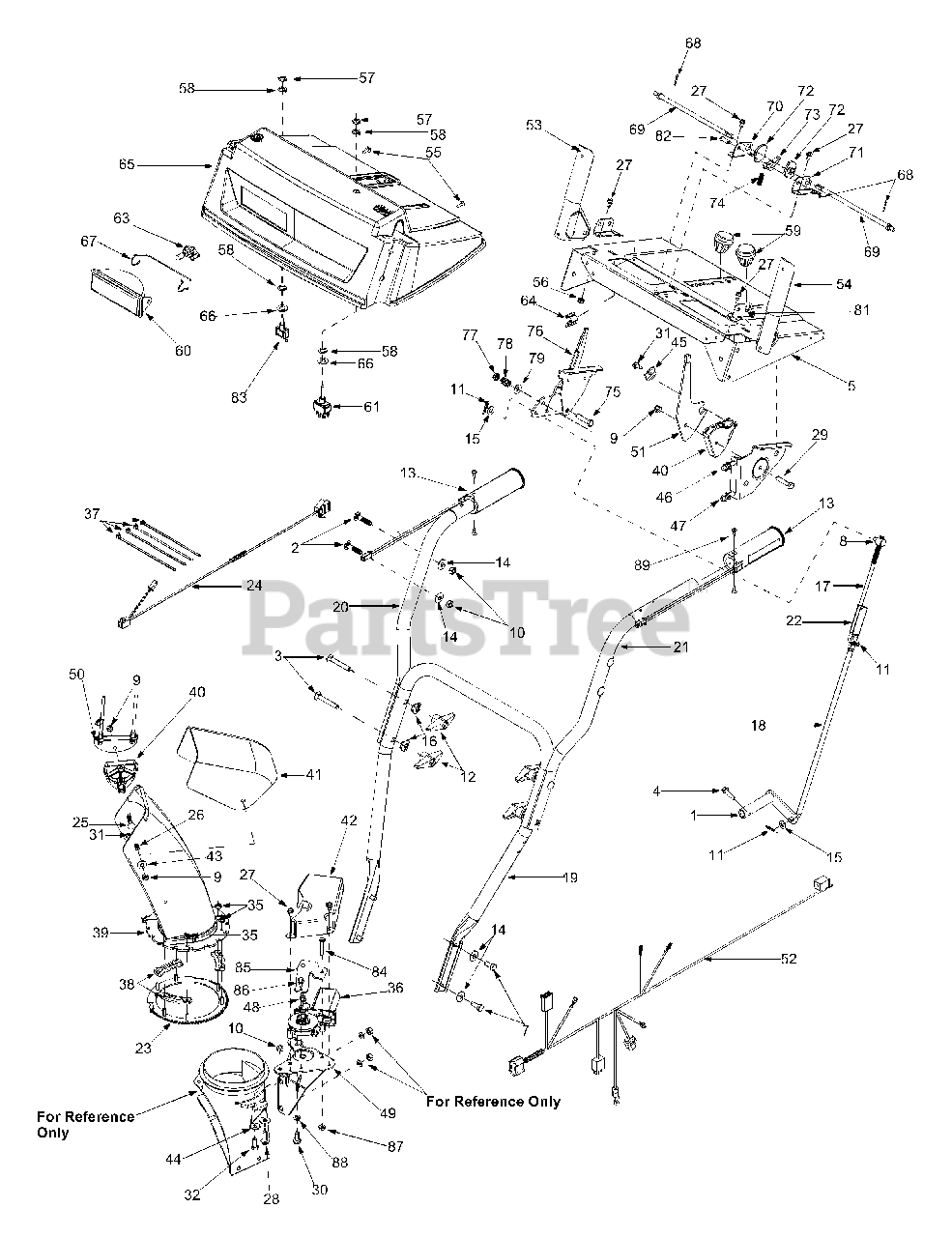

SB-955 T (31AH7Q3G190) - White Outdoor Snow Boss Snow Thrower (2002)

Snow Boss Snow Thrower

SB-955 T (31AH7Q3G190) - White Outdoor Snow Boss Snow Thrower (2002) > Parts Diagrams (6) > General Assembly

  • Title
684-0008A

1

Shift Arm Assembly

Part# 684-0008A

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Shift Arm Assembly

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $41.10

710-0262

2

Carriage Bolt 5/16-18 x 1.5"

Part# 710-0262

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.91

710-0449

3

Carriage Bolt 5/16-18 x 2.25"

Part# 710-0449 (Superseded to 710-0572)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

710-0788

4

TT Screw 1/4-20 x 1"

Part# 710-0788

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.97

684-0102

5

Handle Panel Ass'y w/Tilt

Part# 684-0102

OEM Warranty Repair Part for White Outdoor

Variations

MTD/TROY-BILT RED (0638)

PANEL ASSY:HANDLE

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $116.57

RED METALLIC (0650)

PANEL ASSY:HANDLE

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $116.57

OYSTER GRAY (0662)

PANEL ASSY:HANDLE

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $116.57

YARDMAN GREEN (0665)

SUPPORT HANDLE

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $116.57

POLO GREEN (0689)

SUPPORT HANDLE

Part# POLO GREEN (0689)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $116.57

SEARS RED (0721)

PANEL ASSY:HANDLE

Part# SEARS RED (0721)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $116.57

710-0890A

?6

Shear Bolt 5/16-18 x 1.5"

Part# 710-0890A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $1.25

710-1880

7

Hex Screw 5/16-18 x .75"

Part# 710-1880

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.23

711-0677

8

Ferrule

Part# 711-0677 (Superseded to 911-0677)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $12.50

712-3068

9

Hex Lock Nut 5/16-18

Part# 712-3068 (Superseded to 912-3009)

OEM Warranty Repair Part for White Outdoor

Not available

712-3010

10

Hex Nut 5/16-18

Part# 712-3010 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Not available

714-0104

11

Cotter Pin

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

720-0284

12

Handle Knob

Part# 720-0284 (Superseded to 920-0284)

OEM Warranty Repair Part for White Outdoor

Not available

725-1757

13

Heated Grip

Part# 725-1757

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $78.21

736-0242

14

Belleville Washer

Part# 736-0242

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

736-0275

15

Flat Washer

Part# 736-0275 (Superseded to 936-0275)

OEM Warranty Repair Part for White Outdoor

Not available

736-0451

16

Saddle Washer

Part# 736-0451 (Superseded to 936-0451)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

747-0620A

17

Shift Rod: Upper

Part# 747-0620A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $10.86

747-0621

18

Shift Rod: Lower

Part# 747-0621

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $31.07

749-0951

19

Lower Handle

Part# 749-0951

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

HANDLE-LOWER SNOW

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $58.10

MTD/TROY-BILT RED (0638)

HANDLE-LOWER SNOW

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

749-0952A

20

Upper Handle: L Style RH

Part# 749-0952A

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

HANDLE-UPPER-RH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

HANDLE-UPPER-RH

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

HANDLE-UPPER-RH

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

749-0953A

21

Upper Handle: L Style LH

Part# 749-0953A

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

HANDLE-UPPER-LH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

HANDLE-UPPER-LH

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

HANDLE-UPPER-LH

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

750-0963

22

Connector: Shift Rod

Part# 750-0963 (Superseded to 950-0963)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $24.44

618-0419

23

Gear Assembly: Ring

Part# 618-0419

OEM Warranty Repair Part for White Outdoor

Not available

629-0937

24

Electric Harness: Lower

Part# 629-0937

OEM Warranty Repair Part for White Outdoor

Not available

710-0262

25

Carriage Bolt: 5/16-18 x 1.5"

Part# 710-0262

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.91

710-0451

26

Carriage Bolt: 5.16-18 x .750"

Part# 710-0451

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.84

710-0599

27

TT Screw: 1/4-20 x 0.5"

Part# 710-0599

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

710-0602

28

TT Screw: 5/16-18 x 1"

Part# 710-0602

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.21

710-0805

29

Hex Screw: 5/16-18 x 1.5"

Part# 710-0805 (Superseded to 710-0805A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

710-0650

30

Hex Washer Screw 5/16-18 x .875

Part# 710-0650

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.95

710-0896

31

Hex Screw AB:1/4-14 x 0.625"

Part# 710-0896

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

710-3008

32

Hex Screw: 5/16-18 x .75"

Part# 710-3008

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.99

712-3027

35

Hex Flange Lock Nut

Part# 712-3027 (Superseded to 912-3027)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.05

724-0249B

36

Electric Motor: Chute Crank

Part# 724-0249B (Superseded to 953-0912A)

OEM Warranty Repair Part for White Outdoor

Not available

725-0157

37

Cable Tie

Part# 725-0157

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.74

731-0851A

38

Chute Flange Keeper

Part# 731-0851A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

731-1300A

39

Lower Chute

Part# 731-1300A (Superseded to 731-1300E)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $41.76

731-1313C

40

Cable Guide: Chute Tilt

Part# 731-1313C

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.39

731-1320

41

Upper Chute

Part# 731-1320 (Superseded to 731-04427A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $13.42

731-2611

42

Motor Cover: Chute Rotation

Part# 731-2611

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $46.02

736-0159

43

5/16 Washer

Part# 736-0159 (Superseded to 936-0159)

OEM Warranty Repair Part for White Outdoor

Not available

736-0242

44

Belleville Washer

Part# 736-0242

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

736-0506

45

Special Washer

Part# 736-0506 (Superseded to 736-0506A)

OEM Warranty Repair Part for White Outdoor

Not available

746-0896

46

Control Cable

Part# 746-0896 (Superseded to 946-0896)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $39.98

746-0901

47

Control Cable

Part# 746-0901 (Superseded to 946-0901)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $45.10

741-1140

48

Bushing

Part# 741-1140

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.40

784-5745

49

Motor Bracket

Part# 784-5745

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-MOTOR

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

784-5594

50

Cable Bracket

Part# 784-5594

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $8.15

Variations

OLD CUB YELLOW (0498)

Cable Bracket

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.15

POWDER BLACK (0637)

Cable Bracket

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.15

CUB YELLOW-99 (0716)

Cable Bracket

Part# CUB YELLOW-99 (0716)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.15

784-5604

51

Handle: Chute Tilt

Part# 784-5604

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Chute Handle Bracket

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $17.90

629-0936A

52

Harness Assembly: Upper

Part# 629-0936A

OEM Warranty Repair Part for White Outdoor

Not available

684-0036A

53

Handle Assembly RH

Part# 684-0036A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $33.74

684-0037B

54

Handle Assembly LH

Part# 684-0037B

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $31.29

710-1003

55

Special Hex Screw

Part# 710-1003 (Superseded to 710-04669)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.39

712-0271

56

Hex Sems Nut: 1/4-20

Part# 712-0271

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.03

712-0693

57

Hex Nut

Part# 712-0693

OEM Warranty Repair Part for White Outdoor

Not available

716-0398

58

Lock Ring: Toggle Switch

Part# 716-0398

OEM Warranty Repair Part for White Outdoor

Not available

720-0232

59

Shift Knob

Part# 720-0232 (Superseded to 920-0232)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.29

725-1672

60

Lamp Housing

Part# 725-1672 (Superseded to 925-1672)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $62.87

725-1755

61

Toggle Switch: Double Throw

Part# 725-1755 (Superseded to 925-1755)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $82.45

725-1759

63

Halogen Lamp: 50W, 12V

Part# 725-1759 (Superseded to 925-1759)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $37.97

726-0152

64

Mounting Clamp

Part# 726-0152

OEM Warranty Repair Part for White Outdoor

Not available

731-2276

65

Handle Panel

Part# 731-2276

OEM Warranty Repair Part for White Outdoor

Not available

736-0226

66

Flat Washer

Part# 736-0226 (Superseded to 936-0226)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.88

747-1136

67

Headlight Retainer

Part# 747-1136

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $8.29

714-0104

68

Cotter Pin .072 x 1.12

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

747-0877

69

Cam Rod

Part# 747-0877

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $15.98

784-5680

70

RH Handle Support Bracket

Part# 784-5680

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-HDL SUP-RH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $8.71

784-5679

71

LH Handle Support Bracket

Part# 784-5679

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-HANDLE-LH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $6.48

748-0362

72

Cam Handle Lock

Part# 748-0362

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.82

748-0363

73

Handle Lock Pawl

Part# 748-0363 (Superseded to 948-0363)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $12.42

732-0145

74

Compression Spring: .36 x 1.0

Part# 732-0145

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

710-0459A

75

Hex Cap Screw: 3/8-24 x 1.5

Part# 710-0459A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.15

784-5619A

76

Shift Handle

Part# 784-5619A

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

KIT-SHIFT HANDLE:S

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

712-0116

77

Jam Nut, 3/8-24

Part# 712-0116 (Superseded to 912-0116)

OEM Warranty Repair Part for White Outdoor

Not available

732-0193

78

Comp. Spring: .39 x .6 x .88

Part# 732-0193

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.31

736-0105

79

Bell Washer

Part# 736-0105

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

784-5682

?80

RH Handle Support Bracket

Part# 784-5682

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Handle Support Bracket

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $21.39

784-5681

81

LH Handle Support Bracket

Part# 784-5681

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $6.82

Variations

POWDER BLACK (0637)

BRACKET-HANDLE SUP

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

711-0653

82

Clevis Pin

Part# 711-0653

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.69

725-1756

83

Toggle Switch: Single Throw

Part# 725-1756 (Superseded to 925-1756)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $25.92

710-0606

84

Hex Cap Screw 1/4-20 x 1.5

Part# 710-0606

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.74

784-0411

85

Top Support Motor Bracket

Part# 784-0411

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-MOTOR

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $8.03

710-1652

86

Hex Washer Screw 1/4-20 1.5

Part# 710-1652

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

712-3027

87

Hex Flange Nut 1/4-20

Part# 712-3027 (Superseded to 912-3027)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.05

736-0119

88

Lock Washer 5/16

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.41

710-0837

89

C-Sunk Screw #10-16 x .625"

Part# 710-0837

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.08
