SB800 A - Honda 42" Snow Blower Attachment, Made in USA GEARBOX ASSEMBLY (SB800) (TO SERIAL 1000400) Parts Diagram

42" Snow Blower Attachment, Made in USA

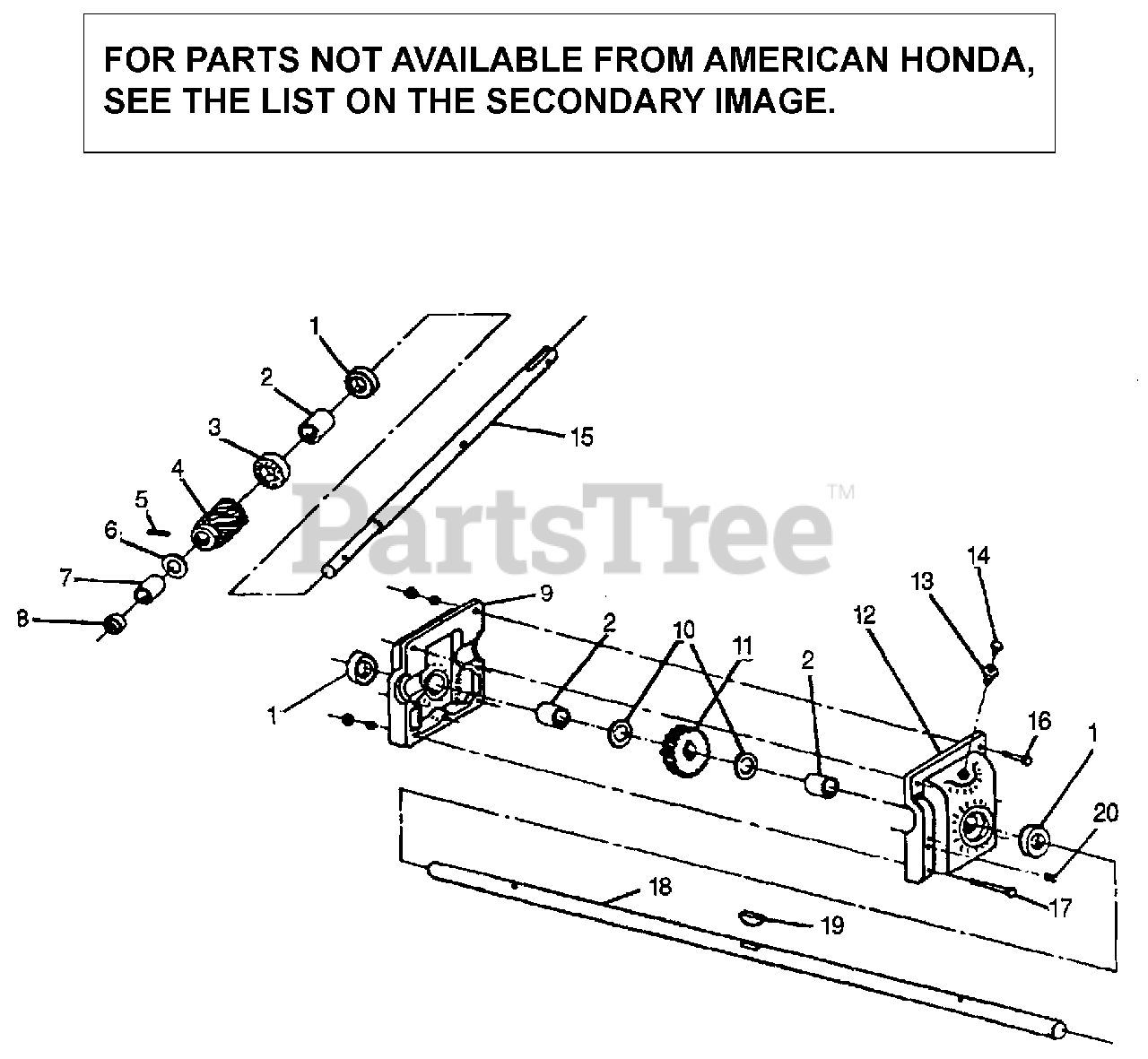

GEARBOX ASSEMBLY (SB800) (TO SERIAL 1000400) Parts Diagram

  • Title

1

Honda 72998-0013

OIL SEAL (GR 9818)

Note: Use up to Frame SN 1000400.

$13.99

$

Usually ships in 3-6 days

0

2

Honda 72998-0011

BUSHING (1X1-1/4")

Note: Use up to Frame SN 1000400.

$7.49

$

Usually ships in 3-6 days

0

3

Honda 72998-0005

BEARING (SKF 51105)

Note: Use up to Frame SN 1000400.

$47.99

$

Usually ships in 3-6 days

0

4

Honda 72998-0016

WORM, RH ROTATION

Note: Use up to Frame SN 1000400.

$

$

Not available

5

Honda 72998-0053

PIN (1/4X1-1/2")

Note: Use up to Frame SN 1000400.

$16.99

$

Usually ships in 3-6 days

0

6

Honda 72998-0050

WASHER (1-3/8")

Note: Use up to Frame SN 1000400.

$5.49

$

Usually ships in 3-6 days

0

7

Honda 72998-0012

BUSHING (7/8X1-1/8")

Note: Use up to Frame SN 1000400.

$13.99

$

Usually ships in 3-6 days

0

8

Honda 72998-0014

CAP, INPUT

Note: Use up to Frame SN 1000400.

$15.99

$

Usually ships in 3-6 days

0

9

Honda 72998-0052

COVER, R.

Note: Use up to Frame SN 1000400.

$130.99

$

Usually ships in 3-6 days

0

10

Honda 72998-0006

WASHER (1-1/2")

Note: Use up to Frame SN 1000400.

$9.49

$

Usually ships in 3-6 days

0

11

Honda 72998-0017

GEAR, BRASS CLOCKWISE (#65)

Note: Use up to Frame SN 1000400.

$308.99

$

Usually ships in 3-6 days

0

12

Honda 72998-0051

COVER, L.

Note: Use up to Frame SN 1000400.

$160.99

$

Usually ships in 3-6 days

0

13

Honda 72998-0049

COUPLING (3/8X1/8")

Note: Use up to Frame SN 1000400.

$2.99

$

Usually ships in 3-6 days

0

14

Honda 72998-0043

BREATHER (1/8" NPT)

Note: Use up to Frame SN 1000400.

$30.99

$

Usually ships in 3-6 days

0

15

Honda 72998-0018

SHAFT, INPUT

Note: Use up to Frame SN 1000400.

$210.99

$

Usually ships in 3-6 days

0

18

Honda 72998-0058

SHAFT

Note: Use up to Frame SN 1000400.

$179.99

$

In Stock, only 1 left!

0

19

Honda 72998-0015

KEY, WOODRUFF

Note: Use up to Frame SN 1000400.

$2.49

$

Usually ships in 3-6 days

0

20

Honda 72998-0054

PLUG, LEVEL NPT (1/8")

Note: Use up to Frame SN 1000400.

$0.99

$

Usually ships in 3-6 days

0
