SBV-SBV-2314A - Tecumseh Short Block Engine Parts List Parts Diagram

Short Block

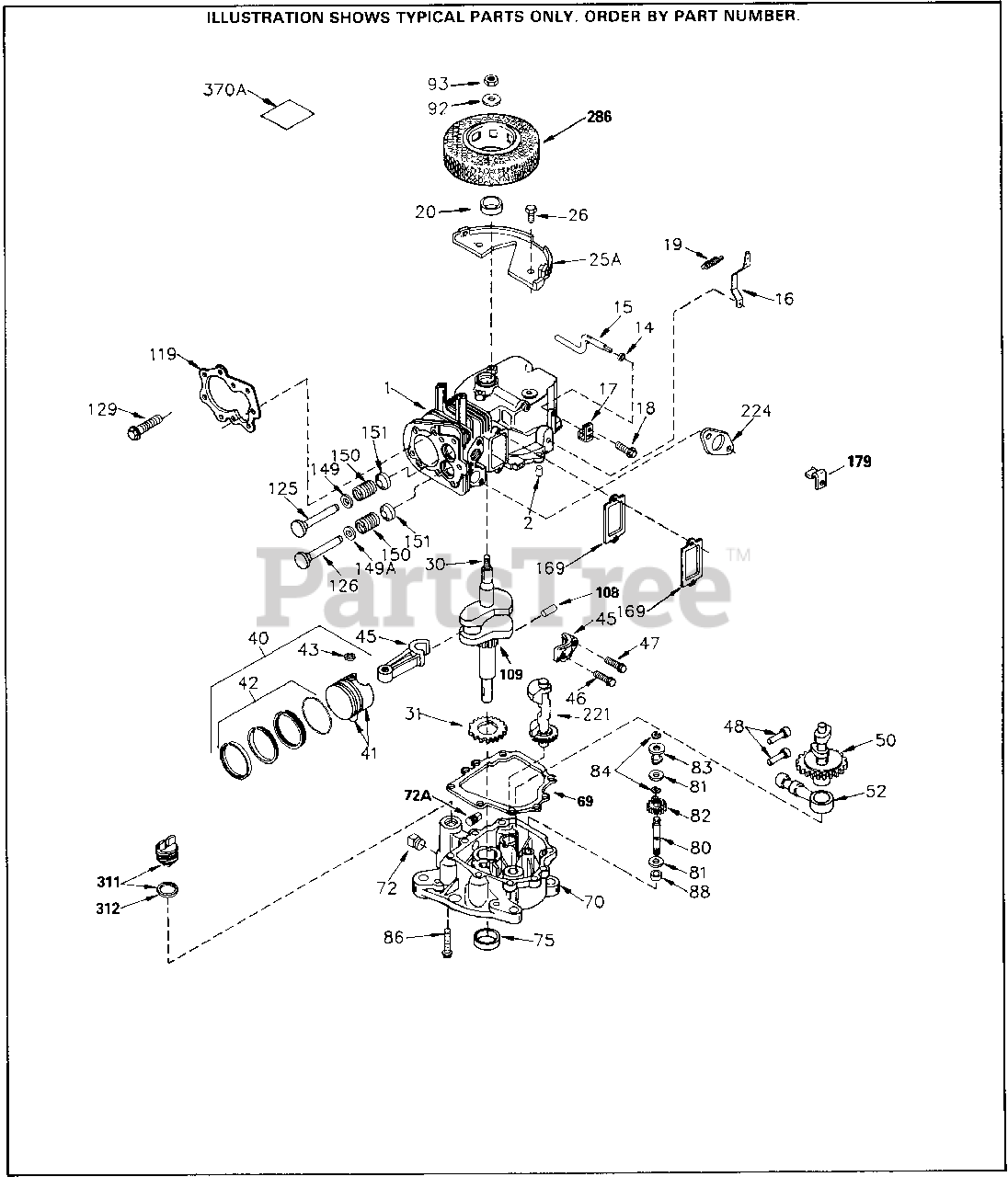

Engine Parts List Parts Diagram

  • Title

1

Tecumseh 35745

"Cylinder (CI liner)(Incl. 2 & 20)

$

$

Not available

2

Tecumseh 27652

Dowel Pin

$2.49

$

In Stock, only 1 left!

0

14

Tecumseh 28277

Flat Washer

$1.99

$

In Stock, only 3 left!

0

15

Tecumseh 35082

Governor Rod

$1.99

$

Usually ships in 3-12 days

0

16

Tecumseh 32651

Governor Lever

$

$

Not available

17

Tecumseh 31335

Governor Lever Clamp

$1.99

$

In Stock, Qty 5

0

18

Tecumseh 651018

Screw, Torx T-15, 8-32 x 19/64"

$1.99

$

In Stock, Qty 18

0

19

Tecumseh 34043

Extension Spring

$1.99

$

In Stock, only 3 left!

0

20

Tecumseh 35319

Oil Seal

$4.99

$

In Stock, Qty 10

0

30

Tecumseh 35746B

Crankshaft

$177.99

$

Usually ships in 3-12 days

0

31

Tecumseh 35327

Counterbalance Gear

$18.99

$

Usually ships in 3-12 days

0

40

Tecumseh 34552

Piston, Pin & Ring Set (Std.) 3-1/8"B ore
(Superseded to 40049)

$

$

Not available

40

Tecumseh 34553

Piston, Pin & Ring Set (.010" OS)
(Superseded to 40012)

$

$

Not available

40

Tecumseh 34554

Piston, Pin & Ring Set (.020" OS)

$87.99

$

Usually ships in 3-12 days

0

41

Tecumseh 34329A

Piston & Pin Ass'y. (Std.)(Incl. 43) 3-1/8"
(Superseded to 40049)

$

$

Not available

41

Tecumseh 34330A

Piston & Pin Ass'y. (.010" OS) Incl. 43
(Superseded to 40012)

$

$

Not available

41

Tecumseh 34331A

Piston & Pin Ass'y. (.020" OS) Incl. 43

$

$

Not available

42

Tecumseh 34332

Ring Set (Std.) (3-1/8" Bore)
(Superseded to 40049)

$

$

Not available

42

Tecumseh 34333

Ring Set (.010" OS)

$

$

Not available

42

Tecumseh 34334

Ring Set (.020" OS)

$38.99

$

In Stock, only 1 left!

0

43

Tecumseh 27888

Piston Pin Retaining Ring

$1.99

$

Usually ships in 3-12 days

0

45

Tecumseh 36897

Connecting Rod Ass'y. (Incl. 47)
(Superseded to 36897A)

$48.99

$

In Stock, only 1 left!

0

47

Tecumseh 651033

Connecting Rod Bolt
(Superseded to 651033A)

$

$

Not available

48

Tecumseh 34034

Valve Lifter
(Superseded to 34034A)

$10.99

$

In Stock, only 1 left!

0

50

Tecumseh 35381

Camshaft (MCR)

$86.99

$

Usually ships in 3-12 days

0

51

Tecumseh 35747A

Couterbalance Weight

$65.22

$

In Stock, only 1 left!

0

52

Tecumseh 31356

Oil Pump Ass'y.

$12.99

$

Usually ships in 3-12 days

0

69

Tecumseh 35317

Mounting Flange Gasket

$4.99

$

In Stock, only 2 left!

0

70

Tecumseh 35711A

Mounting Flange (Incl. 72, 72A, 75 & 80) 80)

$

$

Not available

72A

Tecumseh 28483

Oil Drain Plug (3/8-18)

$1.99

$

Usually ships in 3-12 days

0

72

Tecumseh 31927

Oil Drain Plug (3/8-18 Sq. hd.)

$1.99

$

Usually ships in 3-12 days

0

75

Tecumseh 35319

Oil Seal

$4.99

$

In Stock, Qty 10

0

80

Tecumseh 35783

Governor Shaft

$1.99

$

In Stock, only 1 left!

0

81

Tecumseh 30590A

Flat Washer

$1.99

$

In Stock, Qty 9

0

82

Tecumseh 35378

Governor Gear Ass'y. (Incl. 81)

$3.99

$

In Stock, only 3 left!

0

83

Tecumseh 30588A

Governor Spool

$1.99

$

In Stock, Qty 12

0

84

Tecumseh 29193

Retaining Ring

$1.99

$

In Stock, Qty 10

0

86

Tecumseh 650833

Screw, 1/4-20 x 1-3/16"

$1.99

$

Usually ships in 3-12 days

0

88

Tecumseh 31707A

Governor Gear Spacer (Incl. 81)

$1.99

$

In Stock, only 3 left!

0

125

Tecumseh 27878A

Exhaust Valve (Std.)(Incl. 151)

$23.99

$

In Stock, only 1 left!

0

125

Tecumseh 27880A

Exhaust Valve (1/32" OS) (Incl. 151)

$

$

Not available

126

Tecumseh 34035

Intake Valve (Std.) (Incl. 151)

$15.99

$

In Stock, only 1 left!

0

126

Tecumseh 34036

Intake Valve (1/32" OS) (Incl. 151)

$

$

Not available

149A

Tecumseh 35862

Intake Valve Seal Assy.

$9.49

$

In Stock, only 1 left!

0

149

Tecumseh 27882

Valve Spring Cap

$1.99

$

In Stock, Qty 5

0

150

Tecumseh 27881

Valve Spring

$3.99

$

In Stock, only 3 left!

0

151

Tecumseh 32581

Lower Valve Spring Cap

$6.49

$

In Stock, Qty 13

0

169

Tecumseh 27896A

Valve Cover Gasket

$1.49

$

In Stock, Qty 20+

0

224

Tecumseh 27915A

Intake Pipe Gasket

$5.99

$

In Stock, Qty 20+

0

311

Tecumseh 27625

Oil Fill Plug (Incl. 312) also availa ble in Packaged Part #740079

$2.49

$

In Stock, Qty 14

0

370G

Tecumseh 36261

Lubrication Decal

$

$

Not available

370A

Tecumseh 34028

Identification Decal

$

$

Not available
