SBV-SBV-460A - Tecumseh Short Block Engine Parts List Parts Diagram

Short Block

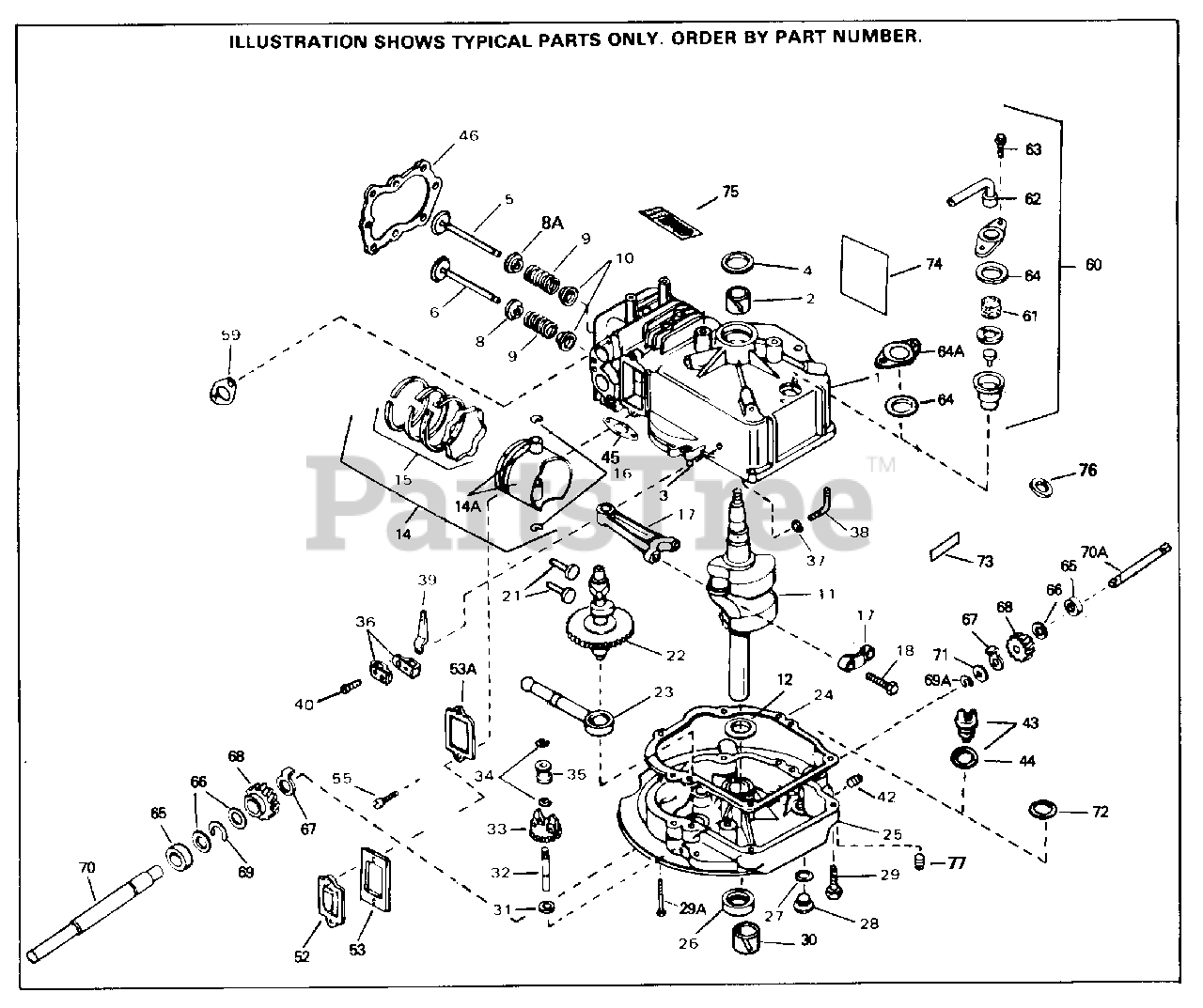

Engine Parts List Parts Diagram

  • Title
1

Tecumseh 35001

"Cylinder (Incl. 2, 3, 4 & 76) 2-5/8"B ore
(Superseded to 36486A)

$122.99

$

Usually ships in 3-12 days

0

2

Tecumseh 34836

Bushing, Cylinder

$16.99

$

In Stock, only 1 left!

0

3

Tecumseh 26727

Dowel Pin

$1.99

$

In Stock, Qty 5

0

4

Tecumseh 32600

Seal, Oil

$

$

Not available

5

Tecumseh 29314B

Intake Valve (Std.) (Incl. 151)
(Superseded to 29314C)

$5.99

$

Usually ships in 3-12 days

0

5

Tecumseh 29315C

Exhaust Valve (1/32" OS) (Incl. 151)

$

$

Not available

6

Tecumseh 34776

Exhaust Valve (Std.) (Incl. 10)
(Superseded to 29313C)

$

$

Not available

6

Tecumseh 34777

Exhaust Valve (1/32" OS) (Incl. 10)
(Superseded to 29315C)

$

$

Not available

8A

Tecumseh 31671

Upper Valve Spring Cap Early Prod. On ly

$1.49

$

In Stock, only 2 left!

0

8

Tecumseh 31671

Upper Valve Spring Cap Early Prod. On ly

$1.49

$

In Stock, only 2 left!

0

9

Tecumseh 31672

Spring, Valve

$1.99

$

In Stock, Qty 19

0

10

Tecumseh 31673

Cap, Lower valve spring

$1.99

$

In Stock, Qty 6

0

11

Crankshaft

$

$

Not available

11

Tecumseh 34575

Crankshaft

$

$

Not available

12

Tecumseh 32323

Washer, Thrust

$8.49

$

In Stock, only 1 left!

0

14

Tecumseh 34851

Piston, Pin & Ring Set (Std.) 2-5/8"B ore
(Superseded to 35544A)

$60.99

$

In Stock, only 4 left!

0

14

Tecumseh 34852

Piston, Pin & Ring Set (.010" OS)
(Superseded to 35545A)

$

$

Not available

14

Tecumseh 34853

Piston, Pin & Ring Set (.020" OS)
(Superseded to 35546)

$

$

Not available

14A

Tecumseh 32603B

Piston & Pin Ass'y. (Incl. 16)(Std.) 2-5/8"
(Superseded to 35544A)

$60.99

$

In Stock, only 4 left!

0

14A

Tecumseh 32604B

Piston & Pin Ass'y. (Incl. 16) .010"O S
(Superseded to 35545A)

$

$

Not available

14A

Tecumseh 32605B

Piston & Pin Ass'y. (Incl. 16) .020"O S
(Superseded to 35546)

$

$

Not available

15

Tecumseh 34854

Ring Set (Std.) (2-5/8" Bore)

$

$

Not available

15

Tecumseh 34855

Ring Set (.010" OS)

$

$

Not available

15

Tecumseh 34856

Ring Set (.020" OS)

$

$

Not available

16

Tecumseh 20381

Piston Pin Retaining Ring

$1.99

$

In Stock, Qty 7

0

17

Tecumseh 32875

Rod Assy., Connecting (Incl. 18)
(Superseded to 32875A)

$47.99

$

In Stock, only 1 left!

0

18

Tecumseh 32610A

Bolt, Connecting rod

$1.99

$

In Stock, Qty 6

0

21

Tecumseh 27241

Valve Lifter

$5.49

$

In Stock, only 4 left!

0

22

Tecumseh 33553

Camshaft (MCR)
(Superseded to 35992)

$72.99

$

Usually ships in 3-12 days

0

23

Tecumseh 29914

Oil Pump Ass'y.

$9.49

$

In Stock, only 1 left!

0

24

Tecumseh 35261

Mounting Flange Gasket
(Superseded to 37609)

$2.99

$

In Stock, Qty 20+

0

25

Tecumseh 34790B

Mounting Flange Ass'y. Incl. 26, 28& 32
(Superseded to 34790E)

$

$

Not available

26

Tecumseh 27897

Oil Seal

$8.49

$

In Stock, Qty 20+

0

28

Tecumseh 27244

Plug, Oil drain
(Superseded to 36083)

$6.99

$

In Stock, Qty 10

0

29

Tecumseh 650488

Screw, 1/4-20 x 1-1/4"

$1.99

$

In Stock, only 4 left!

0

29A

Tecumseh 650488

Screw, 1/4-20 x 1-1/4"

$1.99

$

In Stock, only 4 left!

0

30

Tecumseh 34837

Bushing, Flange

$12.99

$

Usually ships in 3-12 days

0

31

Tecumseh 30590A

Washer, Flat

$1.99

$

In Stock, Qty 10

0

32

Tecumseh 30574

Shaft, Mechanical governor
(Superseded to 30574A)

$7.49

$

In Stock, Qty 6

0

33

Tecumseh 30591

Gear Assy., Governor (Incl. 31)

$13.99

$

In Stock, Qty 13

0

34

Tecumseh 29193

Retaining Ring

$1.99

$

In Stock, Qty 13

0

35

Tecumseh 30588A

Spool, Governor

$1.99

$

In Stock, Qty 14

0

36

Tecumseh 31335

Clamp, Governor lever

$1.99

$

In Stock, only 4 left!

0

37

Tecumseh 28277

Flat Washer

$1.99

$

In Stock, only 4 left!

0

38

Tecumseh 30589

Rod, Governor (Incl. 37)

$5.49

$

Usually ships in 3-12 days

0

42

Tecumseh 9556

Plug, Pipe
(Superseded to 28534)

$1.99

$

In Stock, only 4 left!

0

45

Tecumseh 30081A

Exhaust Gasket

$1.49

$

In Stock, only 1 left!

0

46

Tecumseh 33015A

Gasket, Head

$11.99

$

In Stock, Qty 6

0

52

Tecumseh 32755

Cover, Valve spring box

$5.49

$

Usually ships in 3-12 days

0

53

Tecumseh 27234A

Valve Cover Gasket

$5.99

$

In Stock, Qty 12

0

55

Tecumseh 650128

Screw, 10-24 x 1/2"

$5.49

$

In Stock, only 3 left!

0

59

Tecumseh 34690A

Gasket, Intake pipe

$4.49

$

In Stock, Qty 12

0

64

Tecumseh 33735

Gasket, Breather

$1.99

$

Usually ships in 3-12 days

0

74

Tecumseh 34346

Decal, Instruction
(Superseded to 36261)

$

$

Not available

75

Tecumseh 34686

Decal, Name
(Superseded to 34686A)

$

$

Not available

76

Tecumseh 650841

Washer, S.E. brake

$

$

Not available
