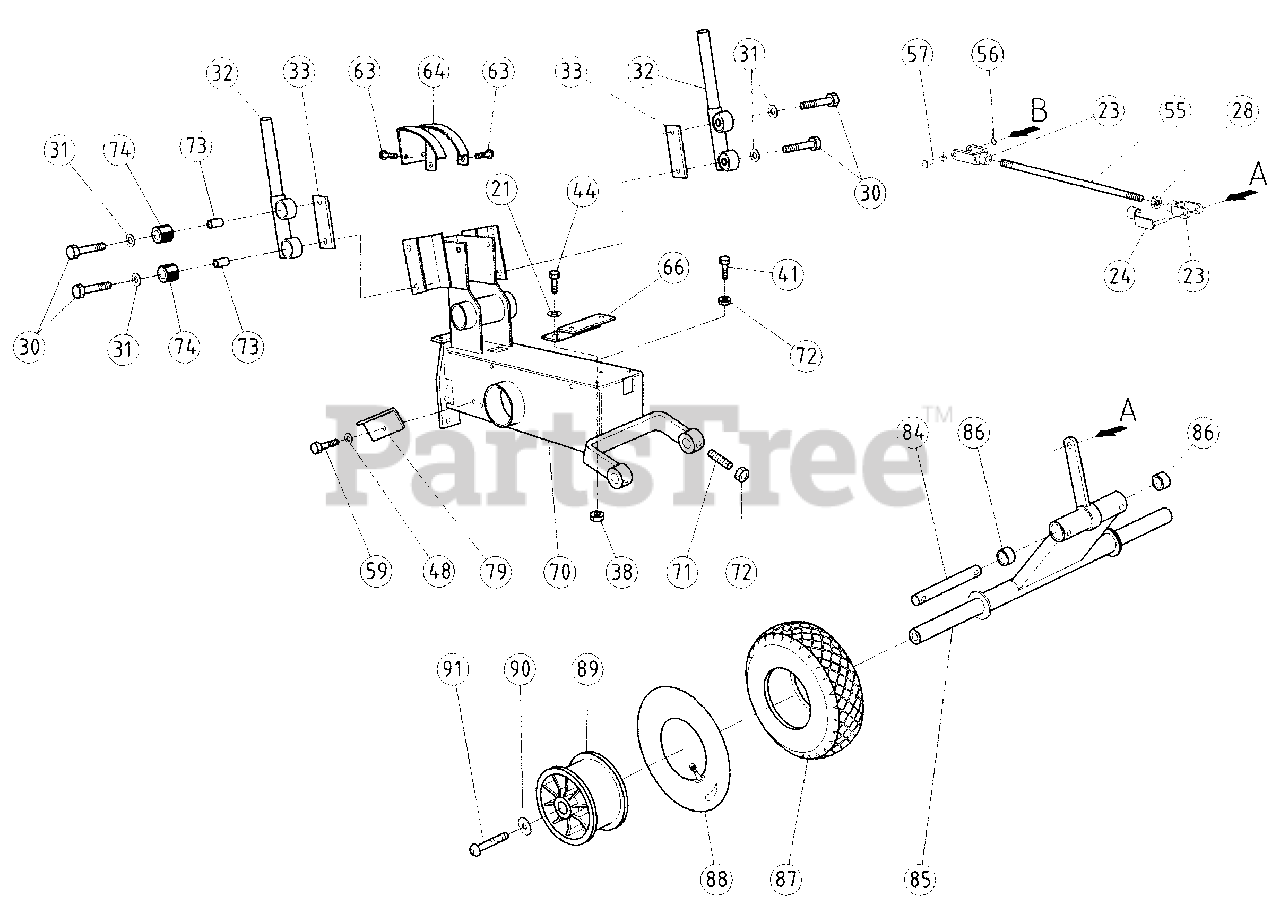

SC 121 H - Billy Goat 12" Sod Cutter Depth Parts Diagram

12" Sod Cutter

Depth Parts Diagram

  • Title

21

Billy Goat 370110

Washer Flat M8

$0.99

$

Usually ships in 2-11 days

0

23

Billy Goat 370259

Fork 03216055

$17.99

$

Usually ships in 2-11 days

0

24

Billy Goat 370260

Clip Fork

$5.99

$

Usually ships in 2-11 days

0

28

Billy Goat 370146

Nut M10

$0.99

$

Usually ships in 2-11 days

0

30

Billy Goat 370147

Screwcap M10x50 P.F.

$1.49

$

Usually ships in 2-11 days

0

31

Billy Goat 370145

Washer wave M10

$0.99

$

Usually ships in 2-11 days

0

32

Billy Goat 370228

Support Handle

$175.99

$

Usually ships in 2-11 days

0

33

Billy Goat 370247

Nut Special for handle support

$28.99

$

Usually ships in 2-11 days

0

38

Billy Goat 370125

Nut Lock M8

$0.99

$

Usually ships in 2-11 days

0

41

Billy Goat 370118

Screwcap M8x25

$1.49

$

Usually ships in 2-11 days

0

44

Billy Goat 370130

Screwcap M8x20

$0.99

$

Usually ships in 2-11 days

0

48

Billy Goat 370112

Washer Flat M6

$0.99

$

Usually ships in 2-11 days

0

55

Billy Goat 370236

Connection tie-rod

$36.99

$

Usually ships in 2-11 days

0

56

Billy Goat 370151

Pin Roll M30x2.5

$4.49

$

Usually ships in 2-11 days

0

57

Billy Goat 370258

Pivot Ø 10

$6.99

$

Usually ships in 2-11 days

0

59

Billy Goat 370134

Screwcap M6x10

$0.99

$

Usually ships in 2-11 days

0

63

Billy Goat 370111

Screw Button Head M8x12

$1.49

$

Usually ships in 2-11 days

0

64

Billy Goat 370424

Quadrant Tooth Height

$92.99

$

Usually ships in 2-11 days

0

66

Billy Goat 370251

Support Front guard

$37.99

$

Usually ships in 2-11 days

0

70

Billy Goat 370215

Body Sod Cutter

$850.99

$

Usually ships in 2-11 days

0

71

Billy Goat 370153

Dowel M8x16

$1.49

$

Usually ships in 2-11 days

0

72

Billy Goat 370102

Nut 8 H 6.5

$0.99

$

Usually ships in 2-11 days

0

73

Billy Goat 370284

Dampener Vibration Internal Tube 12x10x28

$4.49

$

Usually ships in 2-11 days

0

74

Billy Goat 370285

Dampener Vibration Handle Support 30x12x28

$49.99

$

Usually ships in 2-11 days

0

79

Billy Goat 370239

Block Sliding Belt No. 1

$13.99

$

Usually ships in 2-11 days

0

84

Billy Goat 370271

Pivot Axle Front

$28.99

$

Usually ships in 2-11 days

0

85

Billy Goat 370218

Axle Front Complete

$337.99

$

Usually ships in 2-11 days

0

86

Billy Goat 370276

Bushing Self-Lubricating 16x20x22

$8.99

$

Usually ships in 2-11 days

0

87

Billy Goat 370206

Tire Front Wheel T090700

$29.99

$

Usually ships in 2-11 days

0

88

Billy Goat 370204

Tube Inner Front Wheel

$26.99

$

Usually ships in 2-11 days

0

89

Billy Goat 370401

Steel Rim Front wheel
(Superseded to 370401-S)

$195.99

$

Usually ships in 2-11 days

0

90

Billy Goat 370119

Washer Flat M8x32

$0.99

$

Usually ships in 2-11 days

0

91

Billy Goat 370126

Screwcap M8x16

$0.99

$

Usually ships in 2-11 days

0

116

Billy Goat 370402

Retainer Cap

$6.99

$

Usually ships in 2-11 days

0

117

Billy Goat 370403

Roller Cage Bearing

$8.99

$

Usually ships in 2-11 days

0
