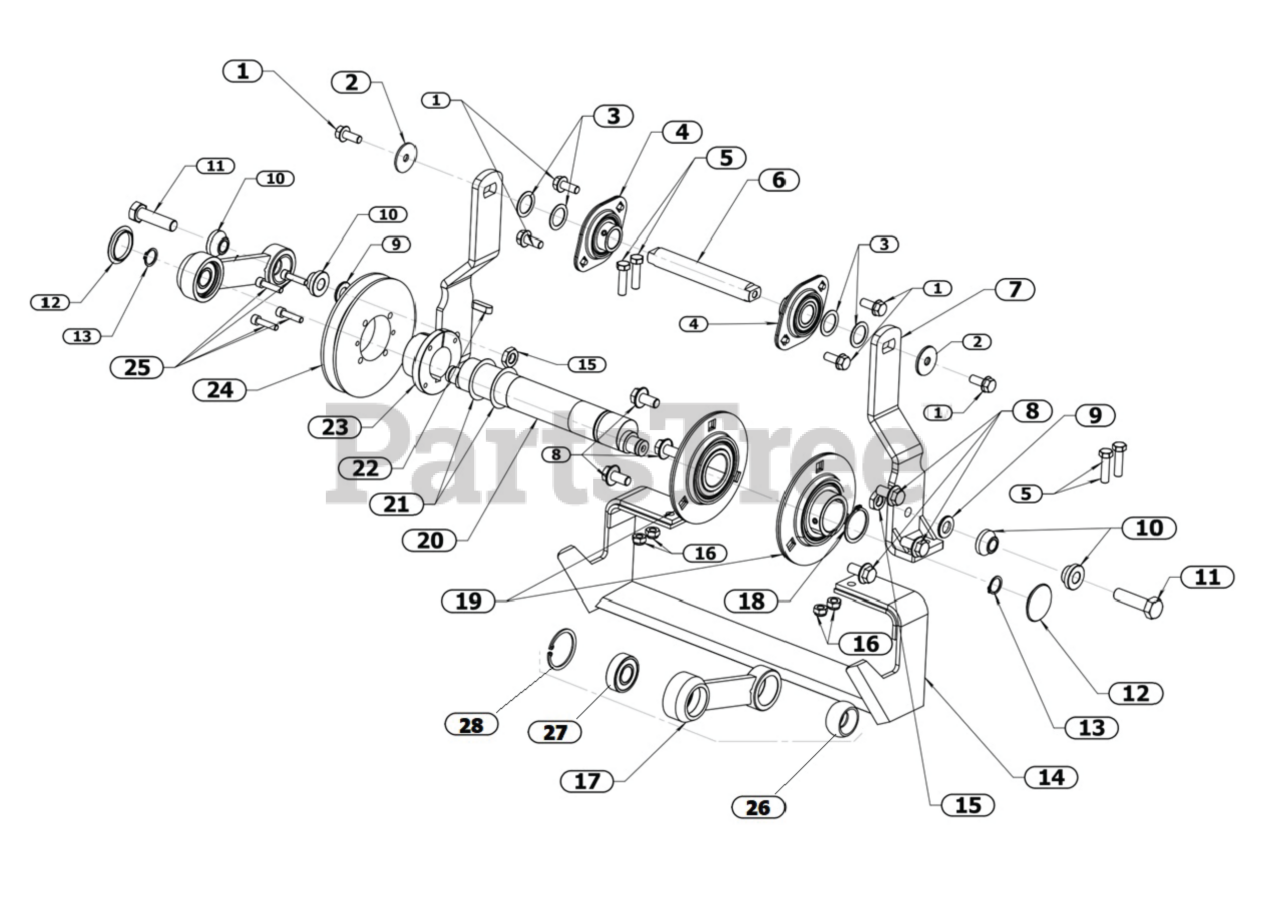

SC 122 H - Billy Goat 12" Sod Cutter Blade Group Parts Diagram

12" Sod Cutter

Blade Group Parts Diagram

  • Title

1

Billy Goat 370334

BOLT, HEX FLANGE M8 x 20

$

$

Currently unavailable

2

Billy Goat 370119

WASHER FLAT M8 x 32

$0.99

$

Usually ships in 2-11 days

0

3

Billy Goat 370336

WASHER SHIM 20 x 28 x 1

$

$

Currently unavailable

4

Billy Goat 370337

BEARING, FLANGE BPFL 204

$

$

Currently unavailable

5

Billy Goat 370324

BOLT, M8 x 30

$

$

Currently unavailable

6

BLADE ARM DRIVE SHAFT

$

$

Not available

7

BLADE CONTROL ARM, BLACK

$

$

Not available

8

Billy Goat 370338

BOLT, HEX FLANGE M10 X 20

$

$

Currently unavailable

9

Billy Goat 370124

WASHER FLAT M12 x 24

$0.99

$

In Stock, only 3 left!

0

10

Billy Goat 370231

SEMI-CONE

$7.49

$

In Stock, only 2 left!

0

11

Billy Goat 370287

HHCS CLS8 DIN 931 ZP M12 x 1.75 x 50MM

$15.99

$

In Stock, only 2 left!

0

12

Billy Goat 370286

COVER PLASTIC CONNECTING ROD

$21.99

$

In Stock, only 1 left!

0

13

Billy Goat 370122

RING SNAP INTERNAL E17

$0.99

$

In Stock, Qty 5

0

14

Billy Goat 370279

BLADE WA SC

$697.99

$

In Stock, only 1 left!

0

15

Billy Goat 370150

HEX NUT CLS8 DIN 934 ZNC PL M12 x 1.75

$5.99

$

In Stock, Qty 5

0

16

Billy Goat 370536

NUT M8 AUTOBL.METALBLOCK ZINC

$

$

Currently unavailable

17

Billy Goat 370217

ROD CONNECTING

$161.99

$

Usually ships in 2-11 days

0

18

Billy Goat 370155

RING SNAP INTERNAL E35

$2.49

$

Usually ships in 2-11 days

0

19

Billy Goat 370339

BEARING DOUBLE FLANGE SB 207 2RS

$

$

Currently unavailable

20

Billy Goat 370216

SHAFT WITH ECCENTRICS

$250.99

$

Usually ships in 2-11 days

0

21

Billy Goat 370156

SHIM ADJUSTMENT 35 x 45 x 0.5

$2.49

$

Usually ships in 2-11 days

0

22

Billy Goat 370157

KEY 8 x 7 x 25

$2.99

$

Usually ships in 2-11 days

0

23

Billy Goat 370212

PULLEY LOCKING HUB

$75.99

$

Usually ships in 2-11 days

0

24

Billy Goat 370211

PULLEY FOR SHAFT WITH ECCENTRICS

$129.99

$

Usually ships in 2-11 days

0

25

Billy Goat 370177

SCREW ALLEN M6 x 25

$0.99

$

Usually ships in 2-11 days

0

26

Billy Goat 370261

PAD RUBBER

$9.49

$

In Stock, only 2 left!

0

27

Billy Goat 370340

BEARING 6204 ISB

$

$

Currently unavailable

28

Billy Goat 370166

RING SNAP INTERNAL 40

$2.49

$

In Stock, only 1 left!

0
