SC 122 H - Billy Goat 12" Sod Cutter Transmission Assembly Group Parts Diagram

12" Sod Cutter

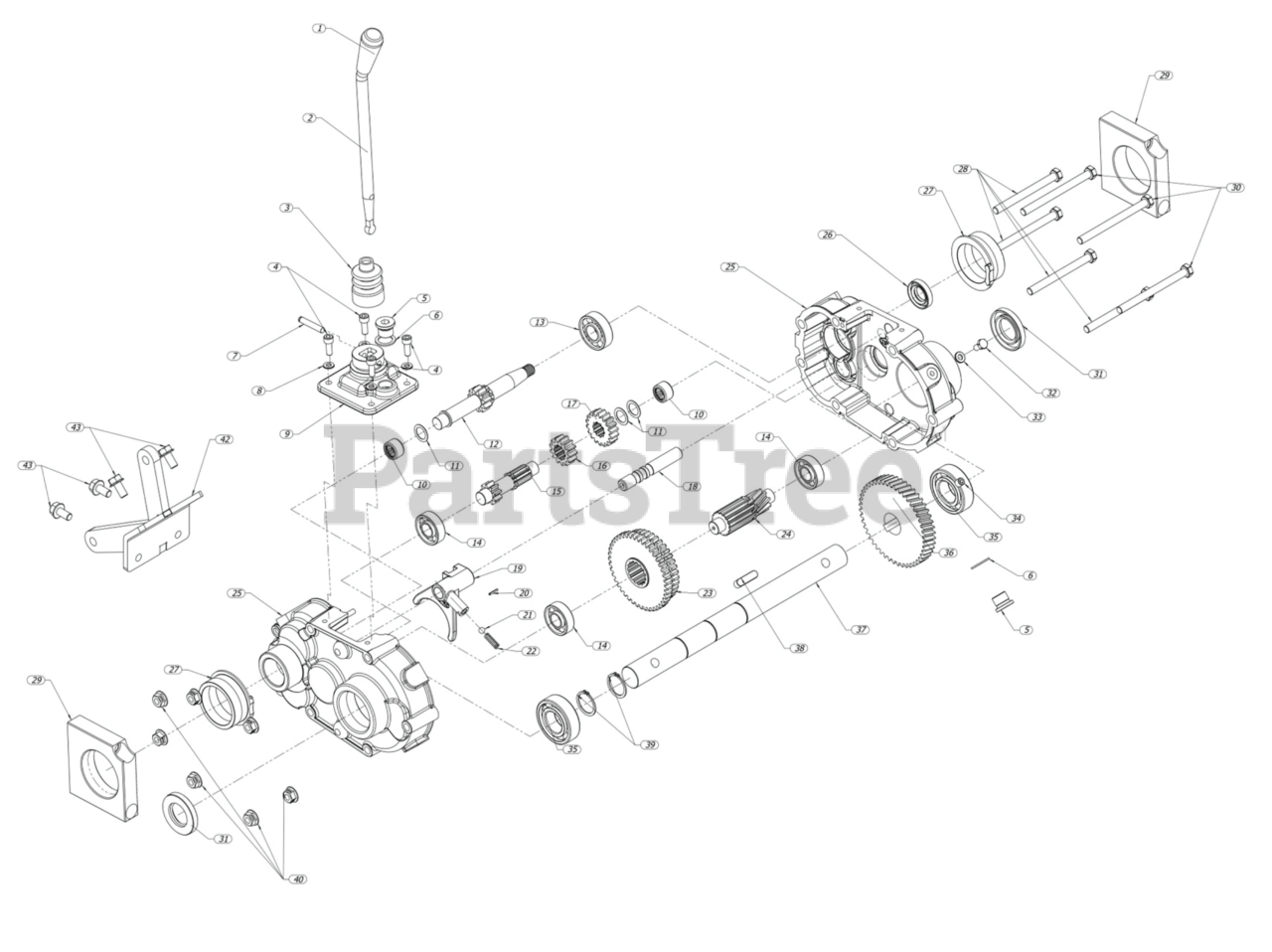

Transmission Assembly Group Parts Diagram

  • Title

1

Billy Goat 370182

PLASTIC KNOB

$6.99

$

Usually ships in 2-11 days

0

2

Billy Goat 370518

GALVANIZED GEAR SELECTOR LEVER

$57.99

$

Usually ships in 2-11 days

0

3

Billy Goat 370161

CASING

$14.99

$

In Stock, only 2 left!

0

4

Billy Goat 370519

SCREW TCCE UNI 5931 6X16 ZB

$

$

Currently unavailable

5

Billy Goat 370190

CAP METAL

$3.99

$

Usually ships in 2-11 days

0

6

Billy Goat 370366

WASHER, ALUMINUM 16 X 22 X 1.5

$

$

Currently unavailable

7

Billy Goat 370169

PIN CYLINDRICAL 6 x 35

$5.99

$

Usually ships in 2-11 days

0

8

Billy Goat 370178

SCREW M6 x 55 UNI 5931

$2.99

$

Usually ships in 2-11 days

0

9

Billy Goat 370520

TRANSMISSION COVER

$

$

Currently unavailable

10

Billy Goat 370423

ROLLER CAGE BEARING HK1412

$17.99

$

Usually ships in 2-11 days

0

11

Billy Goat 370521

SHIMMING PS 14X20X0.5

$

$

Currently unavailable

12

Billy Goat 370522

PRIMARY PINION

$

$

Currently unavailable

13

Billy Goat 370523

BEARING 6203 ERI - ABEC 5

$

$

Currently unavailable

14

Billy Goat 370524

BEARING 15X35X11 6202

$

$

Currently unavailable

15

Billy Goat 370414

PINION

$144.99

$

Usually ships in 2-11 days

0

16

Billy Goat 370413

GEAR 2ND SPEED

$72.99

$

Usually ships in 2-11 days

0

17

Billy Goat 370412

GEAR Z8

$61.99

$

Usually ships in 2-11 days

0

18

Billy Goat 370525

PIN FOR GEAR FORK SUPPORT

$

$

Currently unavailable

19

Billy Goat 370526

1ST AND 2ND GEAR FORK

$

$

Currently unavailable

20

Billy Goat 370527

SPRING PIN 2X12 DIN 14841 UNI 6873

$

$

Currently unavailable

21

Billy Goat 370528

INTERNAL BALL 1/4"" RB-6.350

$

$

Currently unavailable

22

Billy Goat 370264

SPRING GEAR FORK 6 x 25

$6.49

$

Usually ships in 2-11 days

0

23

Billy Goat 370415

GEAR 1ST - 2ND

$340.99

$

Usually ships in 2-11 days

0

24

Billy Goat 370416

GEAR REDUCTION PINION

$122.99

$

Usually ships in 2-11 days

0

25

Billy Goat 370532

COVER GEARBOX KIT

$

$

Currently unavailable

26

Billy Goat 370533

OIL SEAL 17 32 7 BASL TC

$8.99

$

Usually ships in 2-11 days

0

27

Billy Goat 370511

GEARBOX FULCRUM BUSH

$

$

Currently unavailable

28

Billy Goat 370534

SCREW UNI5737 8.8 8X90 FIS.MOT.GALV

$

$

Currently unavailable

29

SUPPORT, GEARBOX

$

$

Not available

30

Billy Goat 370367

BOLT, HEX FLANGE M8 X 100

$

$

Currently unavailable

31

Billy Goat 370535

OIL SEAL 25-47-7 TC

$

$

Currently unavailable

32

Billy Goat 370368

BOLT, HEX M6 X 12

$

$

Currently unavailable

33

Billy Goat 370185

WASHER FIBER M6 x 10

$0.99

$

Usually ships in 2-11 days

0

34

Billy Goat 370369

SCREW, GRUB M8 X 8

$

$

Currently unavailable

35

Billy Goat 370131

BEARING 25 x 52 x 15 6205

$12.99

$

Usually ships in 2-11 days

0

36

Billy Goat 370199

GEAR REDUCTION - CROWN

$233.99

$

Usually ships in 2-11 days

0

37

Billy Goat 370530

REAR AXLE 4WD

$

$

Currently unavailable

38

Billy Goat 370531

KEY 8X7X30 UNI 6604

$

$

Currently unavailable

39

Billy Goat 370529

SEEGER DIN 471 C70 DIAM. 25

$

$

Currently unavailable

40

Billy Goat 370536

NUT M8 AUTOBL.METALBLOCK ZINC

$

$

Currently unavailable

42

BRACKET, HEIGHT CONTROL

$

$

Not available

43

Billy Goat 370370

BOLT, HEX FLANGE M8 X 16

$

$

Currently unavailable
