SC 18 (968981201) - Husqvarna 18" Sod Cutter (2005-12) Main Frame Assembly Parts Diagram

18" Sod Cutter

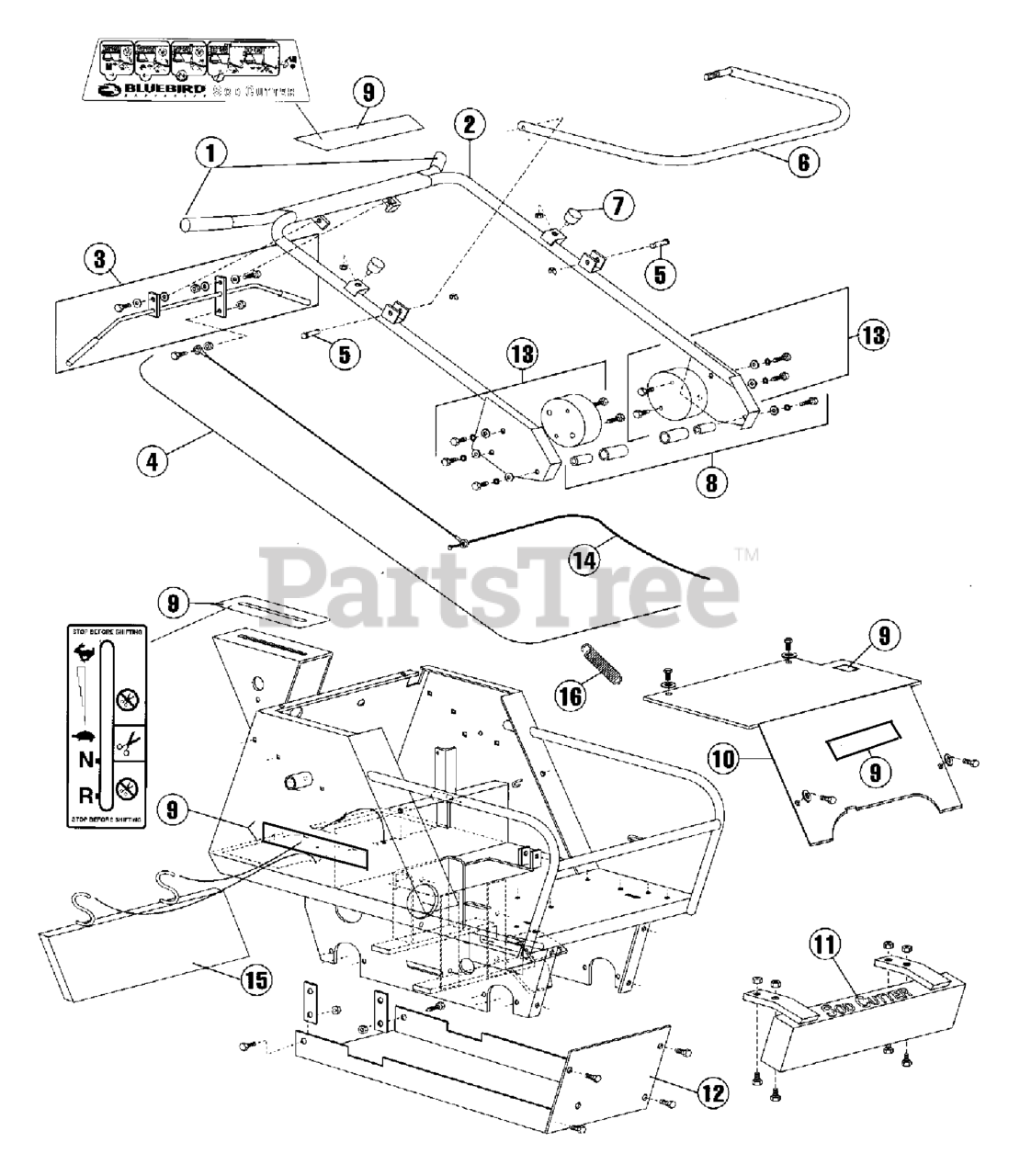

Main Frame Assembly Parts Diagram

  • Title

1

Husqvarna 540007191

GRIPS, PAIR, 1" ID, BLACK
(Superseded to 539007191)

$102.99

$

Usually ships in 3-10 days

0

2

Husqvarna 540003142

HANDLE KIT

Note: complete with grips and hardware

$

$

Not available

3

Husqvarna 540007149

CLUTCH CONTROL KIT HUS

$43.99

$

Usually ships in 3-10 days

0

4

Husqvarna 540003139

CABLE
(Superseded to 539003139)

Note: (less item 16)

$

$

Not available

5

Husqvarna 540003140

PINS
(Superseded to 539003140)

$

$

Not available

6

Husqvarna 540003141

DEPTH HANDLE GRAY

$

$

Not available

7

Husqvarna 540003143

BUMPERS
(Superseded to 539003143)

Note: (complete)

$

$

Not available

8

Husqvarna 540003172

DECAL KIT, SC 18

$

$

Not available

9

Husqvarna 540003145

STAND OFF KIT
(Superseded to 539003145)

$

$

Not available

10

Husqvarna 540003155

SHIELD COVER KIT

$

$

Not available

11

Husqvarna 540003154

WEIGHT ASSY W/ HARDWARE
(Superseded to 539003154)

$

$

Not available

12

Husqvarna 540003159

SKID PAN FOR SC18
(Superseded to 539003159)

Note: complete w/brackets and mounting hardware, deflector

$

$

Not available

13

Husqvarna 540003144

HANDLE ATTACHMENT KIT
(Superseded to 539003144)

Note: complete

$102.99

$

Usually ships in 3-10 days

0

14

Husqvarna 540003161

THROTTLE CABLE, CARB
(Superseded to 539003161)

$

$

Not available

15

Husqvarna 540003162

DEFLECTOR
(Superseded to 539003162)

$

$

Not available

16

Husqvarna 540003173

SPRING
(Superseded to 539005129)

$6.99

$

In Stock, only 2 left!

0

Husqvarna 540000732

PAINT 12.5 OZ SPRAY ORANGE

$

$

Not available

Husqvarna 540000729

PAINT NLA

$

$

Not available

Husqvarna 539111049

DECAL, HUSQ 9-1/4 BLUE

Note: (not shown)

$

$

Not available

Husqvarna 539111047

DECAL, HUSQ 12" BLUE

Note: (not shown)

$

$

Not available

Husqvarna 539111044

DECAL, CROWN H 3-1/8 BLUE

Note: (not shown)

$

$

Not available

Husqvarna 539105071

DECAL, NASCAR

Note: (not shown)

$

$

Not available

Husqvarna 539111114

DECAL SC18

Note: (not shown)

$

$

Not available
