SC 18 A (968999509) - Husqvarna 18" Sod Cutter (2006-07) Engine And Drive Group Parts Diagram

18" Sod Cutter

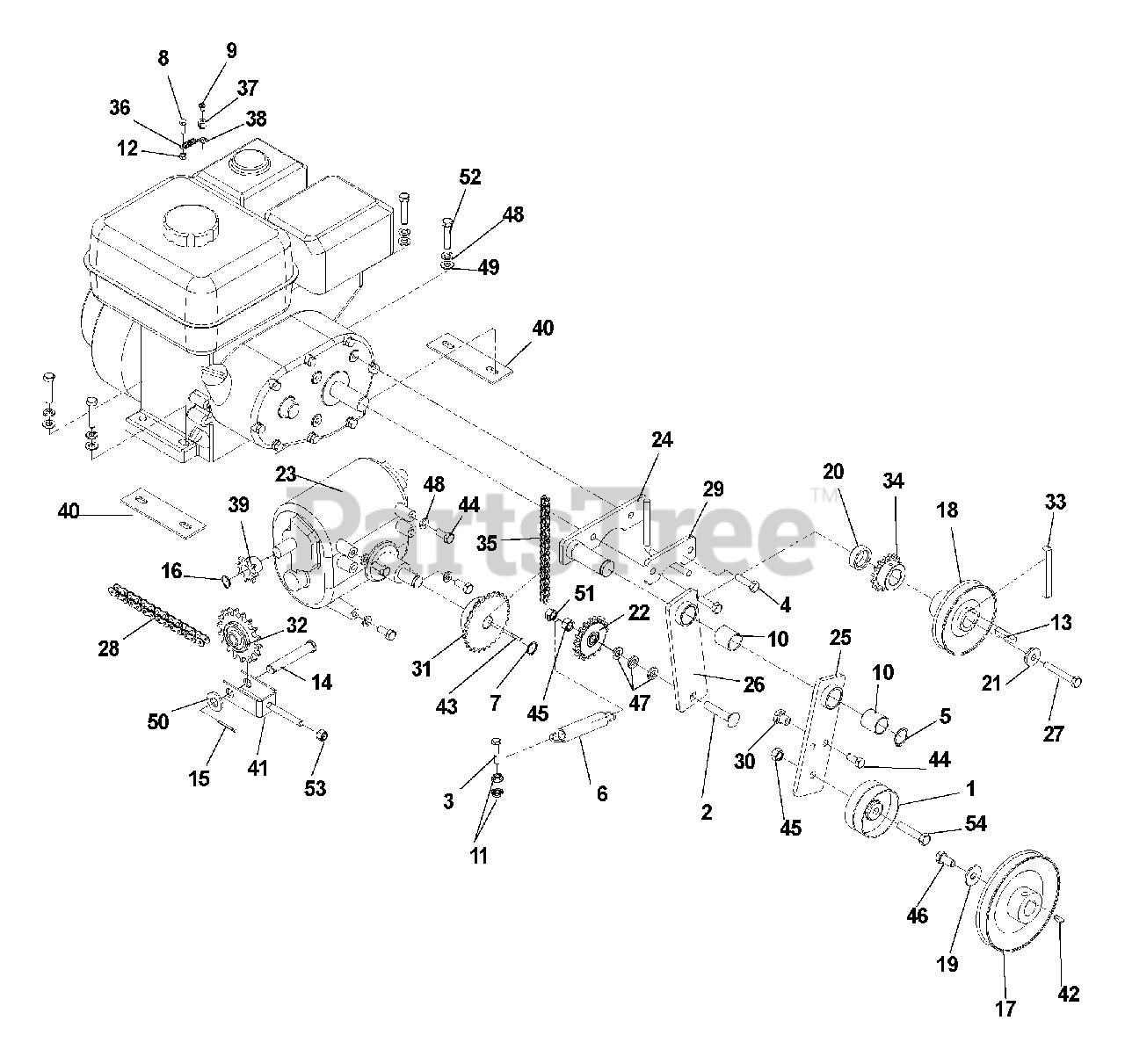

Engine And Drive Group Parts Diagram

  • Title

1

Husqvarna 539000343

PULLEY, IDLER

$44.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539100145

RHSNB, 3/8-16 X 2, GR5
(Superseded to 595901401)

$3.99

$

In Stock, Qty 14

0

3

Husqvarna 539100266

HCS, 1/4-20 X 1 1/4, GR5

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539100567

HCS, M8-1.25 X 30MM, GR8.8

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539101151

RING-RETAINING, EX 7/8

$

$

Not available

6

Husqvarna 539007195

SPRING, AXLE AERATOR
(Superseded to 539010195)

$47.99

$

In Stock, Qty 8

0

7

Husqvarna 539101971

RING-RETAINING, EXT 5/8

$3.99

$

In Stock, only 2 left!

0

8

Husqvarna 539108520

HCS, M5-0.8 X 16MM, GR8.8

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539108583

SCREW, METRIC SPECIAL, 1/4

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539108619

BUSHING

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539108735

NUT, 1/4-20

$4.99

$

In Stock, only 2 left!

0

12

Husqvarna 539109154

NUT, 5MM-.8

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539109159

KEY, 7MM SQ X 33MM

$10.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539109216

PIN CLEVIS, 1/2 X 3

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539109246

PIN COTTER, 1/8 X 1

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539109984

RING RETAINING, 9/16, EXT

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539112463

PULLEY, 5.25

$

$

Not available

18

Husqvarna 539112464

PULLEY, 3.75

$78.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539112483

SPRING, WASHER

$8.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539112825

SPACER, PTO SHAFT

$27.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539112826

WASHER, STEPPED

$27.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539112833

SPROCKET, IDLER 35 PITCH

$14.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539112854

TRANSMISSION, 4 SPEED

$

$

Not available

24

Husqvarna 539112855

IDLER PIVOT

$109.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539112869

IDLER ARM

$60.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539112868

IDLER, CHAIN

$60.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539112859

HCS, M8-1.25 X 55MM, GR8.8

$3.99

$

In Stock, only 1 left!

0

28

Husqvarna 539112875

CHAIN, TRANSMISSION, #40

$53.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539113180

KEEPER - CHAIN

$84.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539113455

SPRING ANCHOR

$12.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539003148

SPROCKET TRANSMISSION

$

$

Not available

32

Husqvarna 539003134

SPROCKET, CHAIN TENSIONER

$

$

Not available

33

Husqvarna 539003106

V-BELT
(Superseded to 539030439)

$40.99

$

In Stock, only 1 left!

0

34

Husqvarna 539003109

SPROCKET, ENGINE

$

$

Not available

35

Husqvarna 539003107

CHAIN, TRANSMISSION #35

$66.99

$

In Stock, only 1 left!

0

36

Husqvarna 539030445

SPRING, THROTTLE

$9.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539030449

CLAMP, THROTTLE CABLE

$36.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539030451

CLIP, THROTTLE

$6.49

$

Usually ships in 3-10 days

0

39

Husqvarna 539003149

SPROCKET, #40 CHAIN, 8 TOOTH

$

$

Not available

40

Husqvarna 539007203

SMALL ENGINE PLATE

$40.99

$

In Stock, only 1 left!

0

41

Husqvarna 539003133

CHAIN TENSIONER

$42.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539910008

KEY, WOODRUFF #6

$4.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539910211

KEY, WOODRUFF #9

$3.99

$

In Stock, only 4 left!

0

44

Husqvarna 539976934

HCS, 5/16-18 X 3/4, GR5
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

45

Husqvarna 539976979

NUT, 3/8-16, NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

46

Husqvarna 539977748

HCS, 3/8-24 X 3/4, GR5

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539990118

WASHER, 3/8
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

48

Husqvarna 539990187

WASHER, 5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

49

Husqvarna 539990188

WASHER, 5/16, SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

50

Husqvarna 539990250

WASHER, 1/2, SAE

$1.49

$

Usually ships in 3-10 days

0

51

Husqvarna 539990546

NUT, 3/8-16, CENTERLOCK

$

$

Not available

52

Husqvarna 539990669

HCS, 5/16-18 X 1 3/4, GR5
(Superseded to 874780528)

$7.49

$

In Stock, only 4 left!

0

53

Husqvarna 539990717

NUT, 5/16-18, NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

54

Husqvarna 539990730

HCS, 3/8-16 X 1 3/4, GR5

$3.99

$

Usually ships in 3-10 days

0
