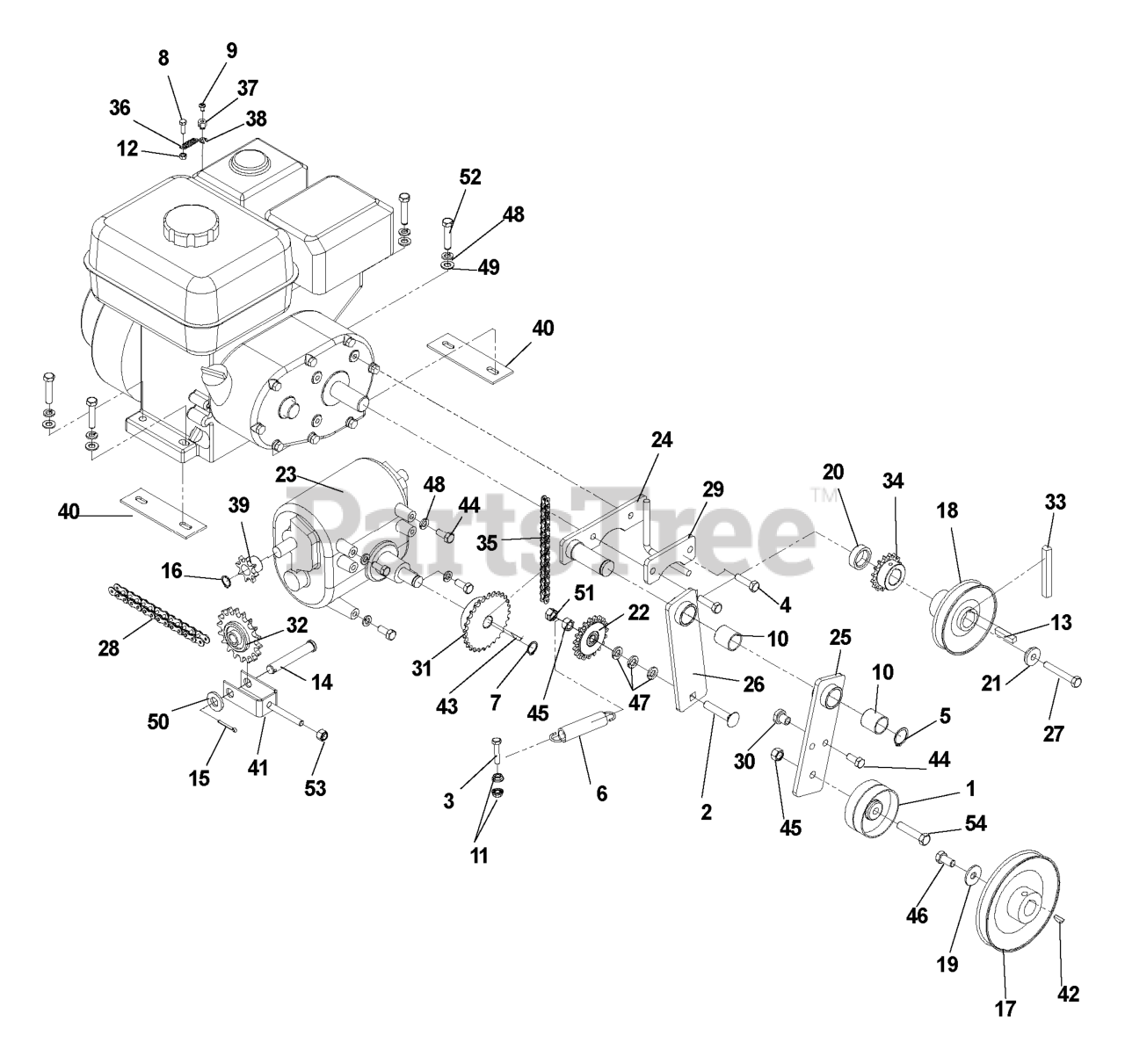

SC 18 A (968999509) - Husqvarna 18" Sod Cutter (2006-07) Engine And Drive Group Parts Diagram

18" Sod Cutter

Engine And Drive Group Parts Diagram

  • Title

1

Husqvarna 539000343

PULLEY, IDLER 2 3/4 OD PAINTED

$28.99

$

In Stock, only 2 left!

0

2

Husqvarna 539100145

RHSNB 3/8C X 2
(Superseded to 595901401)

$3.49

$

In Stock, Qty 20+

0

3

Husqvarna 539100266

BOLT HEX 1/4 X 1-1/4

$

$

Not available

4

Husqvarna 539100567

HCS M8-1.25 X 30MM

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna 539101151

RETAINING RING, 7/8"

$

$

Not available

6

Husqvarna 539007195

SPRING, 3 3/4", EXTENSION
(Superseded to 539010195)

$37.99

$

In Stock, Qty 6

0

7

Husqvarna 539101971

RETAINER RING

$3.49

$

In Stock, only 2 left!

0

8

Husqvarna 539108520

HCS M5-0.8 X 16MM GR 8.8 ZD

$

$

Not available

9

Husqvarna 539108583

SCREW METRIC SPECIAL X 1/4 ZN

$

$

Not available

10

Husqvarna 539108619

BUSHING

$

$

Not available

11

Husqvarna 539108735

NUT 1/4-20 HEX FLG LK ZD

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539109154

NUT 5MM-.8 HEX ZD

$7.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539109159

KEY 7MM SQ X 33MM ENGINE

$13.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539109216

PIN CLEVIS 1/2 X 3 ZD

$

$

Not available

15

Husqvarna 539109246

PIN COTTER 1/8 X 1 ZD

$5.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539109984

RING RETAINING 9/16 EXT PLAIN

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539112463

PULLEY - 5.25 A

$

$

Not available

18

Husqvarna 539112464

PULLEY - 3.75 A

$85.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539112483

SPRING WASHER - .38

$

$

Not available

20

Husqvarna 539112825

SPACER - PTO SHAFT

$

$

Not available

21

Husqvarna 539112826

WASHER - STEPPED

$

$

Not available

22

Husqvarna 539112833

SPROCKET - IDLER 35 PITCH

$

$

Not available

23

Husqvarna 539112854

TRANSMISSION-4 SP SOD CUTTER

$

$

Not available

24

Husqvarna 539112855

IDLER PIVOT, BLACK

$

$

Not available

25

Husqvarna 539112869

BELT IDLER W/BUSHING

$

$

Not available

26

Husqvarna 539112868

CHAIN IDLER W/BUSHING

$

$

Not available

27

Husqvarna 539112859

HCS M8-1.25 X 55MM GR8.8 ZD

$3.49

$

In Stock, only 1 left!

0

28

Husqvarna 539112875

CHAIN, 57.5 TRANS #40

$

$

Not available

29

Husqvarna 539113180

KEEPER - CHAIN, BLACK

$

$

Not available

30

Husqvarna 539113455

SPRING ANCHOR

$

$

Not available

31

Husqvarna 539003148

SPROCKET W/KEY AND RING

$

$

Not available

32

Husqvarna 539003134

SPROCKET/DRIVE TENSIONER

$

$

Not available

33

Husqvarna 539003106

V-BELT, "A" 26" SPECIAL
(Superseded to 539030439)

$28.99

$

In Stock, only 3 left!

0

34

Husqvarna 539003109

SPROCKET, W/KEY ENGINE

$

$

Not available

35

Husqvarna 539003107

CHAIN TRANS 26-5/8"

$

$

Not available

36

Husqvarna 539030445

SPRING, THROTTLE, HONDA ENGINE

$

$

Not available

37

Husqvarna 539030449

CLAMP, THROTTLE CABLE

$

$

Not available

38

Husqvarna 539030451

CLIP, THROTTLE HONDA

$

$

Not available

39

Husqvarna 539003149

SPROCKET, TRANSMISSION/8 TOOTH

$

$

Not available

40

Husqvarna 539007203

PLATE KIT, ENG, HONDA &5.5 B&S

$37.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539003133

KIT TENSIONER ASSY/DRIVE CHAIN

$

$

Not available

42

Husqvarna 539910008

KEY-WOODRUFF, #6

$

$

Not available

43

Husqvarna 539910211

KEY, #9 WOODRUFF

$3.49

$

In Stock, only 2 left!

0

44

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

45

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.49

$

In Stock, Qty 20+

0

46

Husqvarna 539977748

HCS 3/8F X 3/4

$

$

Not available

47

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

48

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.49

$

In Stock, Qty 20+

0

49

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

50

Husqvarna 539990250

WASHER 1/2" FLAT
(Superseded to 595086801)

$3.49

$

In Stock, Qty 19

0

51

Husqvarna 539990546

NUT 3/8C CENTERBLOCK
(Superseded to 595305901)

$3.49

$

In Stock, Qty 20+

0

52

Husqvarna 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$

$

Not available

53

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

54

Husqvarna 539990730

HCS 3/8-16 X 1 3/4 GR5
(Superseded to 596583901)

$3.49

$

In Stock, Qty 9

0
