SC 18 A (968999509) - Husqvarna 18" Sod Cutter (2006-07) Trunnion Group Parts Diagram

18" Sod Cutter

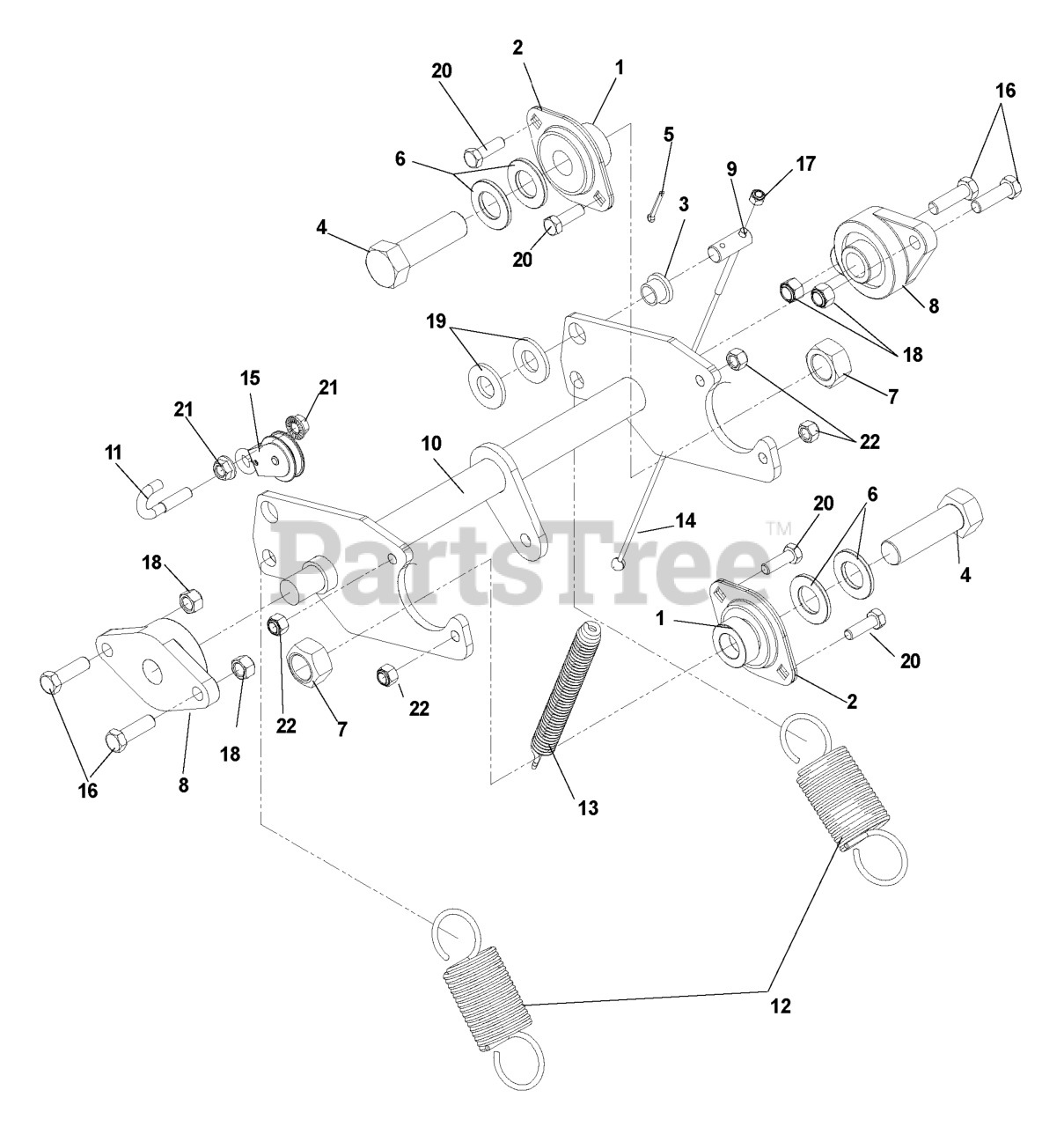

Trunnion Group Parts Diagram

  • Title

1

Husqvarna 539000315

BRG 3/4" W/LOCKING COLLAR

$39.99

$

In Stock, Qty 6

0

2

Husqvarna 539000316

FLANGE BEARING ZINC PLATED

$

$

Not available

3

Husqvarna 539100032

BUSHING, FLANGED NYLON

$

$

Not available

4

Husqvarna 539108438

HCS 3/4-16 X 2-1/2 GR 5 ZD

$9.49

$

In Stock, only 1 left!

0

5

Husqvarna 539109246

PIN COTTER 1/8 X 1 ZD

$5.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539109333

WASHER 3/4 FLAT SAE ZD

$4.99

$

In Stock, Qty 17

0

7

Husqvarna 539110800

NUT 3/4-16 HEX TOP LK ZD

$6.99

$

In Stock, only 2 left!

0

8

Husqvarna 539112478

BEARING .75-2 BOLT

$

$

Not available

9

Husqvarna 539112824

PIN - CABLE PIVOT
(Superseded to 539130624)

$

$

Not available

10

Husqvarna 539112834

TRUNNION SHAFT, BLACK

$

$

Not available

11

Husqvarna 539112896

J-BOLT
(Superseded to 596917401)

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539113185

SPRING - EXTENSION

$

$

Not available

13

Husqvarna 539113377

SPRING - EXTENSION, CABLE

$

$

Not available

14

Husqvarna 539113378

CABLE - PULL, R/B 130626
(Superseded to 539130626)

$

$

Not available

15

Husqvarna 539003114

PULLEY, SWIVEL EYE, CLUTCH
(Superseded to 539030464)

$

$

Not available

16

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 1 left!

0

17

Husqvarna 539976977

NUT 10-24 NYLOC
(Superseded to 596040801)

$3.49

$

In Stock, Qty 20+

0

18

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.49

$

In Stock, Qty 20+

0

19

Husqvarna 539976982

WASHER 5/8 FLAT

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539990209

HCS 5/16C X 1
(Superseded to 596580801)

$3.49

$

In Stock, Qty 19

0

21

Husqvarna 539990585

NUT 5/16C WHIZ
(Superseded to 596039201)

$3.49

$

In Stock, Qty 20+

0

22

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0
