SC 18 - Husqvarna 18" Sod Cutter (2001-01) Blade Drive Assembly Parts Diagram

18" Sod Cutter

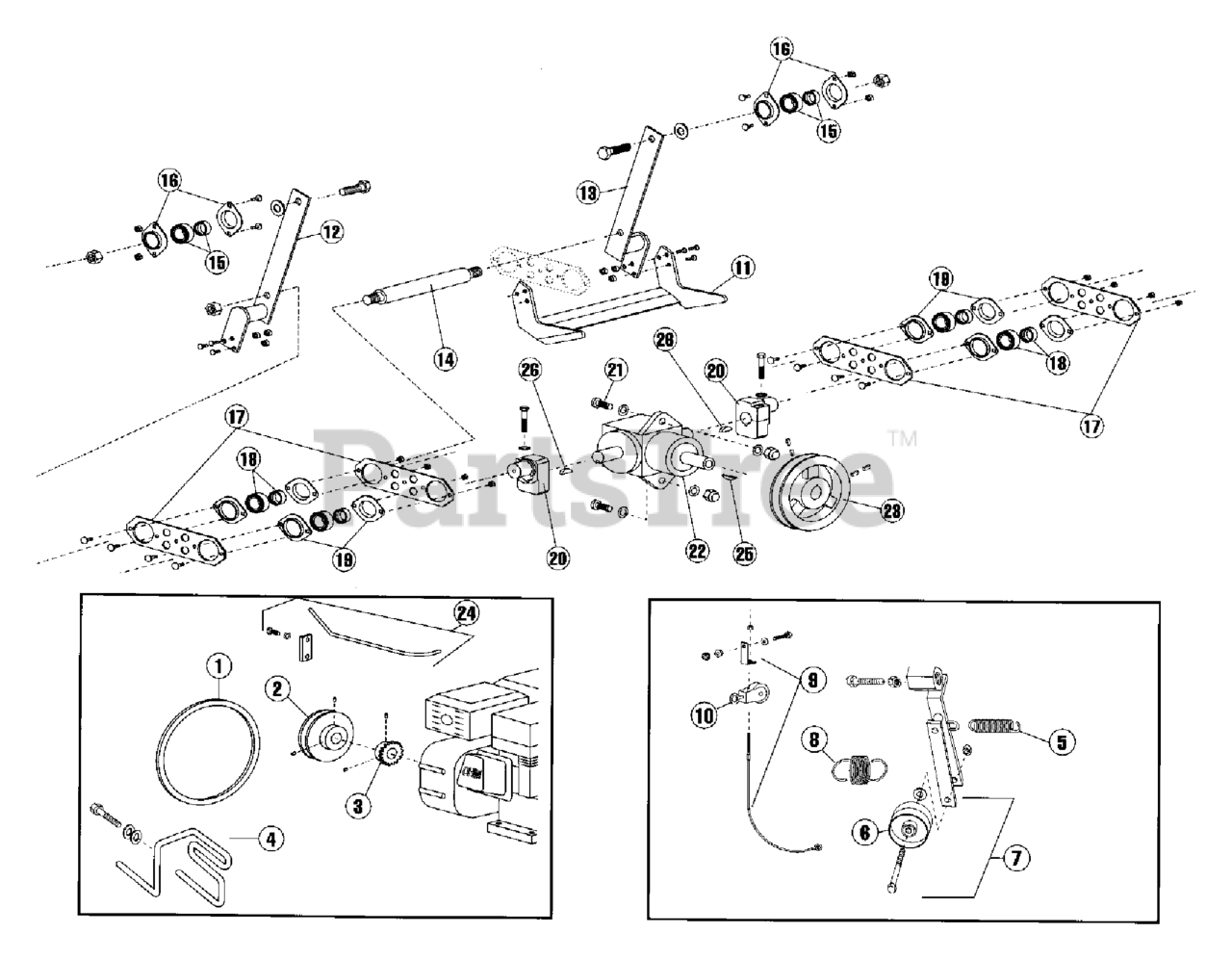

Blade Drive Assembly Parts Diagram

  • Title

1

Husqvarna 540003106

V-BELT
(Superseded to 539030439)

$28.99

$

In Stock, only 3 left!

0

2

Husqvarna 540003108

V-PULLEY
(Superseded to 539003108)

$

$

Not available

3

Husqvarna 540003109

SPROCKET
(Superseded to 539003109)

$

$

Not available

4

Husqvarna 540003166

BELT KEEPER WITH HARDWARE
(Superseded to 539003166)

$

$

Not available

5

Husqvarna 540007195

SPRING, IDLER CAM, 3 3/4"
(Superseded to 539010195)

$37.99

$

In Stock, Qty 6

0

6

Husqvarna 540000343

PULLEY
(Superseded to 539000343)

$28.99

$

Usually ships in 3-10 days

0

7

Husqvarna 540003111

ARM, IDLER ASSEMBLY
(Superseded to 539003111)

$

$

Not available

8

Husqvarna 540003112

SPRING
(Superseded to 539030463)

$17.99

$

In Stock, only 1 left!

0

9

Husqvarna 540003113

CABLE
(Superseded to 539003113)

$

$

Not available

10

Husqvarna 540003114

PULLEY
(Superseded to 539030464)

$

$

Not available

11

Husqvarna 540003167

SOD CUTTER BLADES W/HARDWARE
(Superseded to 539003167)

$

$

Not available

12

Husqvarna 540030219

SHAFT SET - SOD CUTTER
(Superseded to 539030219)

$

$

Not available

13

Husqvarna 540000315

BEARING
(Superseded to 539000315)

$39.99

$

In Stock, Qty 6

0

14

Husqvarna 540003122

STAMPING KIT
(Superseded to 539003122)

Note: for 3/4" bearing

$

$

Not available

15

Husqvarna 540003125

PLATE, ROD
(Superseded to 539003125)

$56.99

$

In Stock, only 1 left!

0

16

Husqvarna 540000317

BEARING 1"
(Superseded to 539000317)

$

$

Not available

17

Husqvarna 540003124

STAMPING KIT
(Superseded to 539003124)

$74.99

$

In Stock, only 2 left!

0

18

Husqvarna 540003129

CRANK
(Superseded to 539003129)

$

$

Not available

19

Husqvarna 540003132

HARDWARE KIT
(Superseded to 539003132)

$

$

Not available

20

Husqvarna 540003131

GEAR BOX
(Superseded to 539003131)

$

$

Not available

21

Husqvarna 540003130

PULLEY
(Superseded to 539003130)

$

$

Not available

22

Husqvarna 540003152

TUBE, THRTLE CABLE
(Superseded to 539003152)

Note: Call factory for a breakdown of Gear Box

$

$

Not available

23

Husqvarna 540003175

KEY, #6 WOODRUFF
(Superseded to 539910008)

$

$

Not available

24

Husqvarna 540003176

KEY, #9 WOODRUFF (3/16 X 3/4)
(Superseded to 539910211)

$3.49

$

In Stock, only 2 left!

0
