SC 18 - Husqvarna 18" Sod Cutter (2001-01) Main Frame Assembly Parts Diagram

18" Sod Cutter

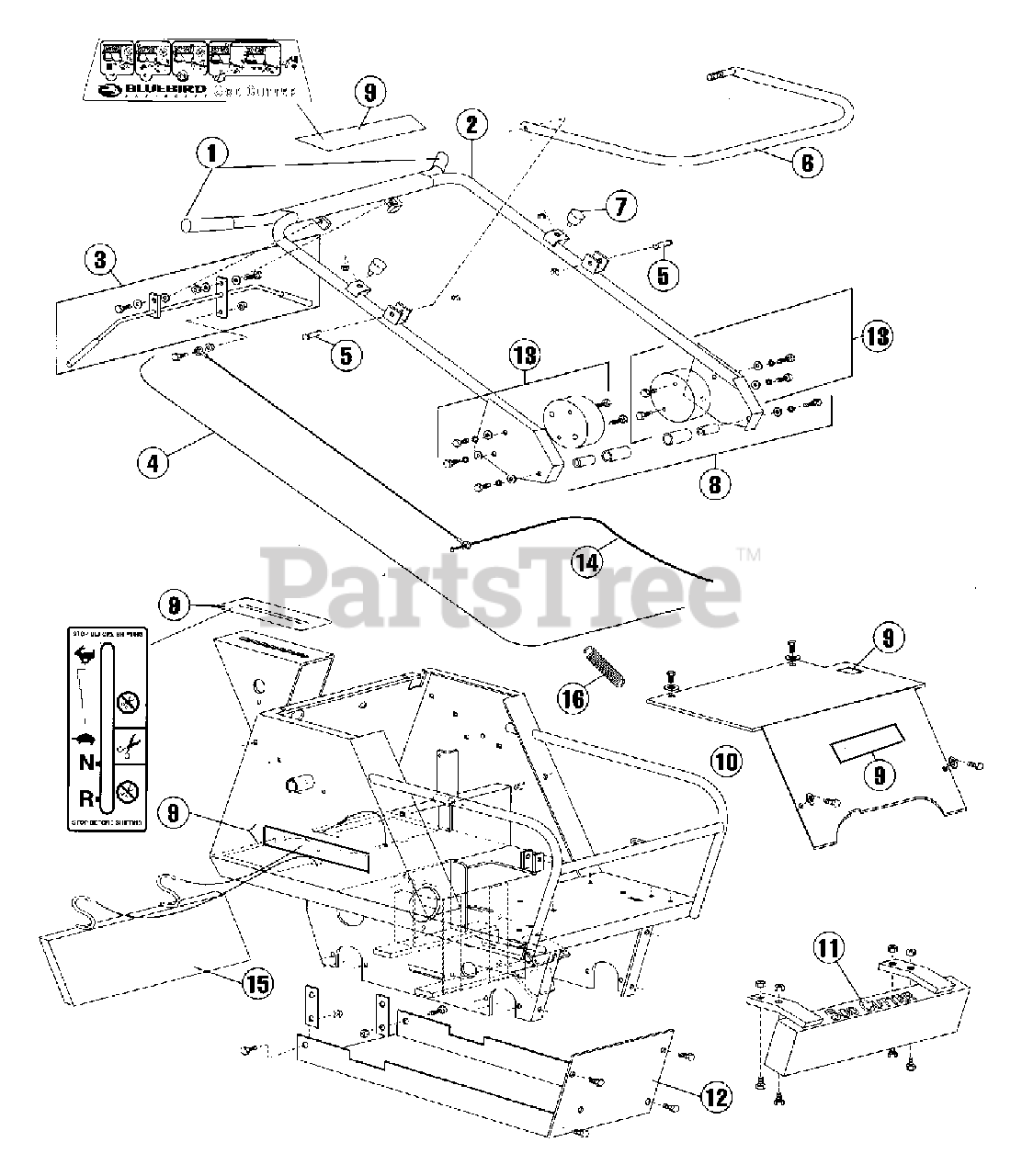

Main Frame Assembly Parts Diagram

  • Title

1

Husqvarna 540007191

Grips pair
(Superseded to 539007191)

$60.99

$

Usually ships in 3-10 days

0

2

Husqvarna 540003142

Handle kit, complete with grips and hardware

$

$

Not available

3

Husqvarna 540007149

Clutch/throttle control kit, with grips and hardware

$46.99

$

In Stock, only 1 left!

0

4

Husqvarna 540003139

Cable, throttle cable kit
(Superseded to 539003139)

Note: (less item 16)

$

$

Not available

5

Husqvarna 540003140

Pins, depth handle with clip
(Superseded to 539003140)

$

$

Not available

6

Husqvarna 540003141

Blade engagement lever

$133.99

$

Usually ships in 3-10 days

0

7

Husqvarna 540003143

Bumpers, handle (complete)
(Superseded to 539003143)

$54.99

$

Usually ships in 3-10 days

0

8

Husqvarna 540003172

Decal kit, SC18

$35.99

$

Usually ships in 3-10 days

0

9

Husqvarna 540003145

Stand off kit
(Superseded to 539003145)

$133.99

$

Usually ships in 3-10 days

0

10

Husqvarna 540003155

Shield cover kit, upper housing with hardware

$84.99

$

Usually ships in 3-10 days

0

11

Husqvarna 540003154

Weight weldment with hardware
(Superseded to 539003154)

$160.99

$

Usually ships in 3-10 days

0

12

Husqvarna 540003159

Skid pan, complete w/brackets and mounting hardware, deflector
(Superseded to 539003159)

$

$

Not available

13

Husqvarna 540003144

Handle attachment hardware kit complete
(Superseded to 539003144)

$91.99

$

Usually ships in 3-10 days

0

14

Husqvarna 540003161

Throttle cable, carb
(Superseded to 539003161)

$21.99

$

Usually ships in 3-10 days

0

15

Husqvarna 540003162

Deflector with "S" links
(Superseded to 539003162)

$23.99

$

Usually ships in 3-10 days

0

16

Husqvarna 540003173

Spring
(Superseded to 539005129)

$8.99

$

In Stock, only 4 left!

0

Husqvarna 540000732

Paint 12.5 oz spray can

$46.99

$

Usually ships in 3-10 days

0

Husqvarna 540000729

Paint, quart can

$

$

Not available

Husqvarna 539111049

Decal, Husqvarna, 9 1/4" blue

Note: (not shown)

$

$

Not available

Husqvarna 539111047

Decal, Husqvarna, 12" blue

Note: (not shown)

$

$

Not available

Husqvarna 539111044

Decal, Crown H, 3 1/8" blue

Note: (not shown)

$4.99

$

Usually ships in 3-10 days

0

Husqvarna 539105071

Decal, Nascar

Note: (not shown)

$

$

Not available

Husqvarna 539111114

Decal, SC 18

Note: (not shown)

$

$

Not available
