SC 18 - Husqvarna 18" Sod Cutter (2001-01) Power Train Assembly Parts Diagram

18" Sod Cutter

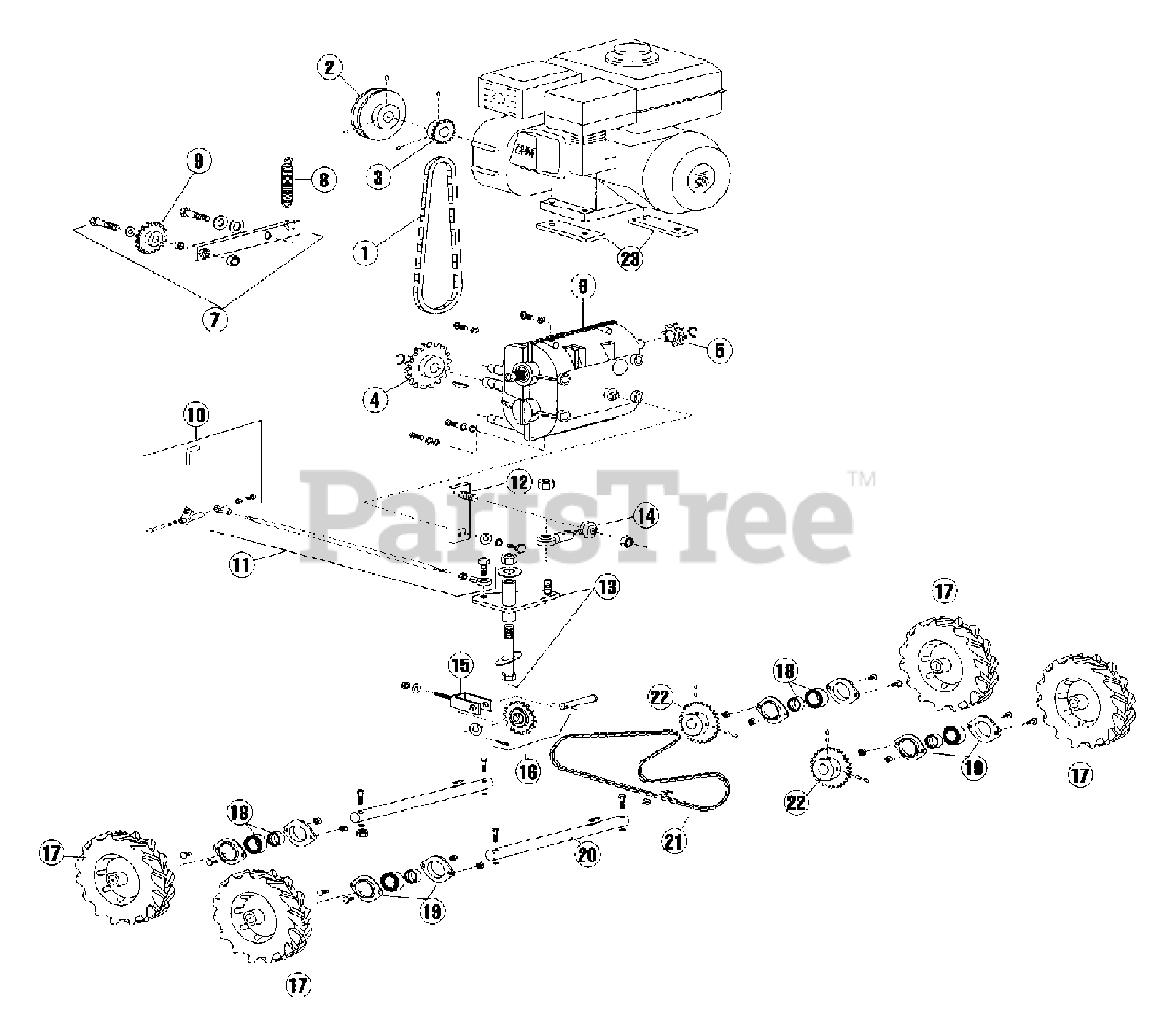

Power Train Assembly Parts Diagram

  • Title

1

Husqvarna 540003107

Chain, transmission 26 5/8" length
(Superseded to 539003107)

$66.99

$

In Stock, only 1 left!

0

2

Husqvarna 540003108

V-pulley 4" special, with key
(Superseded to 539003108)

$145.99

$

Usually ships in 3-10 days

0

3

Husqvarna 540003109

Sprocket with key
(Superseded to 539003109)

$

$

Not available

4

Husqvarna 540003148

Sprocket with key and ring
(Superseded to 539003148)

$

$

Not available

5

Husqvarna 540003149

Sprocket, transmission, 8 tooth
(Superseded to 539003149)

$

$

Not available

6

Husqvarna 540003150

Transmission with hardware
(Superseded to 539003150)

$

$

Not available

7

Husqvarna 540003171

Chain idler arm assembly
(Superseded to 539003171)

$242.99

$

Usually ships in 3-10 days

0

8

Husqvarna 540007195

Spring, 3 3/4"
(Superseded to 539010195)

$47.99

$

In Stock, Qty 8

0

9

Husqvarna 540003127

Sprocket, idler arm
(Superseded to 539030444)

$13.99

$

Usually ships in 3-10 days

0

10

Husqvarna 540003146

Lever, shift kit

$

$

Not available

11

Husqvarna 540003147

Linkage, shift
(Superseded to 539003147)

$

$

Not available

12

Husqvarna 540003135

Arm, transmission shift with hardware
(Superseded to 539003135)

$169.99

$

Usually ships in 3-10 days

0

13

Husqvarna 540003136

Bell crank shift kit

$26.99

$

Usually ships in 3-10 days

0

14

Husqvarna 540003137

Rod end, linkage bell crank
(Superseded to 539003137)

$78.99

$

Usually ships in 3-10 days

0

15

Husqvarna 540003133

Tensioner assembly, drive train
(Superseded to 539003133)

$42.99

$

Usually ships in 3-10 days

0

16

Husqvarna 540003134

Sprocket, drive train tensioner
(Superseded to 539003134)

$

$

Not available

17

Husqvarna 540003123

Wheel, 10" with hardware
(Superseded to 539003123)

$226.99

$

Usually ships in 3-10 days

0

18

Husqvarna 540000317

Bearing, 1" with locking collar
(Superseded to 539000317)

$

$

Not available

19

Husqvarna 540005786

Stamping kit, with fasteners (1" bearing)
(Superseded to 539005786)

$

$

Not available

20

Husqvarna 540003153

Axle, wheel, with hardware
(Superseded to 539003153)

$

$

Not available

21

Husqvarna 540003151

Chain, 55", drive
(Superseded to 539003151)

$

$

Not available

22

Husqvarna 540000303

Sprocket, with key, rotor
(Superseded to 539000303)

$120.99

$

In Stock, only 1 left!

0

23

Husqvarna 540003170

Motor space plate kit with hardware
(Superseded to 539003170)

$12.99

$

Usually ships in 3-10 days

0
