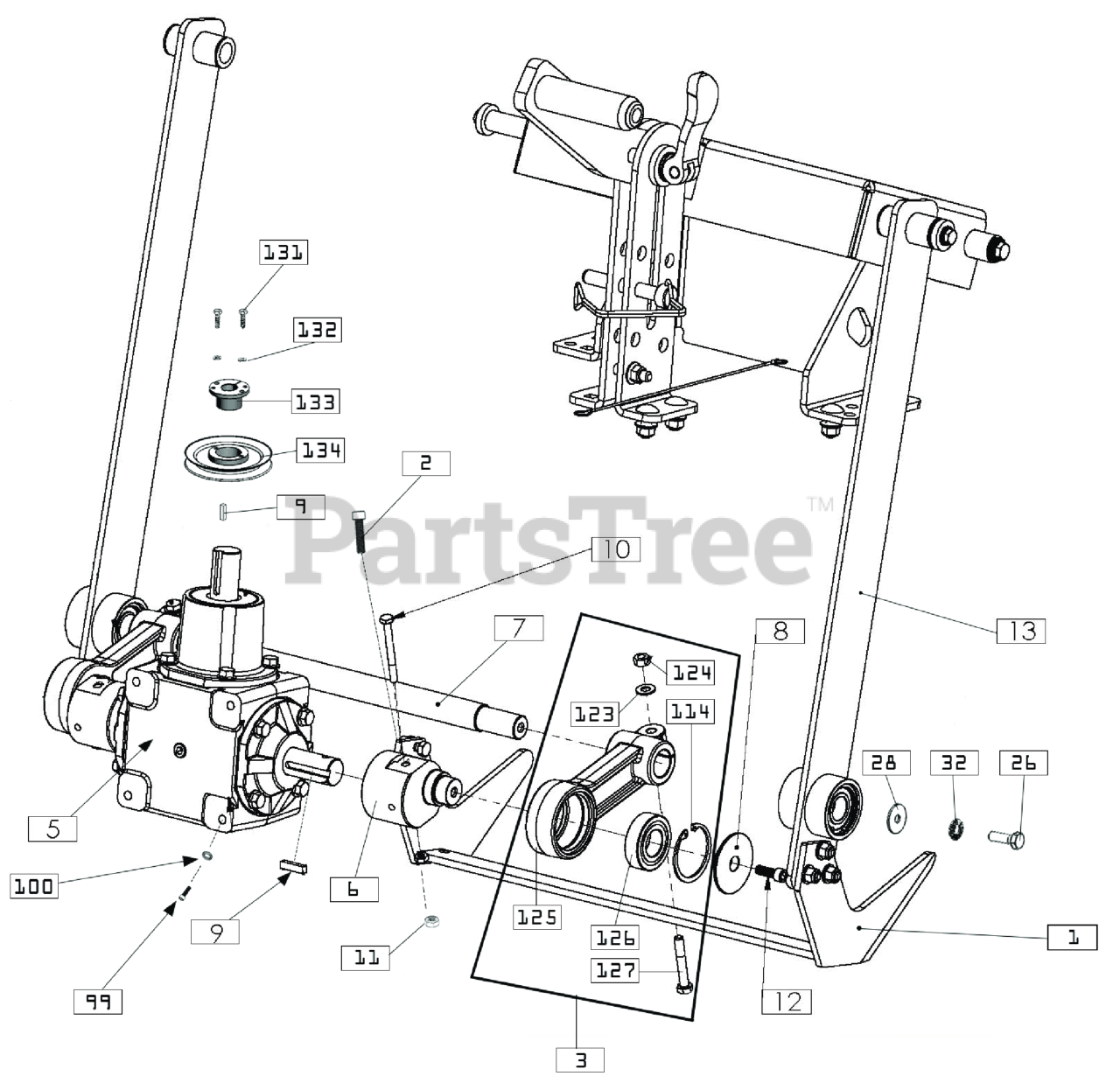

SC 181 HG - Billy Goat 18" Sod Cutter Gearbox Assembly Parts Diagram

18" Sod Cutter

Gearbox Assembly Parts Diagram

  • Title

1

Billy Goat 371203-S

KIT BLADE 18" INCLUDES HARDWARE

$375.99

$

In Stock, only 1 left!

0

2

Billy Goat 362289

SHCS 5/16"-18 X 1.25 BLK OX

$1.49

$

In Stock, Qty 5

0

3

Billy Goat 373016

ROD, CONNECTING ASSY SC181H

$

$

Not available

5

Billy Goat 373233

GEARBOX, SPIRAL BEVEL 2:1 CURTIS

$1316.99

$

Usually ships in 2-11 days

0

5

Billy Goat 373602

SC181 GEARBOX SEAL KIT

$205.99

$

Usually ships in 2-11 days

0

6

Billy Goat 373237

ECCENTRIC, BLADE DRIVE SC181H

$200.99

$

Usually ships in 2-11 days

0

7

Billy Goat 373238

BAR, PUSH

$97.99

$

Usually ships in 2-11 days

0

8

Billy Goat 373281

WASHER, CONNECTING ROD

$35.99

$

Usually ships in 2-11 days

0

9

Billy Goat 9201113

KEY SQUARE 1/4" X 1"

$2.99

$

Usually ships in 2-11 days

0

10

Billy Goat 8041012

SCREWCAP 1/4"-20X2 1/2" ZP

$0.99

$

Usually ships in 2-11 days

0

11

Billy Goat 8161040

NUT LOCK, 1/4-20 LT WT TH ZP

$0.99

$

Usually ships in 2-11 days

0

12

Billy Goat 8049001

SCR-CAP, SH .3125"-24 X 0.875" G8 ZP

$2.49

$

Usually ships in 2-11 days

0

13

Billy Goat 373014

ARM, BLADE SC181H ASSY

$

$

Not available

26

Billy Goat 8041028

SCREWCAP 5/16"-18 X 1" HCS ZP

$0.99

$

In Stock, Qty 9

0

28

Billy Goat 441150

WASHER 1.125 OD X 0.344 ID X .25 THK ZP

$3.99

$

Usually ships in 2-11 days

0

32

Billy Goat 8181010

WASHER, BELLEVILLE CONTACT .323X.717X.05

$2.99

$

Usually ships in 2-11 days

0

99

Billy Goat 8048127

SCR-CAP, SH .375" - 16 X 1.250" G8 ZP

$0.99

$

Usually ships in 2-11 days

0

100

Billy Goat 8182001

WSHR-NORD LOCK 0.406" X 0.654" ZP

$

$

Currently unavailable

114

Billy Goat 373236

RING, RETAINING DHO-47

$3.99

$

In Stock, only 2 left!

0

123

Billy Goat 8172008

WASHER 5/16" SAE Z/P

$0.99

$

In Stock, Qty 10

0

124

Billy Goat 8149002

NUT 5/16"-24 FIN HEX Z/P

$0.99

$

Usually ships in 2-11 days

0

125

Billy Goat 373234

CONNECTING ROD, MACHINED SC181

$

$

Not available

126

Billy Goat 373280

BEARING, 6205 25MM BORE ARMORED SEALS

$17.99

$

In Stock, only 3 left!

0

127

Billy Goat 350204

SCREWCAP 5/16-24 X 2" GR.8

$4.99

$

Usually ships in 2-11 days

0

131

Billy Goat 8041006

SCREWCAP 1/4"-20 X 1" HCS ZP

$0.99

$

Usually ships in 2-11 days

0

132

Billy Goat 8177010

WASHER LOCK 1/4" S/T MED

$0.99

$

Usually ships in 2-11 days

0

133

Billy Goat 373240

BUSHING, TAPERED HUB Ø1.000" BORE

$19.99

$

Usually ships in 2-11 days

0

134

Billy Goat 373230

PULLEY, BLADE DRIVE

$95.99

$

Usually ships in 2-11 days

0
