SC 254 BV (090077023) - Scotts Blower, 20 Volt Figure A Parts Diagram

Blower, 20 Volt

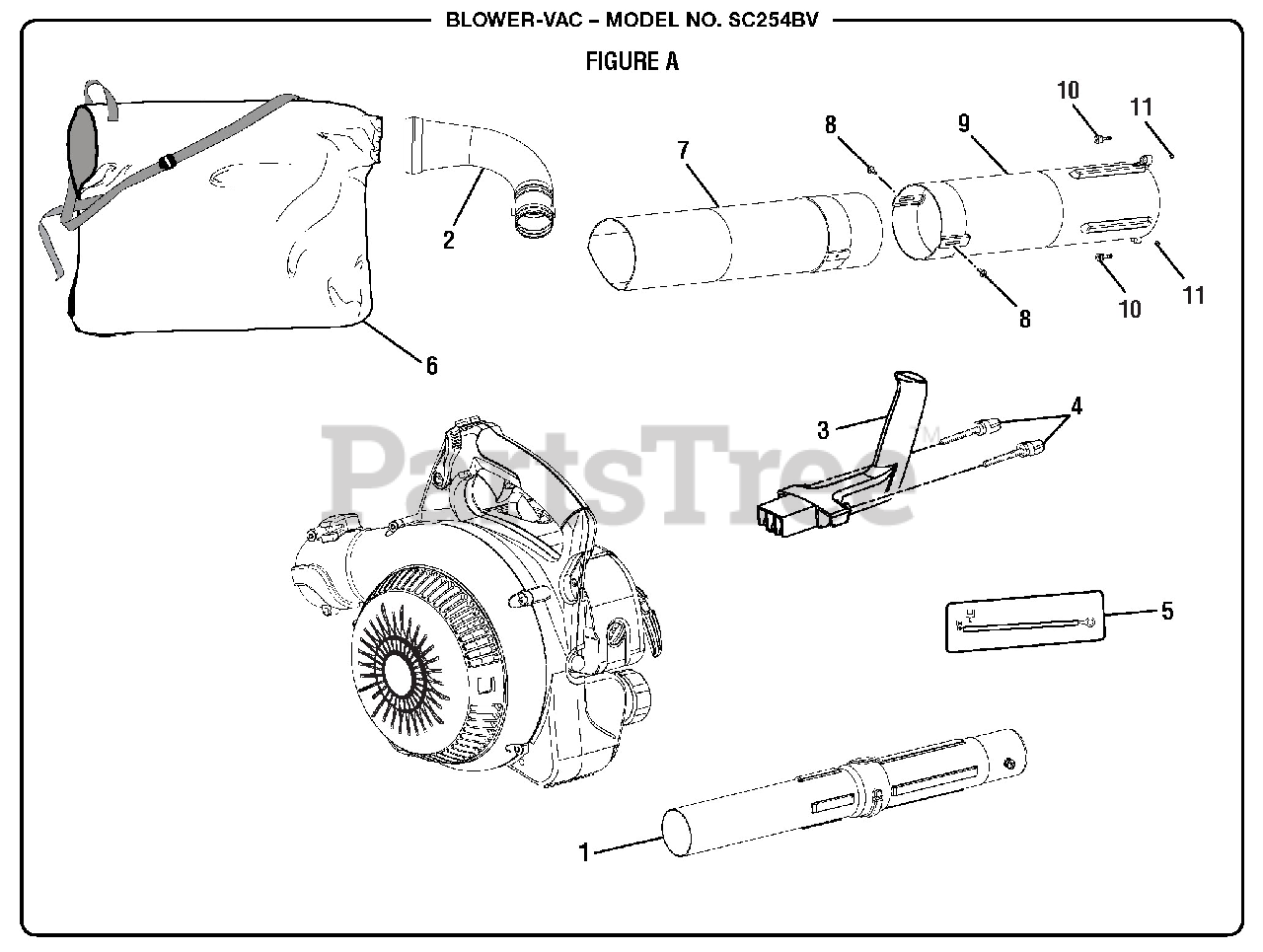

Figure A Parts Diagram

  • Title

1

Homelite 360015001

Upper and Lower Blower Tube Assembly

$

$

Not available

2

Homelite 570563007

Vacuum Bag Adaptor

$

$

Currently unavailable

3

Homelite 518180003

Vacuum Handle

$

$

Not available

4

Homelite 518273001

Vacuum Handle Knob

$1.49

$

In Stock, Qty 10

0

5

Homelite 120900007

Ground Wire Kit

$1.49

$

In Stock, only 3 left!

0

6

Homelite 900960001

Vacuum Bag w/Shoulder Strap

$23.99

$

In Stock, only 2 left!

0

7

Homelite 570562002

Lower Vacuum Tube

$

$

Not available

8

Homelite 660621001

Screw (10-14 x 1/2 in., T25 Torx T.F.)
(Superseded to 82632)

$2.49

$

In Stock, Qty 10

0

9

Homelite 580892002

Upper Vacuum Tube

$14.99

$

In Stock, only 2 left!

0

10

Homelite 660880001

Screw (1/4-20 x 3/4 in., Hex Hd.)

$2.49

$

In Stock, only 2 left!

0

11

Homelite 650027001

E-Ring (Retaining Ring)

$2.49

$

In Stock, only 4 left!

0

Homelite 120900107

High Altitude Kit

Note: NOT SHOWN

$17.99

$

Usually ships in 3-7 days

0

Homelite 991000407

Operator's Manual (960932011)

Note: NOT SHOWN

$

$

Currently unavailable
