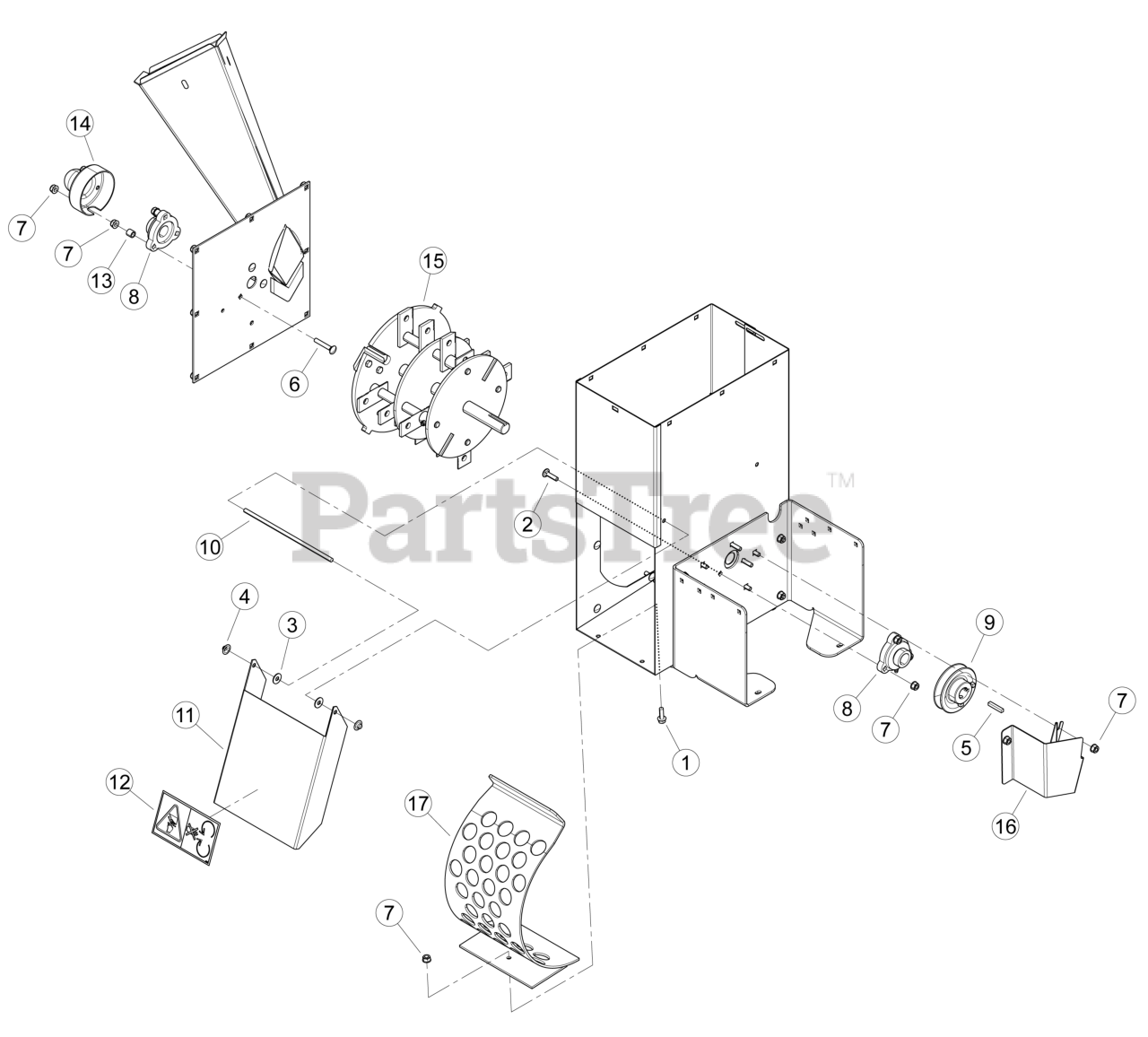

SC-3013 - Echo Chipper Shredder (SN: 210SCB000001 - 210SCB999999) Rotor & Bearings Parts Diagram

Chipper Shredder

Rotor & Bearings Parts Diagram

  • Title

1

Echo YH436000050

BOLT, 5/16 × 1 FLANGE NC

$1.49

$

Usually ships in 2-4 days

0

2

Echo YH434000060

BOLT, 5/16 × 1-1/4 GR5 CRG

$0.99

$

Usually ships in 2-4 days

0

3

Echo YH451000470

WASHER, 5/16" ID 7/8" OD NYLON FLAT

$1.49

$

Usually ships in 2-4 days

0

4

Echo YH452000660

PUSHNUT, 5/16" ZP

$1.49

$

Usually ships in 2-4 days

0

5

Echo YH469000050

KEY, 1/4 SQ × 1-1/2 LG PLAIN

$1.49

$

Usually ships in 2-4 days

0

6

Echo YH434000080

BOLT, 5/16 × 2" GR5 CRG NC ZP

$0.99

$

Usually ships in 2-4 days

0

7

Echo YH449000040

NUT, 5/16-18 NYLOCK FLANGE

$0.99

$

Usually ships in 2-4 days

0

8

Echo YH453000120

BEARING, 1" FLUSH MOUNT CAST W/ COLLAR

$62.99

$

Usually ships in 2-4 days

0

9

Echo YH472000040

PULLEY, CAST 4" OD 1" BORE B GRV

$61.99

$

Usually ships in 2-4 days

0

10

Echo YH466000440

SHAFT, DOOR PIVOT

$8.49

$

Usually ships in 2-4 days

0

11

Echo YH479000810

DOOR, DISCHARGE 8 HP W/ DECAL

Note: Includes Item 12

$72.99

$

Usually ships in 2-4 days

0

12

Echo YH653000180

DECAL, BLADE DANGER ISO

$4.49

$

Usually ships in 2-4 days

0

13

Echo YH475000090

SPACER, .54 OD × .50" LG

$3.99

$

Usually ships in 2-4 days

0

14

Echo YH468000110

CAP, ROTOR SHAFT END CAP RENTAL

$8.49

$

Usually ships in 2-4 days

0

15

Echo YH457000080

ASSEMBLY, WIDE ROTOR W/ RECT KNIVES

$735.99

$

Usually ships in 2-4 days

0

16

Echo YH479001030

SHIELD, LOWER

$28.99

$

Usually ships in 2-4 days

0

17

Echo 99944300002

WELDMENT, WIDE COARSE TAPERED

$111.99

$

Usually ships in 2-4 days

0
