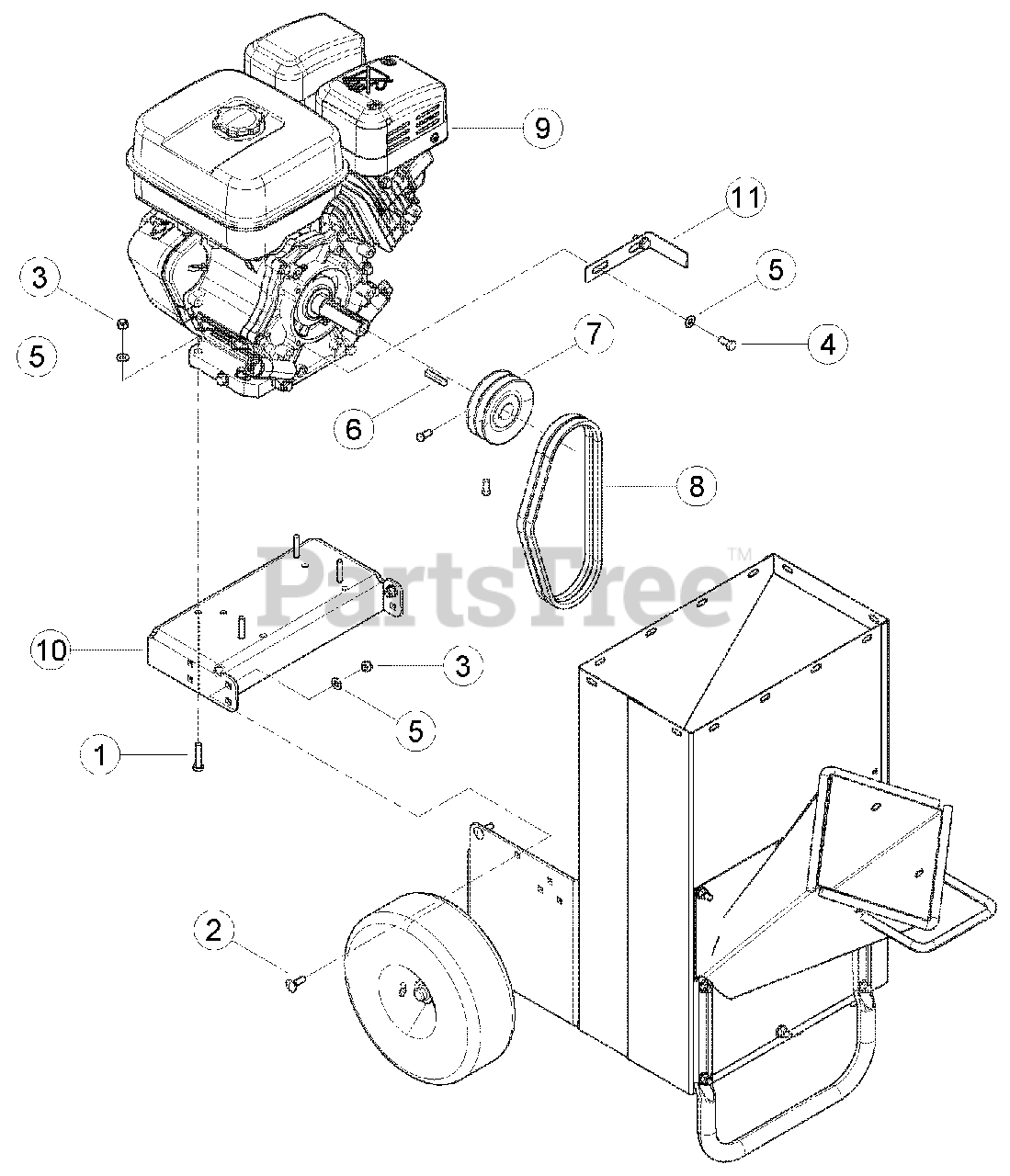

SC 3265 - Bear Cat 3" Chipper/Shredder, 265cc Subaru (SN: A08787 - C03277) Engine (SC3265) Parts Diagram

3" Chipper/Shredder, 265cc Subaru

Engine (SC3265) Parts Diagram

  • Title

1

15282

BOLT, 5/16 X 1-1/2 HEX HD GR5 ZP

$

$

Not available

2

Bear Cat 15301

BOLT, 5/16 X 1 CRG GR5 ZP

$

$

Not available

3

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

4

Bear Cat 15381

BOLT, 5/16-24 X 3/4 HHCS GR5 ZP

$0.99

$

Usually ships in 3-7 days

0

5

15416

WASHER, 5/16 SAE FLAT ZP

$

$

Not available

6

Bear Cat 15418

KEY, 1/4 SQUARE X 1-1/2 LONG PLAIN

$

$

Not available

7

Bear Cat 17995

PULLEY, 4X1 2A GROOVE

$124.99

$

Usually ships in 3-7 days

0

Bear Cat 15131

SET SCREW, 5/16-18 X 5/8 SQ HD

$

$

Not available

8

Bear Cat 17996

BELTS HAH29.1 EL MATCHED SET

$67.99

$

In Stock, only 1 left!

0

9

ENGINE, SUBARU 265CC HORIZONTAL (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR NEARESTIZED UBARU INDUSTRIAL ENGINE DEALER)

$

$

Not available

10

Bear Cat 74249-12

PLATE, ENGINE MOUNTING

$

$

Not available

11

Bear Cat 74374-12

GUIDE, BELT

$

$

Not available
