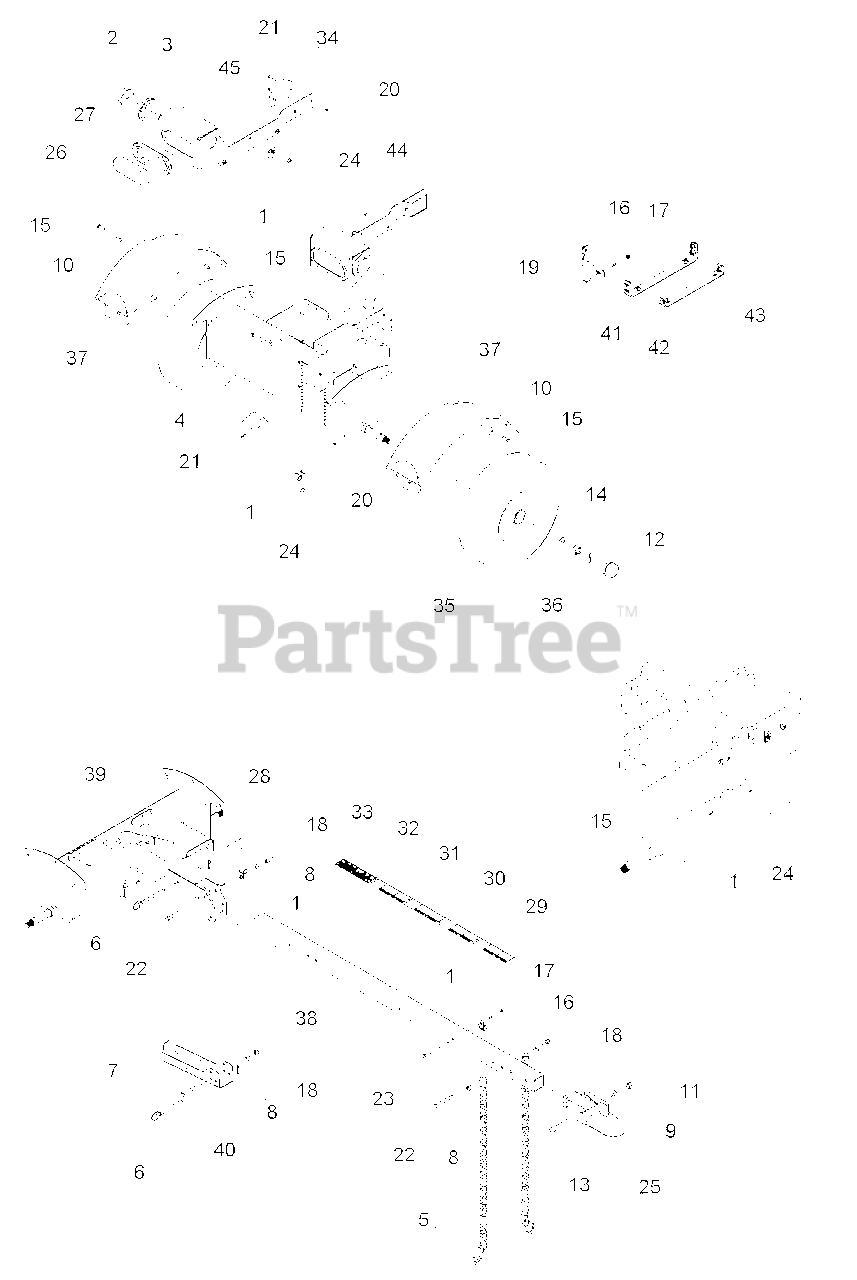

SC 3305 - Bear Cat 3" Chipper/Shredder, 305cc Briggs & Stratton (SN: D00339 & Above) Optional Trailer Parts Diagram

3" Chipper/Shredder, 305cc Briggs & Stratton

Optional Trailer Parts Diagram

  • Title

1

14048-00

CLAMP, 9/16 COATED

$

$

Not available

2

Bear Cat 14361-00

LIGHT, RED CLEARANCE

$

$

Not available

3

Bear Cat 14366-00

GROMMET, CLEARANCE LIGHT

$

$

Not available

4

Bear Cat 14368-00

LIGHT, LICENSE PLATE

$

$

Not available

5

Bear Cat 14381-00

CHAIN, SAFETY 5000 LB W/ LATCH

$

$

Not available

6

Bear Cat 14823-00

PIN, 3/8 HITCH

$

$

Not available

7

Bear Cat 15010

BOLT, 3/8 X 3-1/2 HEX HD GR5 ZP

$

$

Not available

8

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

9

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$0.99

$

Usually ships in 3-7 days

0

10

Bear Cat 15040

WASHER, 5/16 FENDER ZP

$0.99

$

Usually ships in 3-7 days

0

11

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$0.99

$

Usually ships in 3-7 days

0

12

15068

PIN, 5/32 X 1-1/4 COTTER ZP

$

$

Not available

13

Bear Cat 15086

BOLT, 1/2 X 3 HEX HD GR5 ZP

$

$

Not available

14

15098

WASHER, 3/4 SAE FLAT ZP

$

$

Not available

15

Bear Cat 15219

BOLT, 5/16 X 1 HEX HD GR5 NC ZP

$

$

Not available

16

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

17

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

18

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

19

Bear Cat 15396

BOLT, 5/16 X 7/8 HEX NC GR5 ZP

$

$

Not available

20

15397

NUT, 10/24 NYLOCK TYPE NM ZP

$

$

Not available

21

Bear Cat 15460

MACH. SCREW, #10-24 X 3/4 PAN HD PH ZP

$

$

Not available

22

Bear Cat 15501

BOLT, 3/8 X 3-1/4 HEX HD GR5 ZP

$

$

Not available

23

15560

BOLT, 5/16 X 2-3/4 HEX HD GR5

$

$

Not available

24

Bear Cat 15818-00

NUT, 5/16 FLANGE TOPLOCK

$0.99

$

Usually ships in 3-7 days

0

25

Bear Cat 17988

TRAILER HITCH COUPLER

$94.99

$

Usually ships in 3-7 days

0

26

Bear Cat 31736-00

TAIL LIGHT, OVAL LED

$54.99

$

Usually ships in 3-7 days

0

27

31737-00

GROMMET, OVAL TAIL LIGHT

$

$

Not available

28

Bear Cat 32158-00

DECAL, 4.80-8 LOAD RATING (LOG SPLITTER)

$

$

Not available

29

Bear Cat 32327-00

DECAL, SAFETY CHAINS

$8.49

$

Usually ships in 3-7 days

0

30

Bear Cat 32328-00

DECAL, TRAILER ELECTRICAL

$8.49

$

Usually ships in 3-7 days

0

31

Bear Cat 32329-00

DECAL, PINTLE SAFE COUPLING

$22.99

$

Usually ships in 3-7 days

0

32

32330-00

DECAL, CHECK WHEELS

$

$

Not available

33

Bear Cat 32345-00

DECAL, SAFE TOWING SPEED

$

$

Not available

34

Bear Cat 32347-00

LIGHT, AMBER SIDE MARKER
(Superseded to 74911-00)

$58.99

$

Usually ships in 3-7 days

0

35

Bear Cat 36093-00

ASSEMBLY, TIRE 4.8-8

$186.99

$

Usually ships in 3-7 days

0

36

Bear Cat 36169-00

NUT, SLOTTED 3/4-16 GRADE 2
(Superseded to 0101-0001-00B)

$3.99

$

Usually ships in 3-7 days

0

37

Bear Cat 76624-00

FENDER, BLACK PLASTIC DRILLED

$97.99

$

Usually ships in 3-7 days

0

38

Bear Cat 77191-12

TUBING, HITCH POLE

$174.99

$

Usually ships in 3-7 days

0

39

Bear Cat 77366-12

WELDMENT, SC 3" TRAILER

$839.99

$

Usually ships in 3-7 days

0

40

Bear Cat 77367-12

STAND, JACK

$82.99

$

Usually ships in 3-7 days

0

41

Bear Cat 77372-12

BRACKET, CORNER

$45.99

$

Usually ships in 3-7 days

0

42

Bear Cat 77373-12

BRACKET, ENGINE BASE

$56.99

$

Usually ships in 3-7 days

0

43

Bear Cat 77437-12

BRACKET, ENGINE BASE

$51.99

$

Usually ships in 3-7 days

0

44

Bear Cat 77485-12

BRACKET, RIGHT TAIL LIGHT

$177.99

$

Usually ships in 3-7 days

0

45

Bear Cat 77486-12

BRACKET, LEFT TAIL LIGHT

$177.99

$

Usually ships in 3-7 days

0

Bear Cat 16865

STRAP, 15-1/16 IN BLACK TIE

Note: (NOT SHOWN)

$1.99

$

Usually ships in 3-7 days

0

Bear Cat 32346-00

HARNESS, SMALL TRAILER LIGHT

Note: (NOT SHOWN)

$

$

Not available
