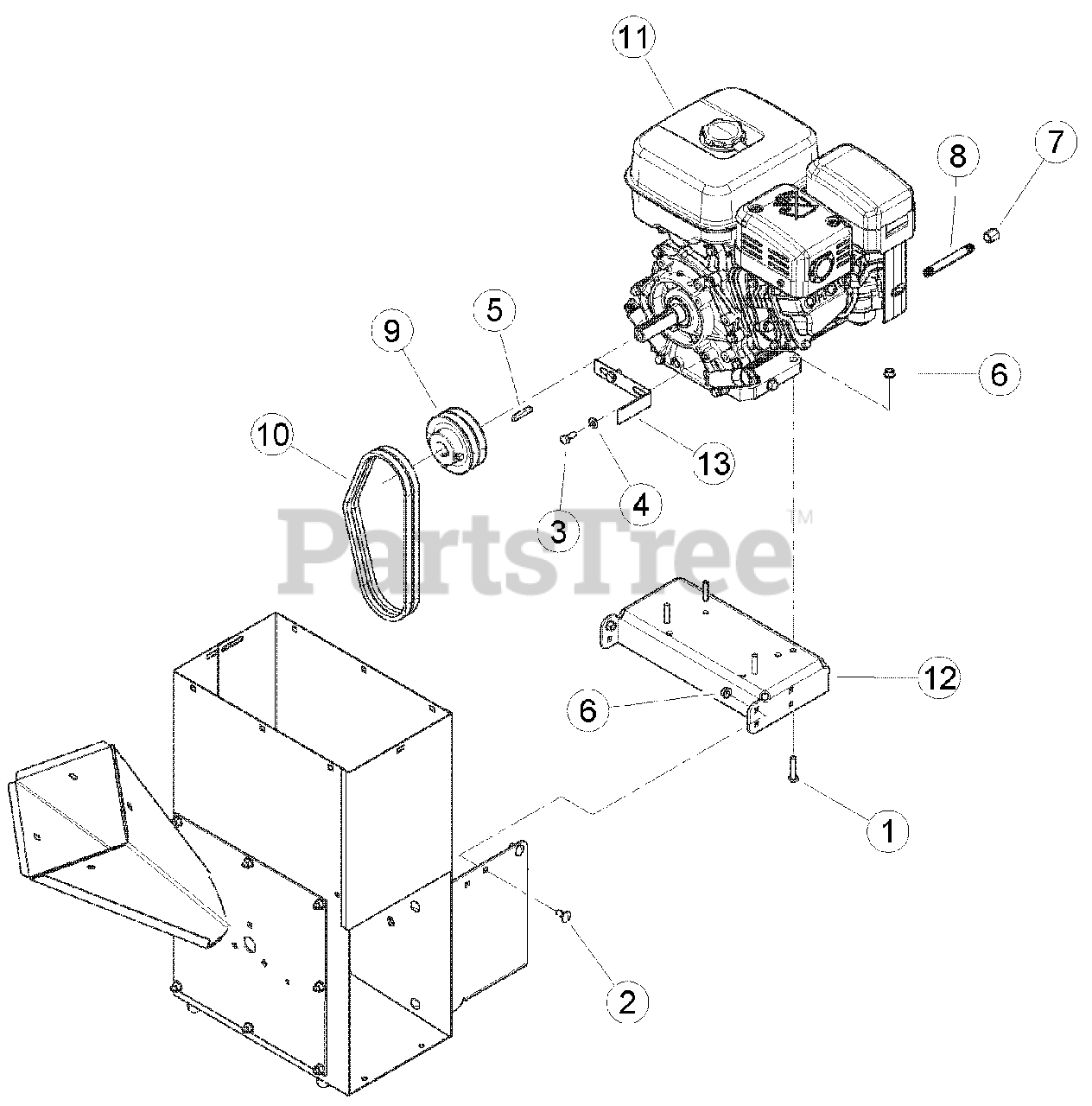

SC 3305 E - Bear Cat 3" Chipper/Shredder, 305cc Electric Start Briggs & Stratton (SN: C03478 - D00187) Engine - Double Belt (SC3265 & SC3342) Parts Diagram

3" Chipper/Shredder, 305cc Electric Start Briggs & Stratton

Engine - Double Belt (SC3265 & SC3342) Parts Diagram

  • Title

1

15282

BOLT, 5/16 X 1-1/2 HEX HD GR5 ZP

$

$

Not available

2

Bear Cat 15367

BOLT, 5/16 X 3/4 CRG GR5 NC ZP

$

$

Not available

3

Bear Cat 15381

BOLT, 5/16-24 X 3/4 HEX HD GR5 ZP

$0.99

$

Usually ships in 3-7 days

0

4

15416

WASHER, 5/16 SAE FLAT ZP

$

$

Not available

5

Bear Cat 15418

KEY, 1/4 SQUARE X 1-1/2 LONG PLAIN

$

$

Not available

6

Bear Cat 15818-00

NUT, 5/16 FLANGE TOPLOCK

$0.99

$

Usually ships in 3-7 days

0

7

Bear Cat 17496

PIPE CAP, 1/4" GALV. HEX HEAD

$11.99

$

Usually ships in 3-7 days

0

8

Bear Cat 17497

PIPE NIPPLE, 1/4 X 4 GALVANIZED

$

$

Not available

9

Bear Cat 17995

PULLEY, 4X1 2A GROOVE

$124.99

$

Usually ships in 3-7 days

0

Bear Cat 15131

SCREW, 5/16-18 X 5/8 SQ HD SET

$

$

Not available

10

Bear Cat 17996

BELTS HAH29.1 EL MATCHED SET

$67.99

$

In Stock, only 1 left!

0

11

ENGINE, SUBARU 265CC EX27 (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR NEAREST AUTHORIZED SUBARU INDUSTRIAL ENGINE DEALER)

$

$

Not available

11

ENGINE, 342CC B+S HORIZONTAL (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR NEAREST AUTHORIZED BRIGGS & STRATTON ENGINE DEALER)

$

$

Not available

12

Bear Cat 74249-12

PLATE, ENGINE MOUNTING

$

$

Not available

13

Bear Cat 74374-12

GUIDE, BELT

$

$

Not available
