SC 3305 E - Bear Cat 3" Chipper/Shredder, 305cc Electric Start Briggs & Stratton (SN: C03478 - D00187) Rotor & Bearings (NON-CE COMPLIANT) Parts Diagram

3" Chipper/Shredder, 305cc Electric Start Briggs & Stratton

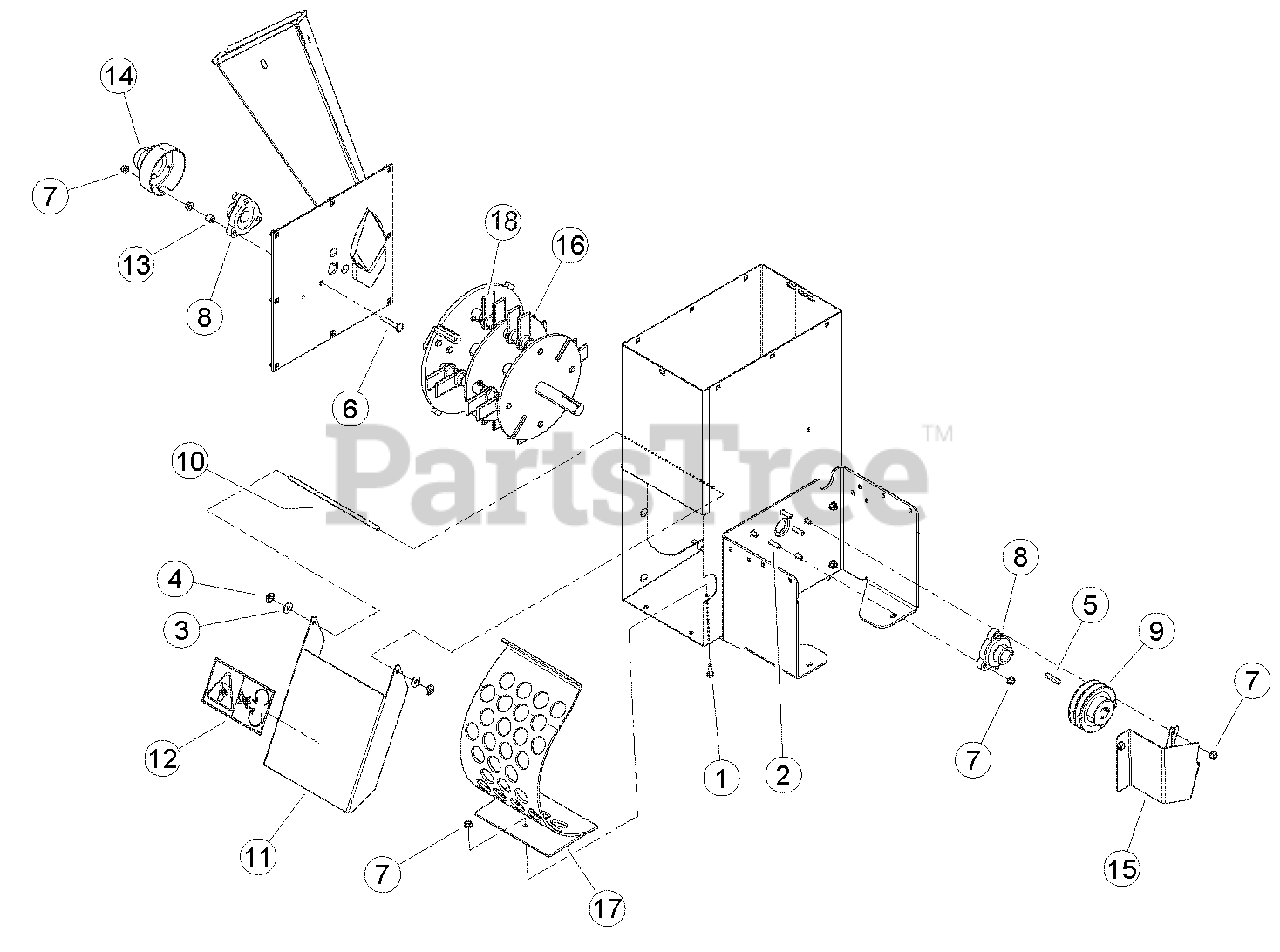

Rotor & Bearings (NON-CE COMPLIANT) Parts Diagram

  • Title

1

Bear Cat 15396

BOLT, 5/16 X 7/8 HEX HD NC GR5 ZP

$

$

Not available

2

Bear Cat 15398

BOLT, 5/16 X 1-1/4 CRG GR5 ZP

$

$

Not available

3

Bear Cat 15409

WASHER, 5/16 ID X 7/8 OD NYLON FLAT

$

$

Not available

4

Bear Cat 15411

PUSHNUT, 5/16 ZP

$1.49

$

Usually ships in 3-7 days

0

5

Bear Cat 15418

KEY, 1/4 SQUARE X 1-1/2 LONG PLAIN

$

$

Not available

6

Bear Cat 15477

BOLT, 5/16 X 2 CRG GR5 NC ZP

$

$

Not available

7

Bear Cat 15818-00

NUT, 5/16 FLANGE TOPLOCK

$0.99

$

Usually ships in 3-7 days

0

8

Bear Cat 16234

BEARING, 1" FLUSHMOUNT CAST W/COLLAR

$

$

Not available

9

Bear Cat 17995

PULLEY, 4X1 2A GROOVE

$124.99

$

Usually ships in 3-7 days

0

9

Bear Cat 17958

PULLEY, CAST 4" OD,1"BORE,B GRV (SC3206 ONLY)

$87.99

$

Usually ships in 3-7 days

0

10

Bear Cat 70088

SHAFT, DOOR PIVOT

$13.99

$

Usually ships in 3-7 days

0

11

Bear Cat 70195

DOOR, 8 HP DISCHARGE, SERVICE PART

Note: (INCLUDES ITEM 12)

$71.99

$

Usually ships in 3-7 days

0

11

Bear Cat 70194

DOOR, 5 HP DISCHARGE, SERVICE PART - SC3206 ONLY

Note: (INCLUDES ITEM 12)

$100.99

$

Usually ships in 3-7 days

0

12

Bear Cat 12175

DECAL, BLADE DANGER ISO

$7.49

$

In Stock, only 1 left!

0

13

Bear Cat 70285

SPACER .54 OD X .50 LG

$6.49

$

Usually ships in 3-7 days

0

14

Bear Cat 70760

CAP, ROTOR SHAFT END CAP

$14.99

$

Usually ships in 3-7 days

0

15

Bear Cat 74358-12

SHIELD, LOWER

$

$

Not available

16

ASSEMBLY, BALANCED ROTOR (REPLACED AND SUPERSEDED. FOR SERVICE OF ROTOR ASSEMBLY ORDER KIT #74209-00, ASSEMBLY WITH KNIVES)

$

$

Not available

16

ASSY, NARROW ROTOR W/ CAST FLAILS (SC3206 ONLY) (REPLACED AND SUPERSEDED. FOR SERVICE OF ROTOR ASSEMBLY ORDER KIT #77591-00, ASSEMBLY WITH KNIVES)

$

$

Not available

17

Bear Cat 77388-12

WELDMENT, WIDE COARSE TAPERED

$

$

Not available

17

Bear Cat 77384-12

WELDMENT, NAR. COARSE TAPERED (SC3206 ONLY)

$

$

Not available

18

SHREDDER FLAIL (REPLACED AND SUPERSEDED. FOR SERVICE ORDER KIT #70973, SHREDDER KNIVES KIT)

$

$

Not available

18

SHREDDER FLAIL (SC3206 ONLY) (REPLACED AND SUPERSEDED. FOR SERVICE ORDER KIT #77589-00, SHREDDER KNIVES KIT)

$

$

Not available
