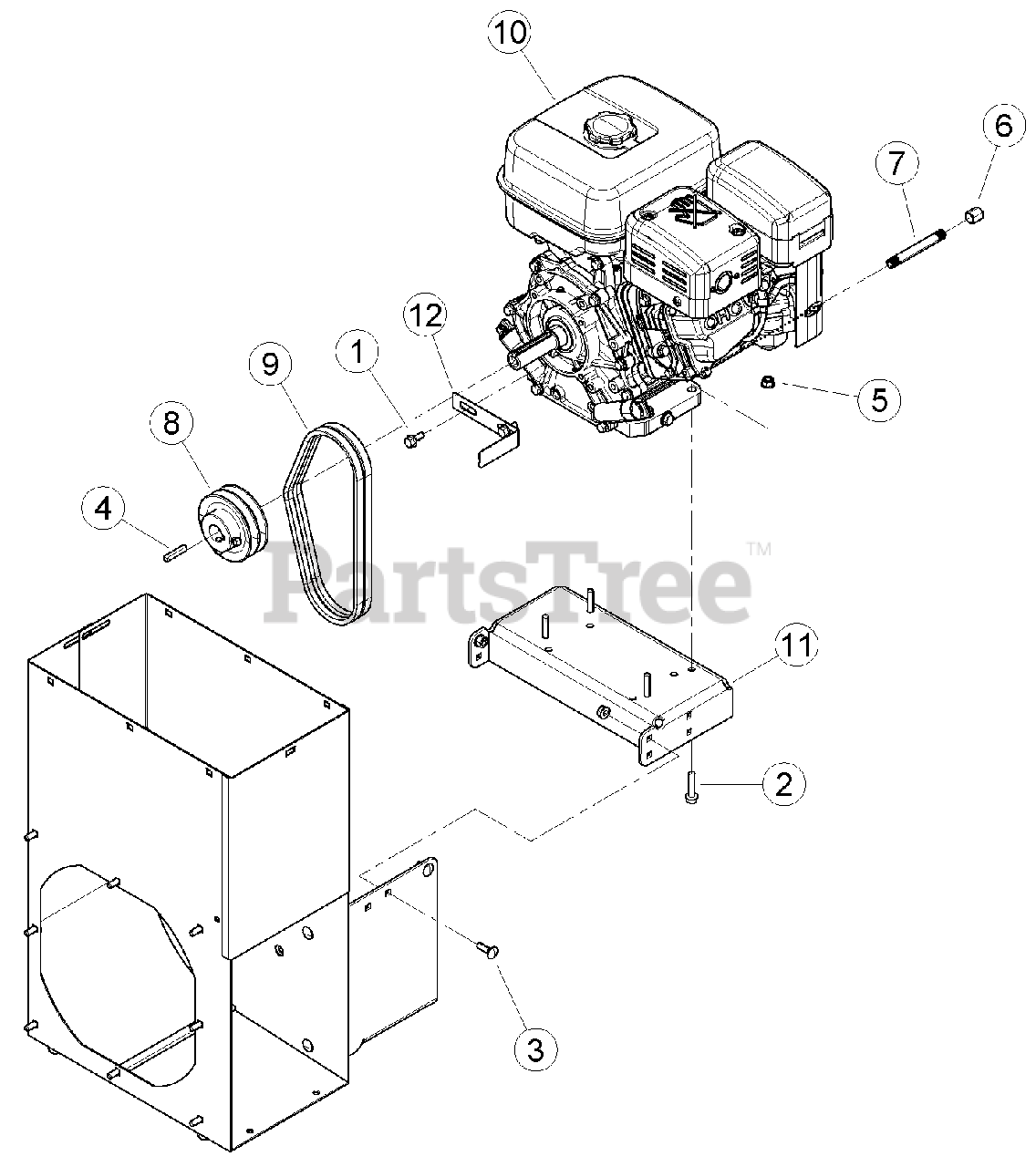

SC 3342 - Bear Cat 3" Chipper/Shredder, 342cc Briggs & Stratton (SN: D00339 & Above) Engine - Dual Belt Parts Diagram

3" Chipper/Shredder, 342cc Briggs & Stratton

Engine - Dual Belt Parts Diagram

  • Title

1

15118-00

BOLT, 5/16 X 3/4 SERR FLANGE NF

$

$

Not available

2

15122-00

BOLT, 5/16 X 1-1/2 FLANGE NC

$

$

Not available

3

Bear Cat 15301

BOLT, 5/16 X 1" GR5 CRG ZP

$

$

Not available

4

Bear Cat 15418

KEY, 1/4 SQUARE X 1-1/2 LONG PLAIN

$

$

Not available

5

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

6

Bear Cat 17496

PIPE CAP, 1/4" GALV. HEX HEAD

$11.99

$

Usually ships in 3-7 days

0

7

Bear Cat 17497

PIPE NIPPLE, 1/4 X 4" GALVANIZED

$

$

Not available

8

Bear Cat 17995

PULLEY, 4 X 1 2A GROOVE

$124.99

$

Usually ships in 3-7 days

0

9

Bear Cat 17996

BELTS, HAH29.1 EL MATCHED SET

$67.99

$

In Stock, only 1 left!

0

10

ENGINE, SUBARU 265CC EX27

Note: (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR NEAREST AUTHORIZED SUBARU INDUSTRIAL ENGINE DEALER)

$

$

Not available

10

ENGINE, 342CC B+S HORIZONTAL

Note: (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR NEAREST AUTHORIZED BRIGGS & STRATTON INDUSTRIAL ENGINE DEALER)

$

$

Not available

11

Bear Cat 74249-12

PLATE, ENGINE MOUNTING

$

$

Not available

12

Bear Cat 74374-12

GUIDE, BELT

$

$

Not available
