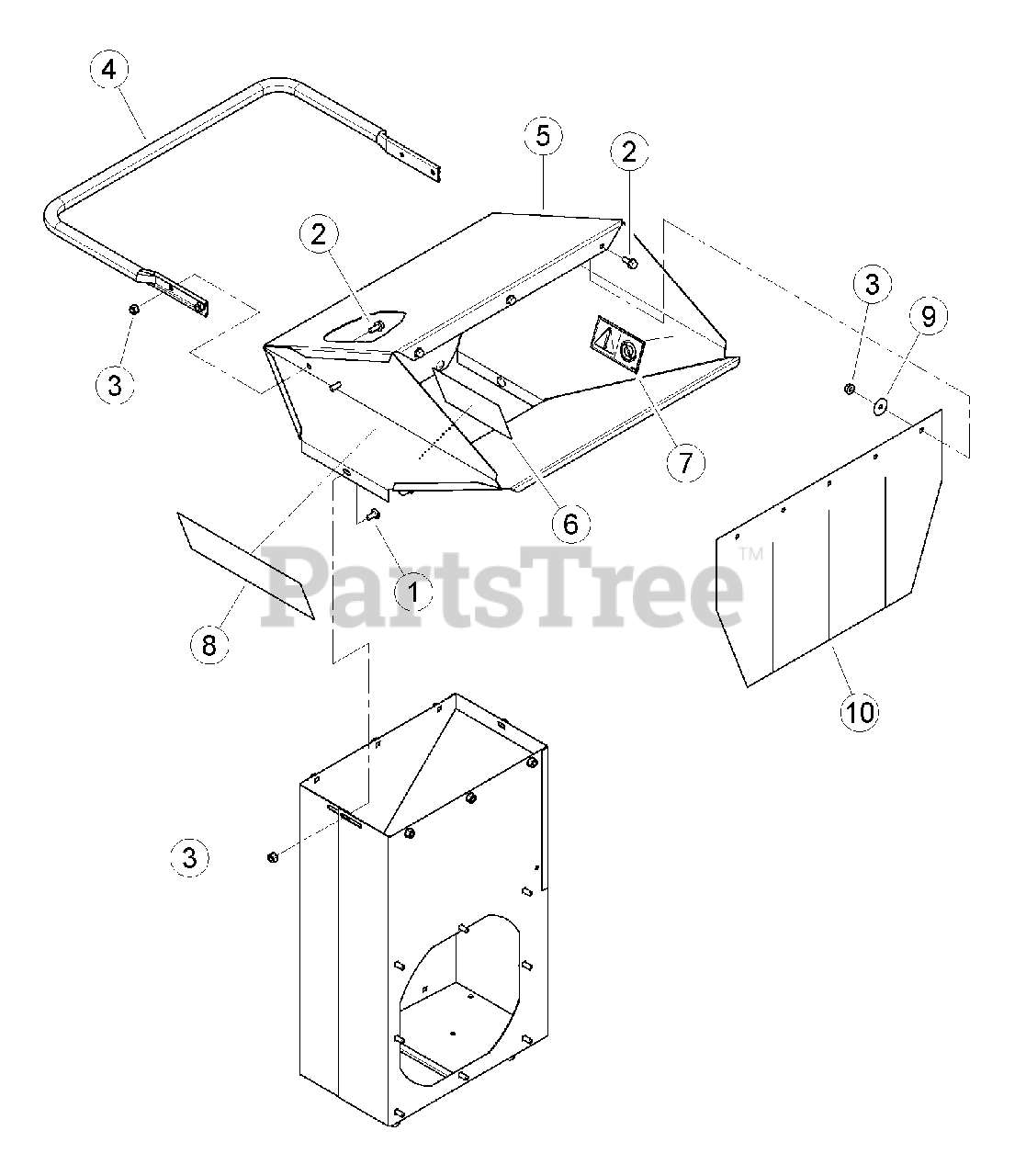

SC 3420 - Bear Cat 3" Chipper/Shredder, 420cc Briggs & Stratton (SN: G01443 & Above) Hopper NON-CE COMPLIANT Parts Diagram

3" Chipper/Shredder, 420cc Briggs & Stratton

Hopper NON-CE COMPLIANT Parts Diagram

  • Title
1

0103-0909-00

BOLT, 5/16-18 X 3/4 CRG SN GR5

$

$

Not available

2

Bear Cat 15117-00

BOLT, 5/16 X 3/4 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

3

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

4

Bear Cat 71717

HANDLE, RENTAL HOPPER

$

$

Not available

5

Bear Cat 77312-00

ASSEMBLY, WIDE BODY HOPPER

Note: (INCLUDES ITEMS 2, 3 & 6-10)

$453.99

$

Usually ships in 3-7 days

0

6

Bear Cat 12175

DECAL, BLADE DANGER ISO

$6.99

$

In Stock, only 1 left!

0

7

Bear Cat 12176

DECAL, SHREDDER SIZE ISO

$10.99

$

Usually ships in 3-7 days

0

8

Bear Cat 14301-00

DECAL, ECHO BEARCAT 12.00 X 4.00

$16.99

$

In Stock, only 2 left!

0

9

Bear Cat 15040

WASHER, 5/16 FENDER ZP

$0.99

$

Usually ships in 3-7 days

0

2

Bear Cat 15117-00

BOLT, 5/16 X 3/4 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

3

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

10

Bear Cat 70980

BELTING, RENTAL HOPPER

$38.99

$

Usually ships in 3-7 days

0
