SC-4213 - Echo Chipper Shredder (SN: 220SCB000001 - 220SCB999999) Hopper Parts Diagram

Chipper Shredder

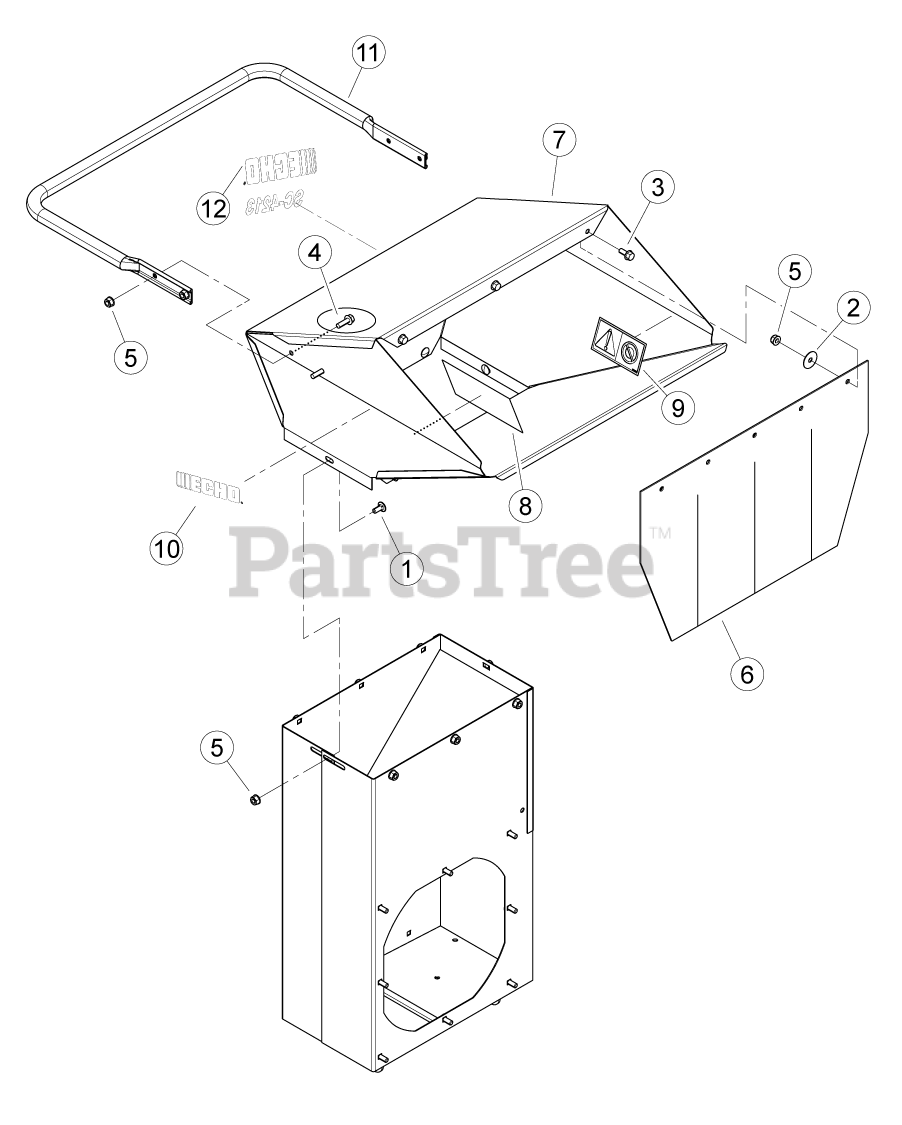

Hopper Parts Diagram

  • Title
1

Echo YH434000110

BOLT, 5/16-18 × 3/4 SN GR5 CRG

$0.99

$

Usually ships in 2-4 days

0

2

Echo YH451000070

WASHER, 5/16" FENDER ZP

$0.99

$

Usually ships in 2-4 days

0

3

Echo YH436000010

BOLT, 5/16 × 3/4 FLANGE NC

$0.99

$

Usually ships in 2-4 days

0

4

Echo YH436000050

BOLT, 5/16 × 1 FLANGE NC

$1.49

$

Usually ships in 2-4 days

0

5

Echo YH449000040

NUT, 5/16-18 NYLOCK FLANGE

$0.99

$

Usually ships in 2-4 days

0

6

Echo YH479000840

BELTING, RENTAL HOPPER

$28.99

$

Usually ships in 2-4 days

0

7

Echo YH479002200

ASSEMBLY, WIDE BODY RENTAL HOPPER W/ DECALS

Note: Includes Items 8, 9, 10 & 12

$266.99

$

Usually ships in 2-4 days

0

8

Echo YH653000180

DECAL, BLADE DANGER ISO

$4.49

$

Usually ships in 2-4 days

0

9

Echo YH653000190

DECAL, SHREDDER SIZE ISO

$8.49

$

Usually ships in 2-4 days

0

10

Echo YH653000670

DECAL, ECHO

$7.99

$

Usually ships in 2-4 days

0

11

Echo YH479000970

HANDLE, RENTAL HOPPER

$106.99

$

Usually ships in 2-4 days

0

12

Echo YH653000490

DECAL, MODEL SC-4213

$15.99

$

Usually ships in 2-4 days

0
