SC 5540 B - Bear Cat 5" Chipper/Shredder Blower, 540cc PTO Driven (SN: D00001 & Above) Chipper/Shredder Rotor Components Parts Diagram

5" Chipper/Shredder Blower, 540cc PTO Driven

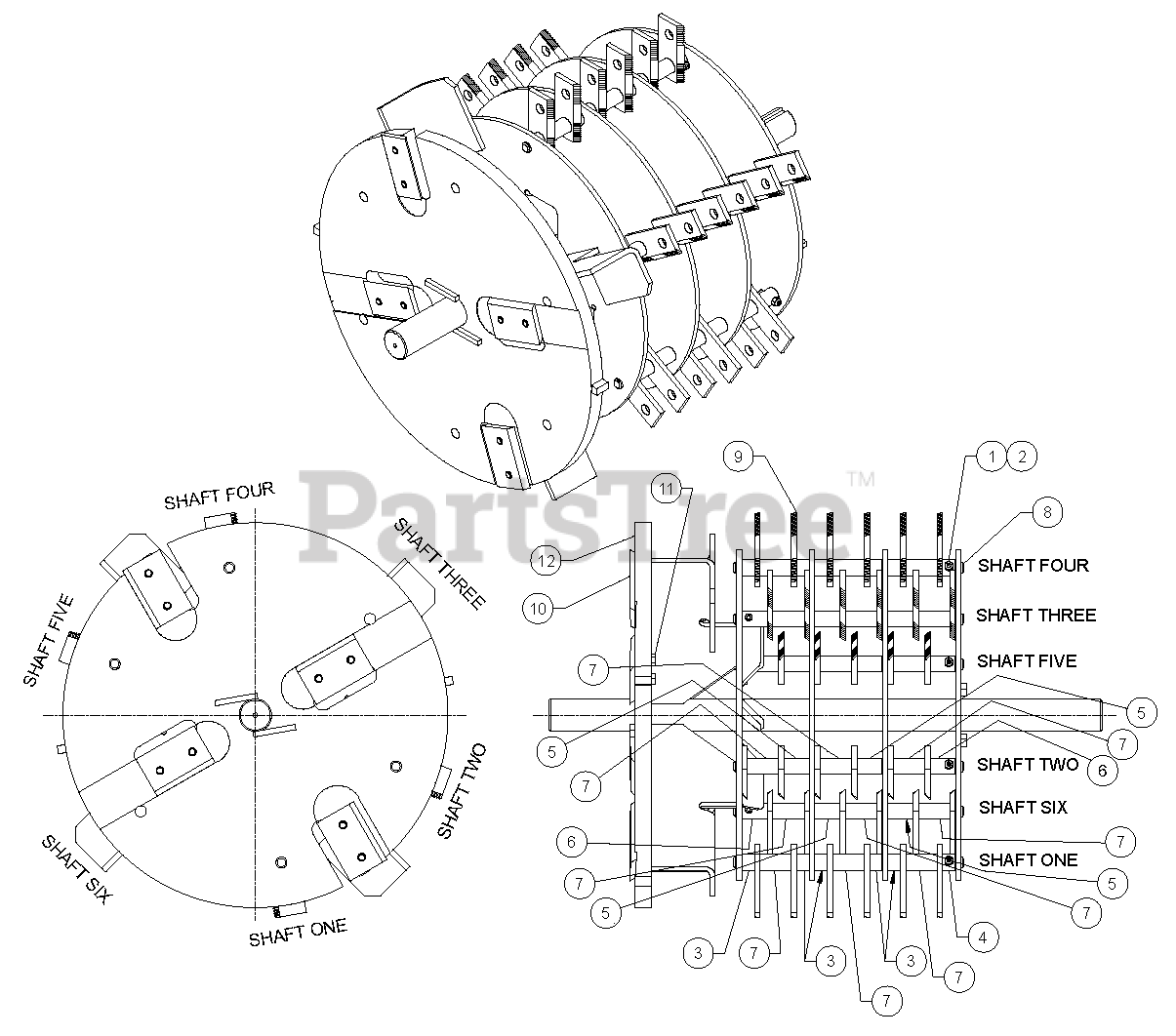

Chipper/Shredder Rotor Components Parts Diagram

  • Title

1

15397

NUT, #10 X 24 NYLOCK

$

$

Not available

2

Bear Cat 15466

SCREW, 10-24 X 1-1/8"

$2.49

$

Usually ships in 3-7 days

0

3

Bear Cat 70367

SHORT SPACER .75 X .59 (LARGE C/S)

$9.99

$

Usually ships in 3-7 days

0

4

Bear Cat 70368

SHORT SPACER .75 X .59 W/HOLE (LARGE C/S)

$11.99

$

Usually ships in 3-7 days

0

5

Bear Cat 70369

SPACER, .75 X 1.18

$15.99

$

Usually ships in 3-7 days

0

6

Bear Cat 70370

MEDIUM SPACER-BORED .75 X 1.18 W/HOLE (LARGE C/S)

$17.99

$

Usually ships in 3-7 days

0

7

Bear Cat 70371

LONG SPACER .75 X 1.47 (LARGE C/S)

$18.99

$

Usually ships in 3-7 days

0

8

Bear Cat 70381

ROTOR KNIFE SHAFT (LARGE C/S)
(Superseded to 77631-00)

$48.99

$

Usually ships in 3-7 days

0

9

SHREDDING KNIFE, RECTANGULAR

Note: (FOR SERVICE ORDER KIT 70972-00, SHREDDER KNIFE)

$

$

Not available

10

BLADE, TWO EDGE CHIPPER

Note: (FOR SERVICE ORDER KIT 72493, CHIPPER BLADE)

$

$

Not available

11

Bear Cat 15447

BOLT, 5/16" X 1" HEX HD.

$

$

Not available

12

Bear Cat 73365-00

5 INCH C/S ROTOR WELDMENT

$1863.99

$

Usually ships in 3-7 days

0
