SC 5540 - Bear Cat 5" Chipper/Shredder, 540cc PTO Driven (SN: D00001 & Above) Front Housing (SN: E01244 - CURRENT) Parts Diagram

5" Chipper/Shredder, 540cc PTO Driven

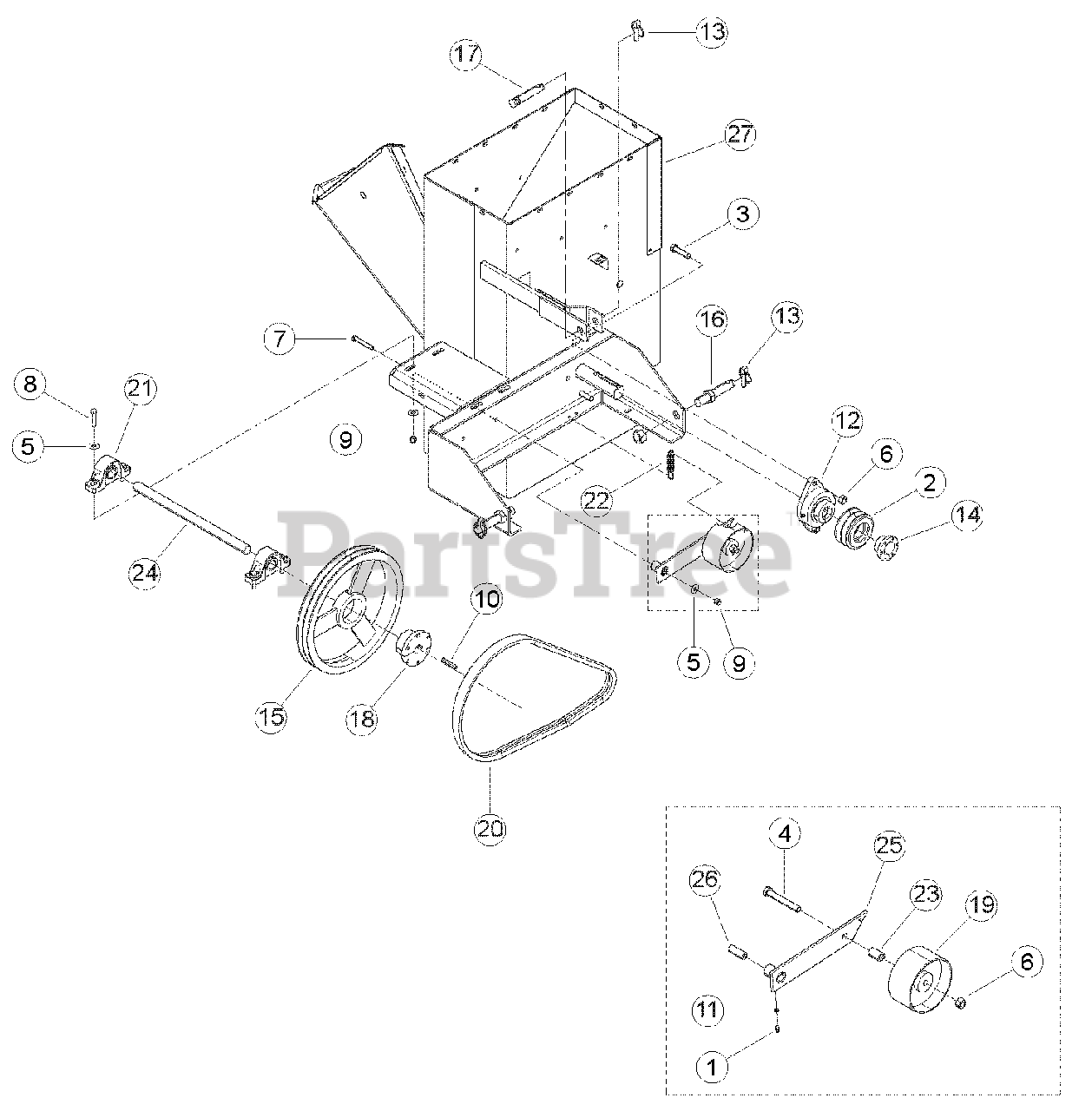

Front Housing (SN: E01244 - CURRENT) Parts Diagram

  • Title

1

Bear Cat 12275

FITTING, 1/4 SELF-TAP GREASE

$

$

Not available

2

Bear Cat 32908-00

SHEAVE, 2B3.4 SH,

$84.99

$

Usually ships in 3-7 days

0

3

Bear Cat 15015

BOLT, 1/2 X 2 HEX HD GR5 ZP

$1.49

$

Usually ships in 3-7 days

0

4

15016

BOLT, 1/2 X 3-1/2 HEX HD GR5 ZP

$

$

Not available

5

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

6

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$0.99

$

Usually ships in 3-7 days

0

7

Bear Cat 15116

BOLT, 3/8 X 2-1/2 HEX HD GR5 ZP

$

$

Not available

8

Bear Cat 15141

BOLT, 3/8 X 1-3/4 HEX HD GR5 ZP

$

$

Not available

9

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

10

Bear Cat 15391

KEY, 1/4 SQUARE X 2 LONG PLAIN

$

$

Not available

11

Bear Cat 15584

WASHER, .254 X .400 X .048 FLAT

$

$

Not available

12

Bear Cat 16004

BEARING, 2 BOLT FLANGE 1-1/2" BORE

$87.99

$

Usually ships in 3-7 days

0

13

Bear Cat 16015

PIN, 7/16 X 1-3/4 LYNCH

$

$

Not available

14

Bear Cat 16016

BUSHING, SH 1-1/2"

$63.99

$

Usually ships in 3-7 days

0

15

Bear Cat 16017

SHEAVE, 2B13.6 SK

$274.99

$

Usually ships in 3-7 days

0

16

Bear Cat 16019

PIN, LIFT ARM 7/8 X 5 LONG

$27.99

$

Usually ships in 3-7 days

0

17

Bear Cat 16020

PIN, TOP LINK 3/4 X 4-1/2 LONG

$15.99

$

Usually ships in 3-7 days

0

18

Bear Cat 16083

BUSHING, 1" SK

$69.99

$

Usually ships in 3-7 days

0

19

Bear Cat 16230

PULLEY, IDLER 5" X 2.50"

$90.99

$

Usually ships in 3-7 days

0

20

Bear Cat 32883-00

BELT 2RB X 56

$165.99

$

Usually ships in 3-7 days

0

21

Bear Cat 17667

PILLOW BLOCK BEARING 1"

$70.99

$

Usually ships in 3-7 days

0

22

Bear Cat 17692

SPRING, 3/4"OD EXTENSION

$12.99

$

In Stock, only 2 left!

0

23

Bear Cat 70369

SPACER, .75 X 1.18

$15.99

$

Usually ships in 3-7 days

0

24

Bear Cat 70420

JACKSHAFT, PTO C/S

$87.99

$

Usually ships in 3-7 days

0

25

Bear Cat 70691

WELDMENT, PTO IDLER ARM

$

$

Not available

26

Bear Cat 70694

SPACER .63 X 1.63

$16.99

$

Usually ships in 3-7 days

0

27

Bear Cat 70710-35

WELDMENT, PTO C/S FRAME

$

$

Not available
