SC 5540 - Bear Cat 5" Chipper/Shredder, 540cc PTO Driven (SN: D00001 & Above) Rear Housing Parts Diagram

5" Chipper/Shredder, 540cc PTO Driven

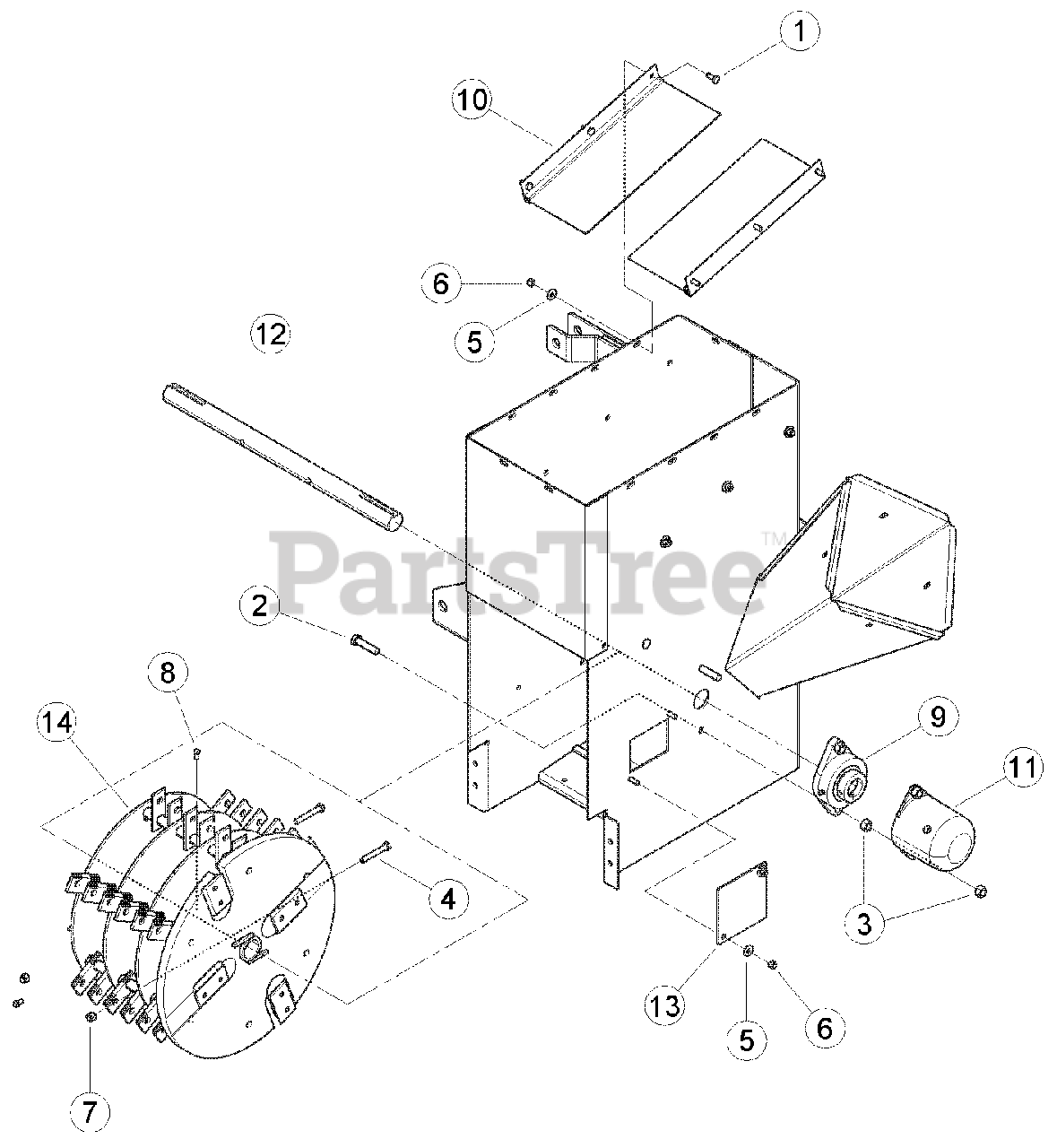

Rear Housing Parts Diagram

  • Title

1

Bear Cat 15003

BOLT, 5/16 X 3/4 HEX HD GR5 ZP

$

$

Not available

2

Bear Cat 15015

BOLT, 1/2 X 2 HEX HD GR5 ZP

$1.49

$

Usually ships in 3-7 days

0

3

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$0.99

$

Usually ships in 3-7 days

0

4

Bear Cat 15116

BOLT, 3/8 X 2-1/2 HEX HD GR5 ZP

$

$

Not available

5

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

6

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

7

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

8

Bear Cat 15453

SET SCREW, 5/16-18 X 1/2 SQ HD,CUP

$

$

Not available

9

Bear Cat 16004

BEARING, 2 BOLT FLANGE 1-1/2" BORE

$87.99

$

Usually ships in 3-7 days

0

10

Bear Cat 16068

BRUSH, INLET

$93.99

$

Usually ships in 3-7 days

0

11

Bear Cat 16460

CAP, LARGE SHAFT

$

$

Not available

12

Bear Cat 70379

SHAFT, LARGE C/S ROTOR

$145.99

$

Usually ships in 3-7 days

0

13

Bear Cat 70396-35

COVER, BLADE ACCESS

$

$

Not available

14

Bear Cat 70969

ASSY, COMM ROTOR W/RECT KNIVES (SEE PAGE 14 FOR DETAILS)

$2314.99

$

Usually ships in 3-7 days

0
