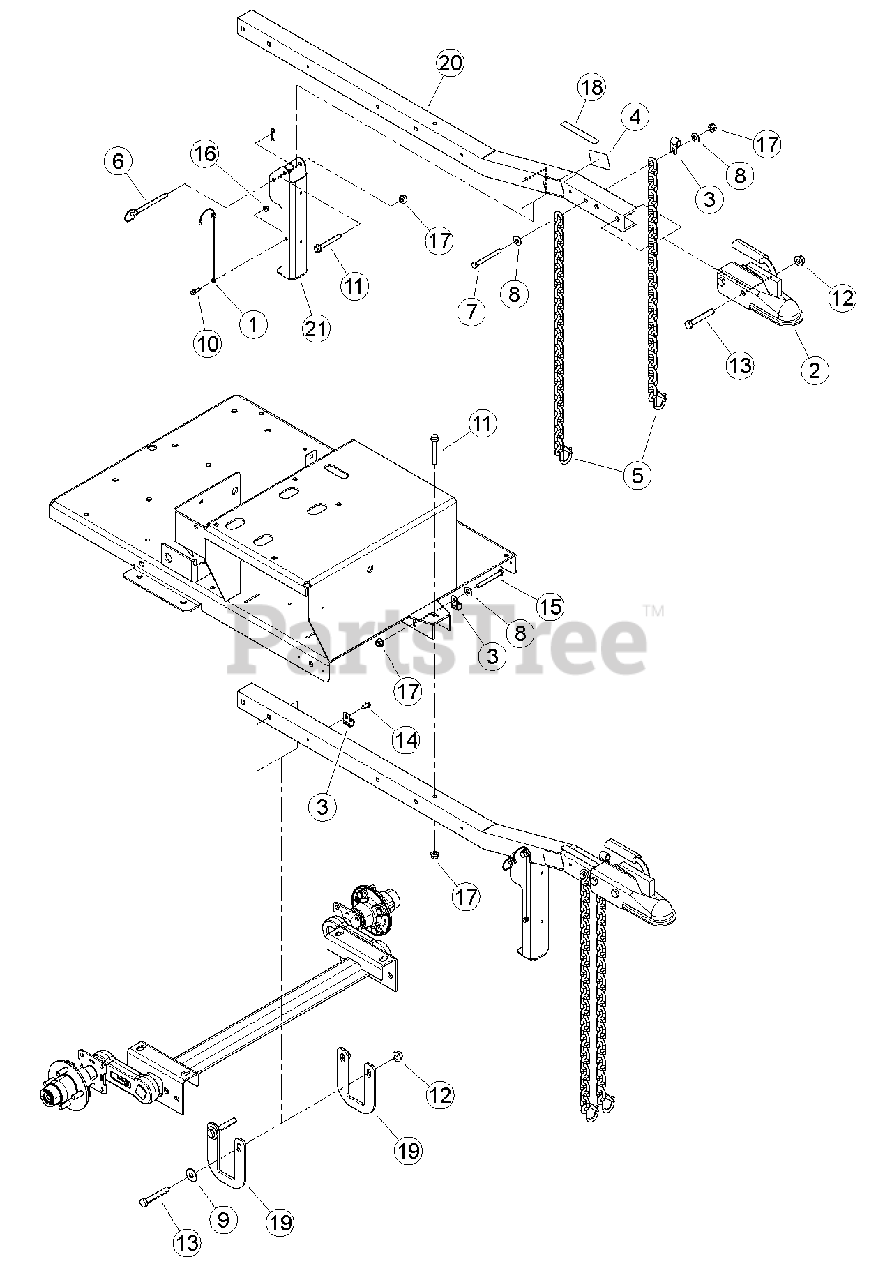

SC 5627 B - Bear Cat 5" Chipper/Shredder Blower, 627cc Briggs & Stratton (SN: 5VJAA0215HW005514 & Above) Hitch (CE Compliant) Parts Diagram

5" Chipper/Shredder Blower, 627cc Briggs & Stratton

Hitch (CE Compliant) Parts Diagram

  • Title

1

12530

LANYARD, NYLON

$

$

Not available

2

Bear Cat 12536

COUPLER, 50 MM BALL

$118.99

$

Usually ships in 3-7 days

0

3

14048-00

CLAMP, 9/16 COATED

$

$

Not available

4

Bear Cat 14375-00

REFLECTOR, WIDE ANGLE AMBER

$5.99

$

Usually ships in 3-7 days

0

5

Bear Cat 14381-00

CHAIN, SAFETY 5000 LB W/ LATCH

$

$

Not available

6

Bear Cat 14823-00

PIN, 3/8 HITCH

$

$

Not available

7

Bear Cat 15010

BOLT, 3/8 X 3-1/2" HEX HD GR5 ZP

$

$

Not available

8

Bear Cat 15031

WASHER, 3/8 FLAT

$

$

Not available

9

Bear Cat 15034

WASHER, 1/2 FLAT

$0.99

$

Usually ships in 3-7 days

0

10

15079-00

BOLT, 1/4-20 X 3/4 HWH GR5 CZP

$

$

Not available

11

15155-00

BOLT, 3/8 X 3 FLANGE NC

$

$

Not available

12

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

13

Bear Cat 15173

BOLT, 1/2 X 3-1/4 HCS GR5 ZP

$

$

Not available

14

15176

SCREW, 11/32-12 X 7/8 HWH T-AB

$

$

Not available

15

Bear Cat 15501

BOLT, 3/8 X 3-1/4 HEX HD GR5 ZP

$

$

Not available

16

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK FLANGE

$0.99

$

Usually ships in 3-7 days

0

17

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

18

Bear Cat 16875

DECAL, HITCH LOAD

$12.99

$

Usually ships in 3-7 days

0

19

Bear Cat 71846-12

PLATE, HITCH SADDLE

$

$

Not available

20

Bear Cat 76803-12

POLE, C/S HITCH

$

$

Not available

21

Bear Cat 76804-12

WELDMENT, STAND JACK

$

$

Not available
