SC 5627 B - Bear Cat 5" Chipper/Shredder Blower, 627cc Briggs & Stratton (SN: 5VJAA0215HW005514 & Above) Idler Parts Diagram

5" Chipper/Shredder Blower, 627cc Briggs & Stratton

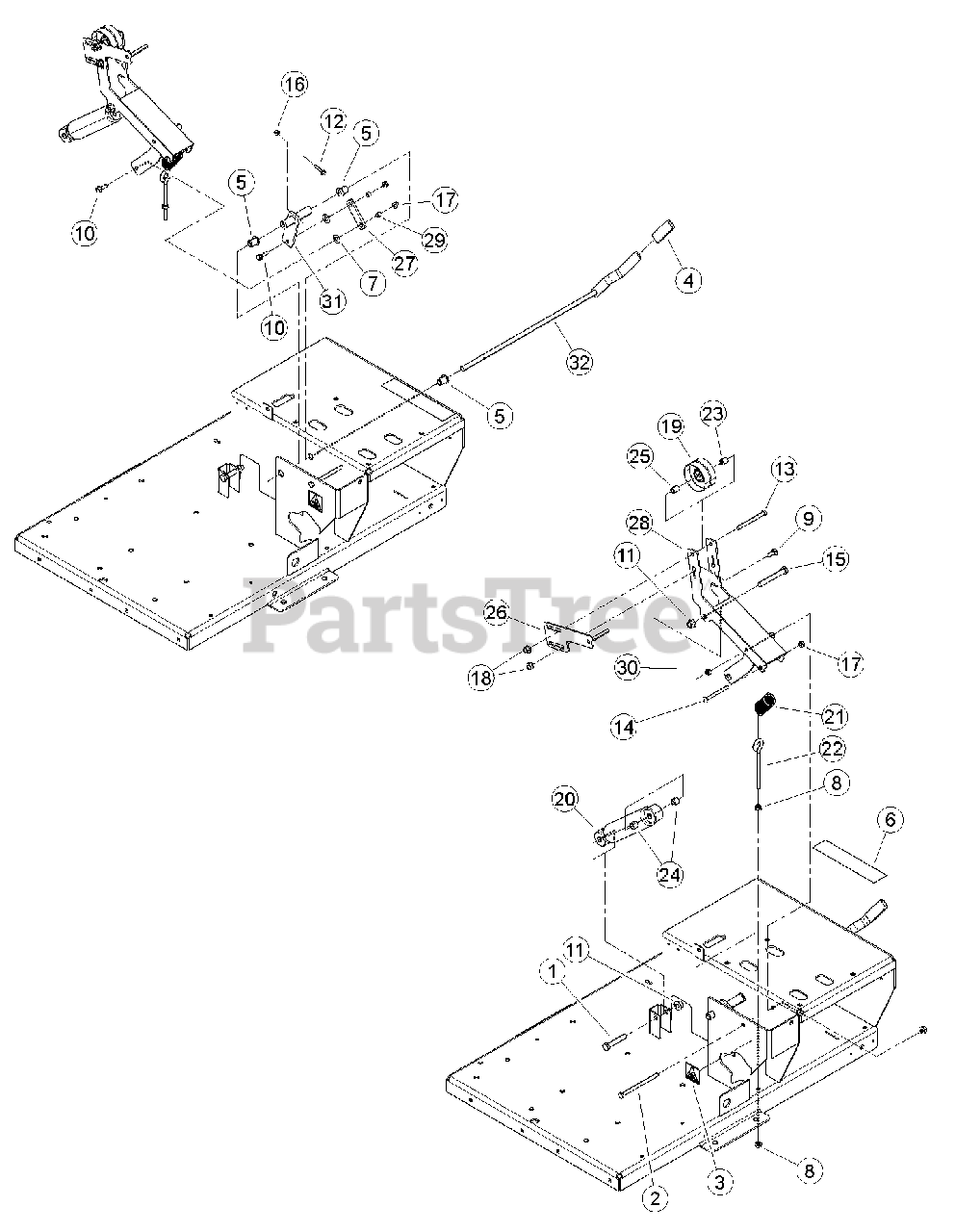

Idler Parts Diagram

  • Title

1

0103-0756-00

BOLT, 1/2 X 2-3/4 HEX GR5 ZP

$

$

Not available

2

0103-0848-00

BOLT, 3/8 X 5-1/2 HEX GR5 ZP

$

$

Not available

3

Bear Cat 12174

DECAL, SHIELD DANGER ISO

$4.99

$

Usually ships in 3-7 days

0

4

Bear Cat 14076-00

GRIP, CLUTCH HANDLE

$5.99

$

Usually ships in 3-7 days

0

5

Bear Cat 14236-00

BUSHING, 1/2 X 1 FLANGE LUBE

$9.49

$

Usually ships in 3-7 days

0

6

Bear Cat 14302-00

DECAL, CHIPPER ENGAGEMENT

$13.99

$

Usually ships in 3-7 days

0

7

Bear Cat 14640-00

WASHER, 1/2 INCH NYLON

$2.99

$

Usually ships in 3-7 days

0

8

Bear Cat 15051

NUT, 3/8-16 SERRATED FLANGE

$

$

Not available

9

15057

BOLT, 3/8-16 X 1 GR5 CRG

$

$

Not available

10

Bear Cat 15120-00

BOLT, 5/16 X 1 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

11

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

12

15165-00

BOLT, 1/4 X 1-1/4 FLANGE NC

$

$

Not available

13

15272

BOLT, 3/8 X 4" HHCS GR5 NC ZP

$

$

Not available

14

Bear Cat 15536

BOLT, 5/16 X 3-1/2 GR5 CRG ZP

$1.99

$

Usually ships in 3-7 days

0

15

15549

BOLT, 1/2 X 3-3/4 HHCS GR5 NC ZP

$

$

Not available

16

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK FLANGE

$0.99

$

Usually ships in 3-7 days

0

17

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

18

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

19

Bear Cat 16319

PULLEY, 3-1/4 FLAT IDLER

$73.99

$

Usually ships in 3-7 days

0

20

Bear Cat 16786

ABSORBER, IDLER SHOCK

$

$

Not available

21

Bear Cat 17415

SPRING, 1.25 OD X 3.50 LG X .148 WD

$

$

Not available

22

17804

EYEBOLT, 3/8" X 5" LG 4-1/4 THD ZP

$

$

Not available

23

Bear Cat 70362-12

SPACER, .63 X .63 PULLEY

$

$

Not available

24

Bear Cat 70367

SPACER, .75 X .59

$7.99

$

Usually ships in 3-7 days

0

25

Bear Cat 75323-12

SPACER, 5/8 OD X 11 GA X .760

$

$

Not available

26

Bear Cat 76847-12

WELDMENT, PIVOT ROD

$

$

Not available

27

Bear Cat 76848-12

PLATE, CONNECTING ARM

$

$

Not available

28

Bear Cat 76981-12

WELDMENT, IDLE ARM

$

$

Not available

29

Bear Cat 76985-00

SPACER, 1/2" OD X 14GA WA

$6.99

$

Usually ships in 3-7 days

0

30

Bear Cat 76987-12

SPACER, 5/8" OD X 3/8" ID X 0.28"

$

$

Not available

31

Bear Cat 77008-12

WELDMENT, PIVOT ARM

$

$

Not available

32

Bear Cat 77011-12

WELDMENT, HANDLE

$

$

Not available
