SC 5720 B - Bear Cat 5" Chipper/Shredder Blower, 720cc Subaru (SN: 5VJAA0010BW002960 - 5VJAA0013CW003742) Chute Parts Diagram

5" Chipper/Shredder Blower, 720cc Subaru

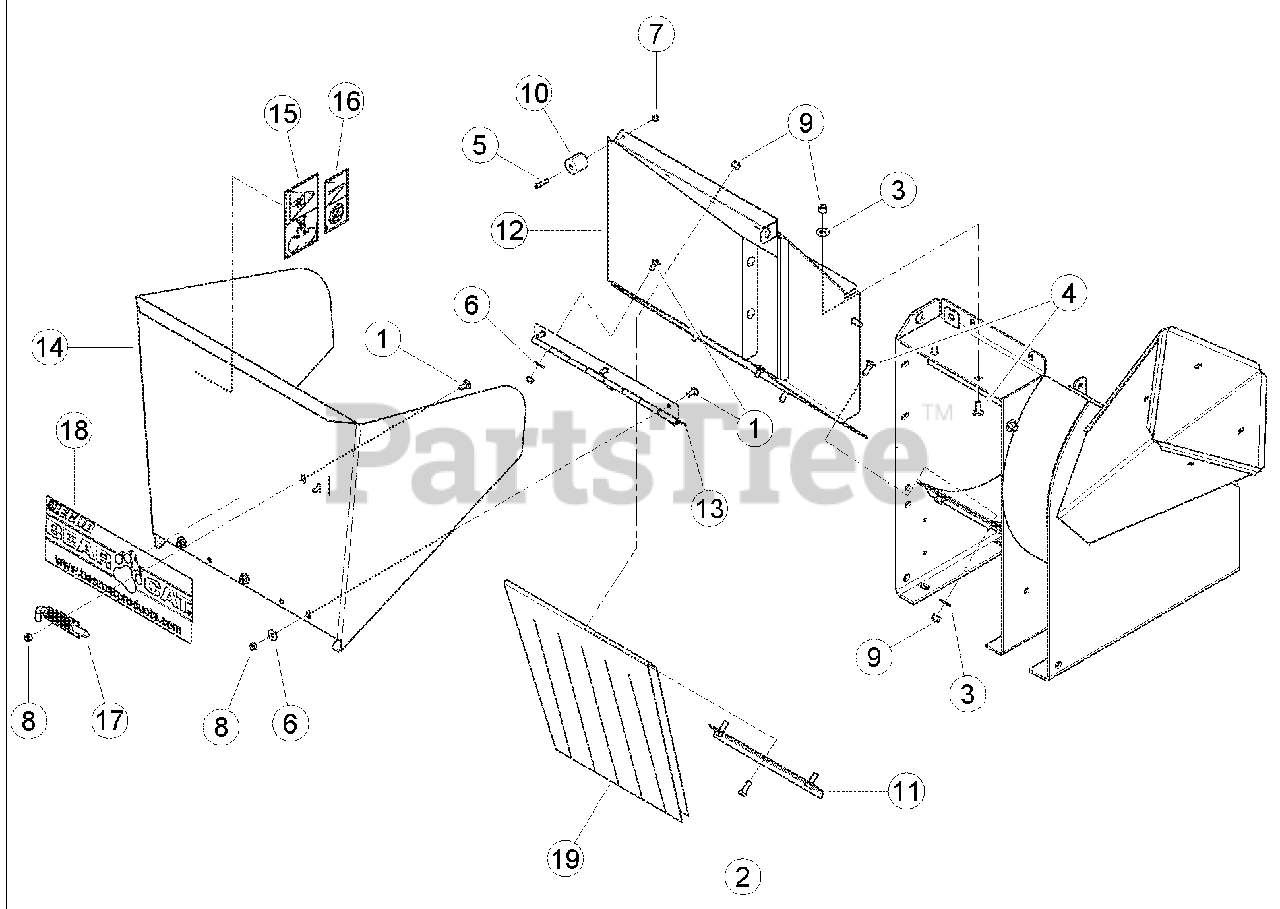

Chute Parts Diagram

  • Title

1

0103-0909-00

BOLT, 5/16-18 X 3/4 CRG SN GR5

$

$

Not available

2

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$0.99

$

Usually ships in 3-7 days

0

3

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

4

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

5

15242

BOLT, 1/4 X 1 SOC HD CAP SCRW

$

$

Not available

6

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

7

Bear Cat 15355

NUT, 1/4 NE NYLOCK ZP

$

$

Not available

8

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

9

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

10

Bear Cat 18420-00

BUMPER, RECESSED RUBBER

$33.99

$

Usually ships in 3-7 days

0

11

Bear Cat 73483-12

ANGLE, FLAP ANCHOR

$

$

Not available

12

Bear Cat 76855-35

WELDMENT, CHUTE

$

$

Not available

13

Bear Cat 76866-12

HINGE, EXTENSION TRAY

$

$

Not available

14

Bear Cat 77002-00

ASSEMBLY, EXTENSION TRAY, SERVICE PART

Note: (INCLUDES ITEMS 1,8 & 15 - 18)

$

$

Not available

15

Bear Cat 12175

DECAL, BLADE DANGER ISO

$7.49

$

In Stock, only 1 left!

0

16

Bear Cat 12176

DECAL, SHREDDER SIZE ISO

$11.99

$

Usually ships in 3-7 days

0

17

Bear Cat 14971-00

LATCH, RH HINGE

$

$

Not available

18

Bear Cat 31484-00

DECAL, BEARCAT WEB

$

$

Not available

19

Bear Cat 77006-00

FLAP, C/S/B CHUTE

$156.99

$

Usually ships in 3-7 days

0
