SC 5720 B - Bear Cat 5" Chipper/Shredder Blower, 720cc Subaru (SN: 5VJAA0010BW002960 - 5VJAA0013CW003742) Engine Parts Diagram

5" Chipper/Shredder Blower, 720cc Subaru

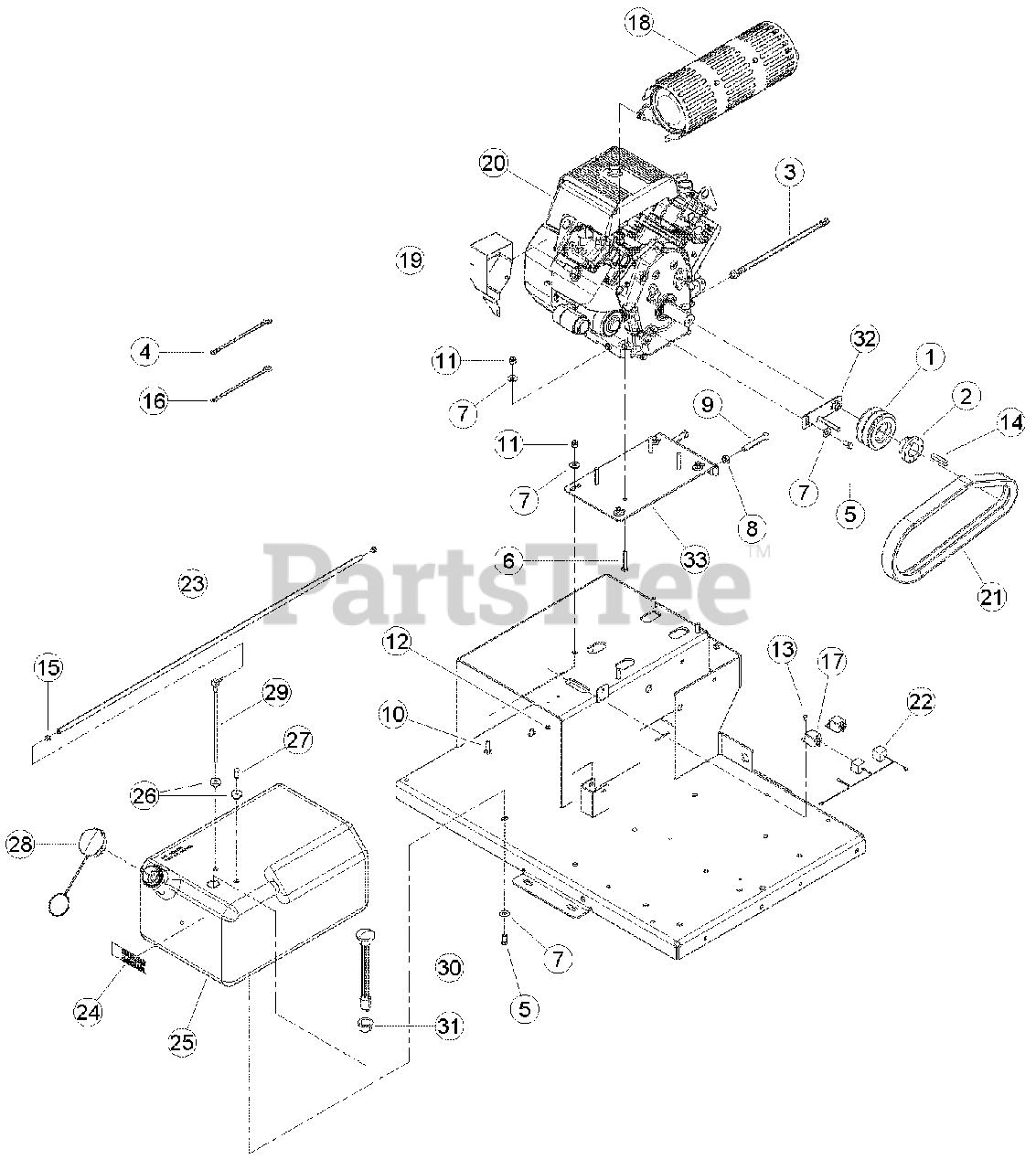

Engine Parts Diagram

  • Title

1

Bear Cat 12446

SHEAVE, 2B3.6 SH, QD

$91.99

$

Usually ships in 3-7 days

0

2

Bear Cat 13599-00

BUSHING, SH 1-7/16

$63.99

$

In Stock, only 1 left!

0

3

Bear Cat 14373-00

HOSE ASSY, CRANKCASE DRAIN

$81.99

$

Usually ships in 3-7 days

0

4

Bear Cat 14901-00

CABLE, 24" NEG (R / R)

$41.99

$

Usually ships in 3-7 days

0

5

Bear Cat 15005

BOLT 3/8*3/4 GR5 HEX CAPSCW ZP

$

$

Not available

6

Bear Cat 15008

BOLT 3/8*2 GR5 HEX CAPSCREW ZP

$

$

Not available

7

Bear Cat 15031

WASHER, 3/8" FLAT ZP (67PCS/LB)

$

$

Not available

8

15089

NUT, 1/2 NC ZP JAM

$

$

Not available

9

15285

SETSCREW, 1/2X3 SQ HD 1/2 DOG PT

$

$

Not available

10

15378

BOLT, CARR 3/8*1-1/4"GR5 NC ZP

$

$

Not available

11

Bear Cat 15388

NUT, 3/8" NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

12

15397

NUT, 10/24 NYLOCK TYPE NM, ZP

$

$

Not available

13

15423

SCW,MCH 10-24*1/2"PAN HD,PH ZP

$

$

Not available

14

Bear Cat 15868-00

KEY, .375 X .230

$

$

Not available

15

Bear Cat 16378

CLAMP, 15/32 SPRING

$4.49

$

Usually ships in 3-7 days

0

16

Bear Cat 17888

CABLE, 33" POS (R / R WITH BOOT)

$70.99

$

Usually ships in 3-7 days

0

17

Bear Cat 31238-00

RELAY, 12V SPDT W/ FLANGE

$61.99

$

Usually ships in 3-7 days

0

18

MUFFLER, SUBARU V-TWIN (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR NEAREST AUTHORIZED SUBARU INDUSTRIAL ENGINE DEALER)

$

$

Not available

19

CONTROL, SUBARU V-TWIN IGNITION (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR NEAREST AUTHORIZED SUBARU INDUSTRIAL ENGINE DEALER)

$

$

Not available

20

ENGINE, SUBARU 720CC EH72 (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR NEAREST AUTHORIZED SUBARU INDUSTRIAL ENGINE DEALER)

$

$

Not available

21

Bear Cat 31498-00

BELT, 2RB40

$147.99

$

Usually ships in 3-7 days

0

22

Bear Cat 31610-00

HARNESS, CARB SAFETY RELEAY

$111.99

$

Usually ships in 3-7 days

0

23

Bear Cat 75057-00

HOSE, 43 INCH FUEL LINE

$73.99

$

Usually ships in 3-7 days

0

ASSEMBLY, FUEL TANK UNLEADED (REPLACED AND SUPERSEDED. FOR SERVICE ORDER KIT # 77711-00)

Note: (INCLUDES ITEMS 24-31)

$

$

Not available

24

DECAL, UNLEADED GASOLINE

$

$

Not available

25

TANK, 9.25 GAL ROTOMOLDED FUEL

$

$

Not available

26

GROMMET, TANK FITTING

$

$

Not available

27

PLUG, TANK VENT

$

$

Not available

28

CAP, FUEL TANK VENTED

$

$

Not available

29

FITTING, TANK FUEL PICK-UP TUBE

$

$

Not available

30

GAUGE, FUEL LEVEL KELCH 100

$

$

Not available

31

GROMMET, KELCH 100 GAUGE

$

$

Not available

32

WELDMENT, BELT GUIDE

$

$

Not available

33

WELDMENT, ENGINE ADJUSTER

$

$

Not available
