SC 5720 B - Bear Cat 5" Chipper/Shredder Blower, 720cc Subaru (SN: 5VJAA0010BW002960 - 5VJAA0013CW003742) Frame (CE COMPLIANT) Parts Diagram

5" Chipper/Shredder Blower, 720cc Subaru

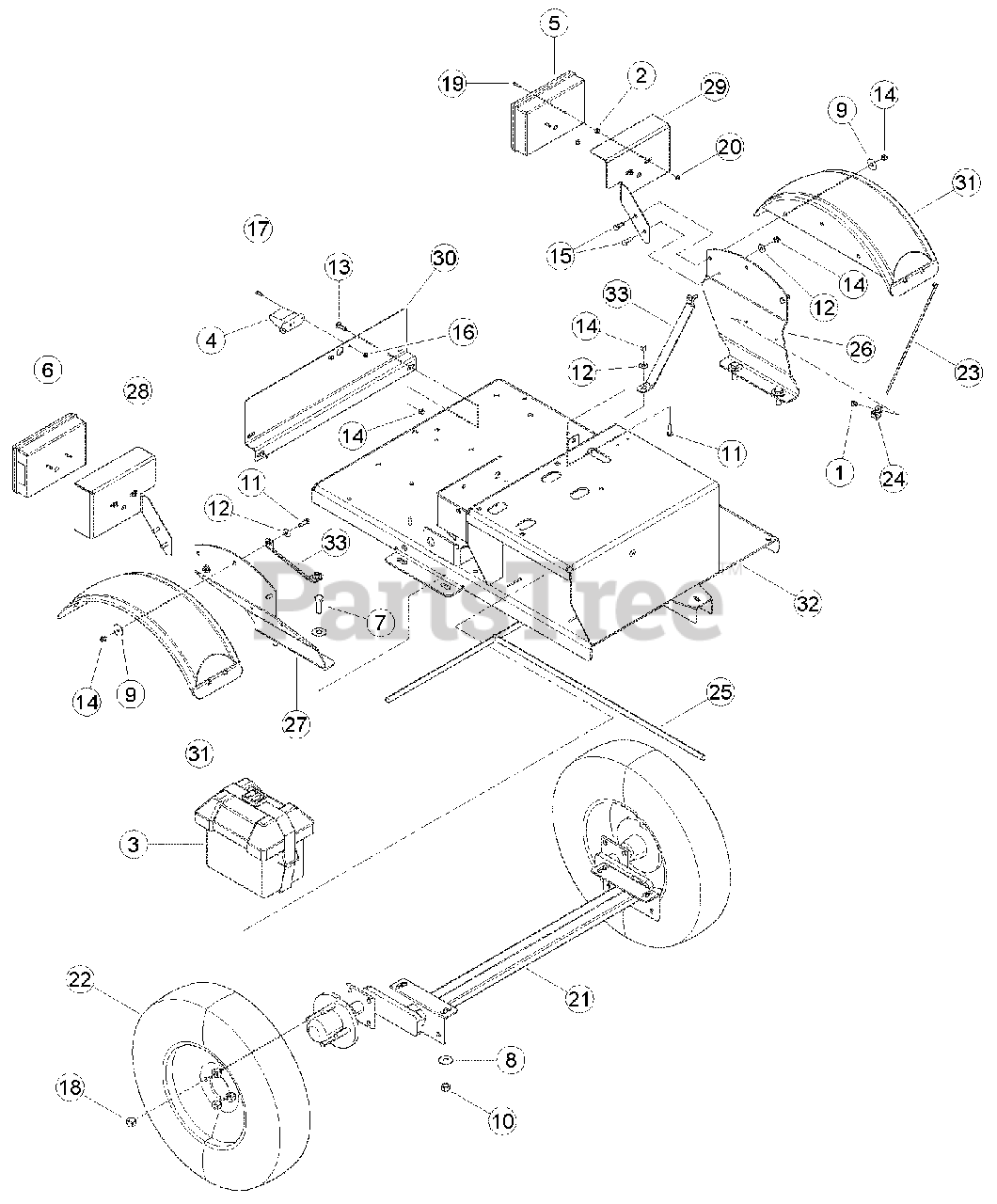

Frame (CE COMPLIANT) Parts Diagram

  • Title

1

0111-0058-00

RIVET, 1/4 X 3/4 ST POP

$

$

Not available

2

0934-0004-00

GROMMET, 1/4 X 5/8 RUBBER

$

$

Not available

3

Bear Cat 12839

BOX, SMALL BATTERY

$88.99

$

Usually ships in 3-7 days

0

4

Bear Cat 14368-00

LIGHT, LICENSE PLATE

$

$

Not available

5

Bear Cat 14566-00

LIGHT, TAIL RH

$93.99

$

Usually ships in 3-7 days

0

6

Bear Cat 14580-00

LIGHT, TAIL LH

$93.99

$

Usually ships in 3-7 days

0

7

Bear Cat 15014

BOLT, 1/2 X 1-1/2 HEX HD GR5 ZP

$1.49

$

Usually ships in 3-7 days

0

8

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$0.99

$

Usually ships in 3-7 days

0

9

Bear Cat 15040

WASHER, 5/16 FENDER ZP

$0.99

$

Usually ships in 3-7 days

0

10

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$0.99

$

Usually ships in 3-7 days

0

11

Bear Cat 15219

BOLT, 5/16 X 1 HEX HD GR5 NC ZP

$

$

Not available

12

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

13

Bear Cat 15301

BOLT, 5/16 X 1 CRG GR5 ZP

$

$

Not available

14

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

15

Bear Cat 15396

BOLT, 5/16 X 7/8 HEX HD GR5 NC ZP

$

$

Not available

16

15397

NUT, 10/24 NYLOCK TYPE NM, ZP

$

$

Not available

17

Bear Cat 15460

MACH. SCREW, #10-24 X 3/4 PAN HD PH ZP

$

$

Not available

18

Bear Cat 15527

NUT, 1/2-20 WHEEL

$

$

Not available

19

15557

BOLT, 10-24 X 3/4 HEX HD GR8 PLAIN

$

$

Not available

20

Bear Cat 15830-00

NUT, #10-24 K-LOCK ZP

$2.49

$

Usually ships in 3-7 days

0

21

Bear Cat 16917

AXLE, 1000LB TORSION

$1050.99

$

Usually ships in 3-7 days

0

22

Bear Cat 16548

ASSEMBLY, 5.30-12 TIRE + SPOKE RIM

$360.99

$

Usually ships in 3-7 days

0

23

17320

STRAP, 11 IN BLACK TIE

$

$

Not available

24

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$8.49

$

Usually ships in 3-7 days

0

25

Bear Cat 36202-00

HARNESS, C/S TRAILER

$

$

Not available

26

Bear Cat 75541-12

BRACKET, LH FENDER

$143.99

$

Usually ships in 3-7 days

0

27

Bear Cat 75542-12

BRACKET, RH FENDER

$143.99

$

Usually ships in 3-7 days

0

28

Bear Cat 75553-12

BRACKET, LIGHT
(Superseded to 71578-12)

$281.99

$

Usually ships in 3-7 days

0

29

Bear Cat 75554-12

BRACKET, LIGHT
(Superseded to 71586-12)

$281.99

$

Usually ships in 3-7 days

0

30

Bear Cat 75555-12

PLATE, MOUNTING

$

$

Not available

31

Bear Cat 76624-00

FENDER, BLACK PLASTIC DRILLED

$97.99

$

Usually ships in 3-7 days

0

32

Bear Cat 76834-12

WELDMENT, C/S TRAILER

$

$

Not available

33

Bear Cat 76984-12

BRACE, FENDER

$

$

Not available
