SC 5720 B - Bear Cat 5" Chipper/Shredder Blower, 720cc Subaru (SN: 5VJAA0010BW002960 - 5VJAA0013CW003742) Housing (Part 1) Parts Diagram

5" Chipper/Shredder Blower, 720cc Subaru

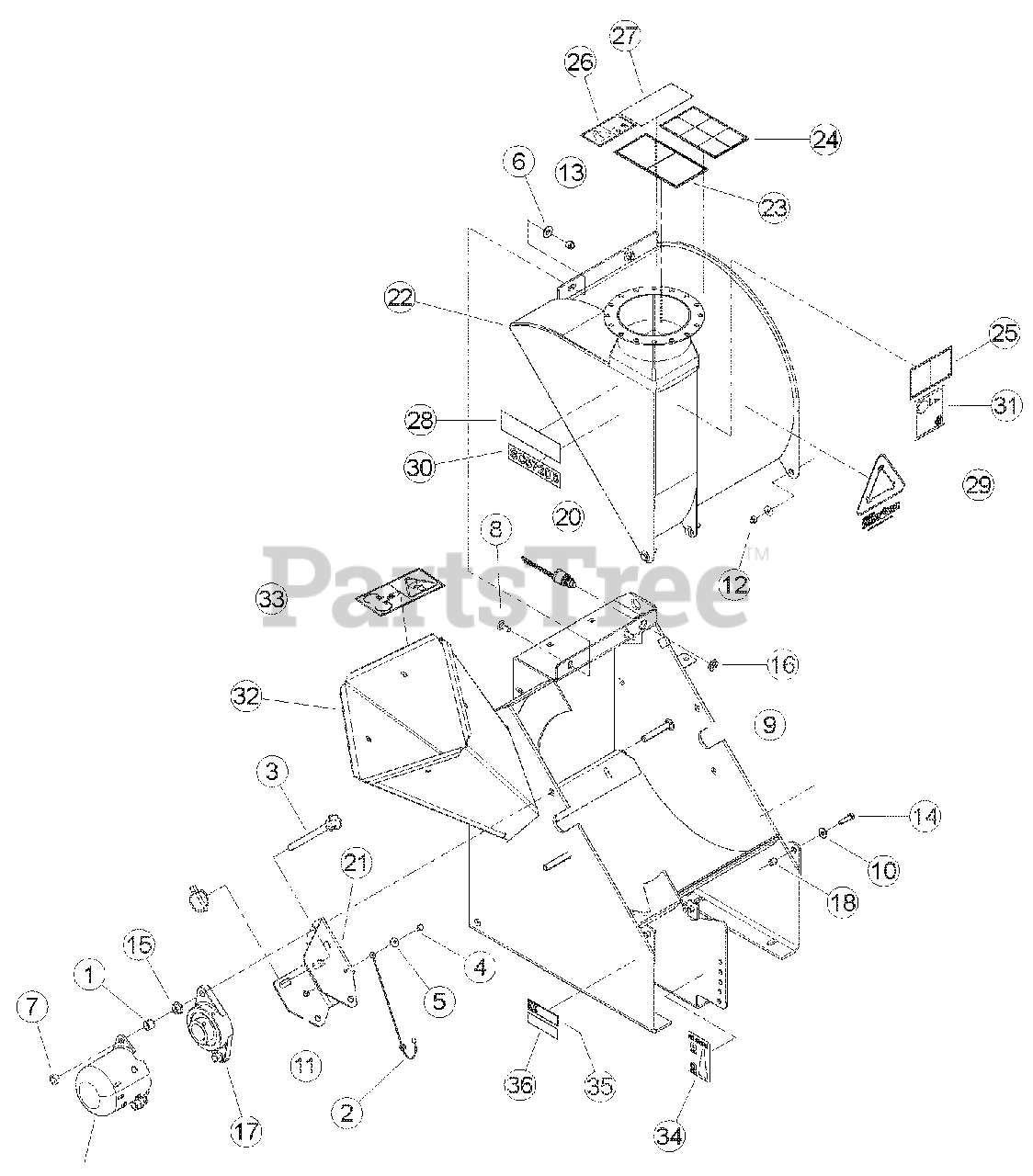

Housing (Part 1) Parts Diagram

  • Title

1

0311-0110-00

BUSHING, 1/2ID X 3/4OD X 17/32 LNST

$

$

Not available

2

12530

LANYARD, NYLON

$

$

Not available

3

Bear Cat 14544-00

PIN, HITCH 1/2 X 6-1/2 W LYNCH

$39.99

$

Usually ships in 3-7 days

0

4

15001

BOLT, 1/4 X 3/4 HEX HD GR5 ZP

$

$

Not available

5

15030

WASHER, 1/4 FLAT ZP

$

$

Not available

6

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

7

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$0.99

$

Usually ships in 3-7 days

0

8

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

9

Bear Cat 15142

BOLT, 1/2 X 3 CRG GR5 ZP

$

$

Not available

10

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

11

Bear Cat 15355

NUT, 1/4 NE NYLOCK ZP

$

$

Not available

12

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

13

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

14

Bear Cat 15436

BOLT, 5/16 X 1-1/4 GR5 HEX HD NC ZP

$

$

Not available

15

Bear Cat 15616

NUT, 1/2 SERR FLANGE NC ZP

$

$

Not available

16

Bear Cat 15775-00

NUT, 5/8-32 JAM

$13.99

$

Usually ships in 3-7 days

0

17

Bear Cat 16004

BEARING, 2 BOLT FLANGE 1-1/2" BORE

$87.99

$

Usually ships in 3-7 days

0

18

Bear Cat 73508-00

SPACER, .50 X .50

$12.99

$

Usually ships in 3-7 days

0

19

Bear Cat 73895-00

CAP, LARGE SHAFT

$

$

Not available

20

Bear Cat 76622-00

ASSEMBLY, SEALED SWITCH

$87.99

$

Usually ships in 3-7 days

0

21

Bear Cat 76889-12

PLATE, ROTOR LOCK

$

$

Not available

22

Bear Cat 77015-00

ASSEMBLY, HOUSING TOP 5" C/S/B, SERVICE PART

Note: (INCLUDES ITEMS 23 - 31)

$

$

Not available

23

Bear Cat 12169

DECAL, KNIFE ACCESS ISO

$29.99

$

Usually ships in 3-7 days

0

24

Bear Cat 12172

DECAL, OPERATING INSTRUCTIONS ISO

$7.99

$

Usually ships in 3-7 days

0

25

Bear Cat 12173

DECAL, DISCHARGE ISO

$3.99

$

Usually ships in 3-7 days

0

26

Bear Cat 12250

DECAL, MAINTENANCE ISO

$3.99

$

Usually ships in 3-7 days

0

27

Bear Cat 14942-00

DECAL, MUTILINGUAL MANUAL

$38.99

$

Usually ships in 3-7 days

0

28

Bear Cat 17913

DECAL, ECHO BEARCAT 6.82 X 1.90

$6.49

$

Usually ships in 3-7 days

0

29

Bear Cat 31393-00

DECAL, SHRED IT

$13.99

$

Usually ships in 3-7 days

0

30

Bear Cat 31467-00

DECAL, MODEL SC5720B

$11.99

$

Usually ships in 3-7 days

0

31

Bear Cat 31502-00

DECAL, 120 DB

$

$

Not available

32

Bear Cat 77469-00

ASSEMBLY, CHIPPER BOTTOM, SERVICE PART

Note: (INCLUDES ITEMS 33 & 34)

$

$

Not available

32

Bear Cat 77470-00

ASSEMBLY, CE CHIPPER BOTTOM, SERVICE PART

Note: (INCLUDES ITEMS 33 - 36)

$2142.99

$

Usually ships in 3-7 days

0

33

Bear Cat 12175

DECAL, BLADE DANGER ISO

$7.49

$

In Stock, only 1 left!

0

34

Bear Cat 13616-00

DECAL, SHRED SIZE

$17.99

$

Usually ships in 3-7 days

0

35

Bear Cat 31646-00

DECAL, SC5720B INFORMATION

$11.99

$

Usually ships in 3-7 days

0

36

Bear Cat 31890-00

DECAL, ATLANTIC BRIDGE LTD INFO

$10.99

$

Usually ships in 3-7 days

0
