SC 5720 B - Bear Cat 5" Chipper/Shredder Blower, 720cc Subaru (SN: 5VJAA0010BW002960 - 5VJAA0013CW003742) Housing (Part 2) Parts Diagram

5" Chipper/Shredder Blower, 720cc Subaru

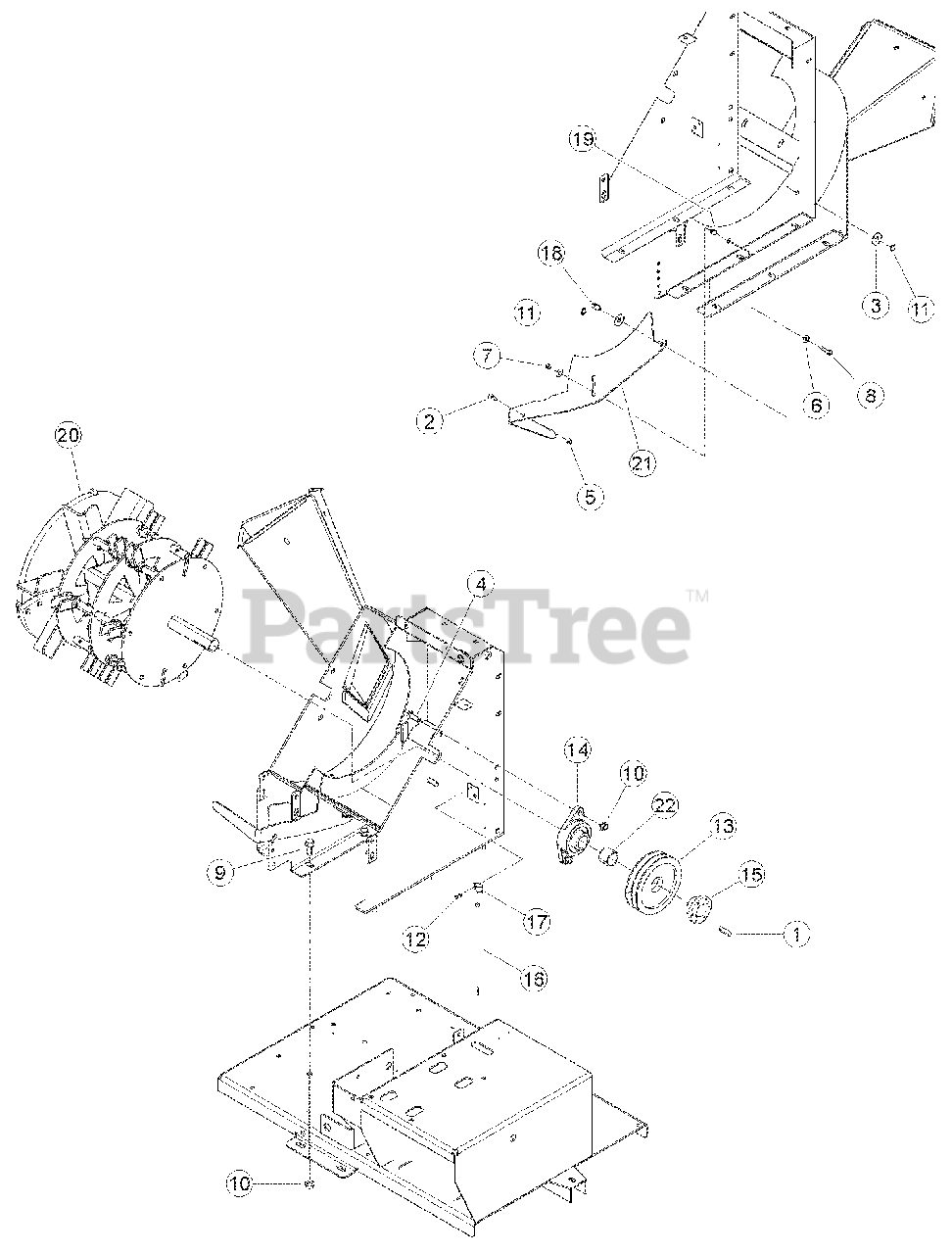

Housing (Part 2) Parts Diagram

  • Title

1

0122-0012-00

KEY, 3/8 SQUARE X 1-1/2 LONG

$

$

Not available

2

Bear Cat 15003

BOLT, 5/16 X 3/4 HEX HD GR5 ZP

$

$

Not available

3

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$0.99

$

Usually ships in 3-7 days

0

4

Bear Cat 15157

BOLT, 1/2 X 1-1/2 CRG GR5 ZP

$8.99

$

Usually ships in 3-7 days

0

5

15178

NUT, 5/16 CENTERLOCK NC ZP

$

$

Not available

6

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

7

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$0.99

$

Usually ships in 3-7 days

0

8

Bear Cat 15436

BOLT, 5/16 X 1-1/4 HEX HD GR5 NC ZP

$

$

Not available

9

Bear Cat 15612

BOLT, 1/2 X 1-1/4 SERR FLANGE

$

$

Not available

10

Bear Cat 15616

NUT, 1/2 SERR FLZNGE NC ZP

$

$

Not available

11

Bear Cat 15683-00

CLIP, 1/2" E

$1.99

$

Usually ships in 3-7 days

0

12

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

13

Bear Cat 16001

SHEAVE 2B 6.6 SDS

$157.99

$

Usually ships in 3-7 days

0

14

Bear Cat 16004

BEARING,2 BOLT FLANGE 1-1/2" BORE

$87.99

$

Usually ships in 3-7 days

0

15

Bear Cat 16007

BUSHING, SDS 1-1/2"

$71.99

$

Usually ships in 3-7 days

0

16

17320

STRAP, 11 IN BLACK TIE

$

$

Not available

17

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$8.49

$

Usually ships in 3-7 days

0

18

Bear Cat 73485-00

PIN, RETAINER

$19.99

$

Usually ships in 3-7 days

0

19

Bear Cat 73508-00

SPACER, .50 X .50

$12.99

$

Usually ships in 3-7 days

0

20

ASSEMBLY, 5 INCH C/S ROTOR (REPLACED AND SUPERSEDED. FOR SERVICE ORDER PN77612-00, ROTOR REPLACEMENT KIT)

$

$

Not available

21

Bear Cat 76862-35

ADJUSTOR, SHREDDER

$

$

Not available

22

Bear Cat 77143-12

SPACER, 1-3/4" OD X 1-1/2" ID X 1-1/4"

$

$

Not available
