SC 5720 B - Bear Cat 5" Chipper/Shredder Blower, 720cc Subaru (SN: 5VJAA0010BW002960 - 5VJAA0013CW003742) Idler Parts Diagram

5" Chipper/Shredder Blower, 720cc Subaru

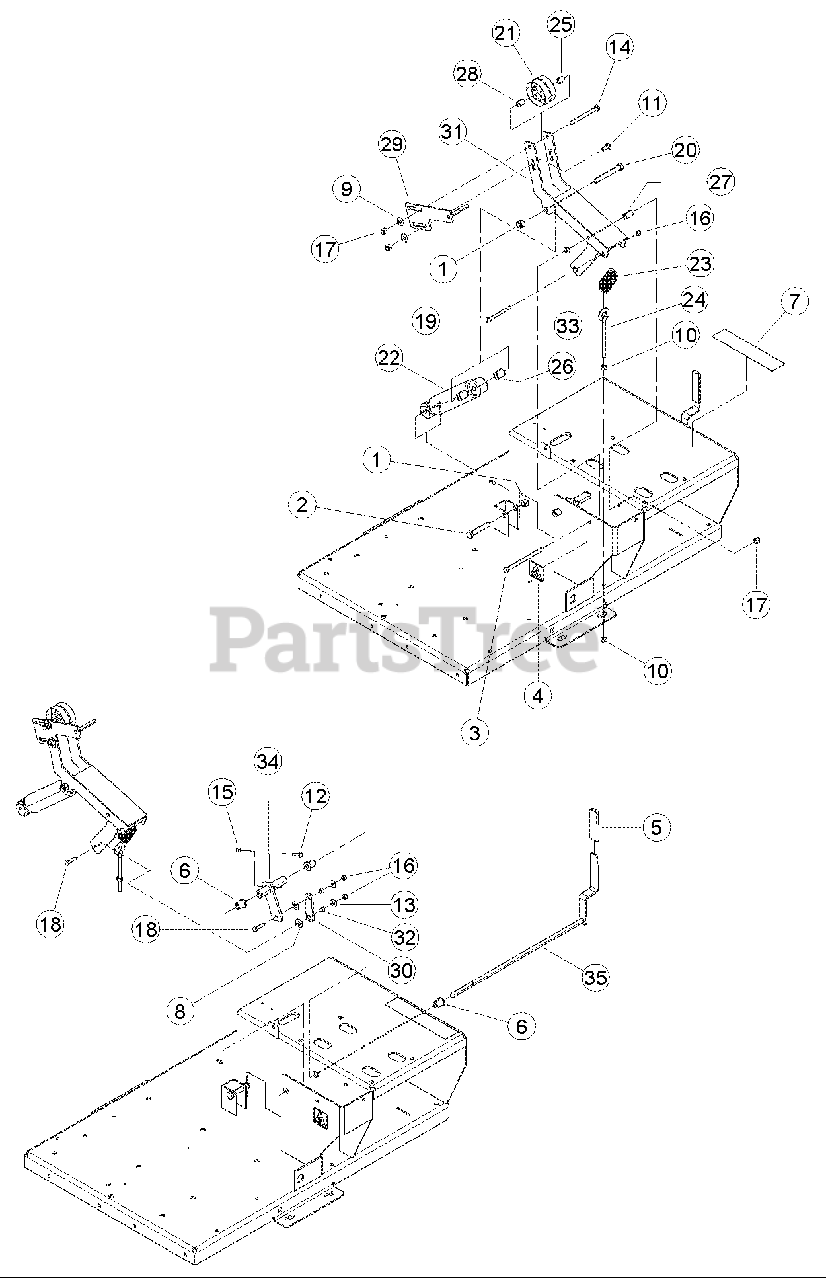

Idler Parts Diagram

  • Title

1

0101-0100-00

NUT, 1/2-13 UNC NYLOCK

$

$

Not available

2

0103-0756-00

BOLT, 1/2 X 2-3/4 HEX GR5 ZP

$

$

Not available

3

0103-0848-00

BOLT, 3/8 X 5-1/2 HEX GR5 ZP

$

$

Not available

4

Bear Cat 12174

DECAL, SHIELD DANGER ISO

$4.99

$

Usually ships in 3-7 days

0

5

Bear Cat 14076-00

GRIP, CLUTCH HANDLE

$5.99

$

Usually ships in 3-7 days

0

6

Bear Cat 14236-00

BUSHING, 1/2 X 1 FLANGE LUBE

$9.49

$

Usually ships in 3-7 days

0

7

Bear Cat 14302-00

DECAL, CHIPPER ENGAGEMENT

$13.99

$

Usually ships in 3-7 days

0

8

Bear Cat 14640-00

NYLON WASHER, 1/2 INCH

$2.99

$

Usually ships in 3-7 days

0

9

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

10

Bear Cat 15042

NUT, 3/8 HEX NC ZP

$0.99

$

In Stock, only 1 left!

0

11

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

12

15214

BOLT, 1/4 X 1-1/4 HEX HD GR5 ZP

$

$

Not available

13

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

14

15272

BOLT, 3/8 X 4 HEX HD GR5 NC ZP

$

$

Not available

15

Bear Cat 15355

NUT, 1/4 NE NYLOCK ZP

$

$

Not available

16

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

17

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

18

Bear Cat 15436

BOLT, 5/16 X 1-1/4 HEX HD GR5 NC ZP

$

$

Not available

19

Bear Cat 15536

BOLT, 5/16 X 3-1/2 CRG GR5 ZP

$1.99

$

Usually ships in 3-7 days

0

20

15549

BOLT, 1/2 X 3-3/4 HEX HD GR5 NC ZP

$

$

Not available

21

Bear Cat 16319

PULLEY, 3-1/4 FLAT IDLER

$73.99

$

Usually ships in 3-7 days

0

22

Bear Cat 16786

ABSORBER, IDLER SHOCK

$

$

Not available

23

Bear Cat 17415

SPRING, 1.25 OD X 3.50 LG X .148 WD

$

$

Not available

24

17804

EYEBOLT, 3/8 X 5 LG 4-1/4 THD ZP

$

$

Not available

25

Bear Cat 70362-12

SPACER, .63 X .63 PULLEY

$

$

Not available

26

Bear Cat 70367

SPACER, .75 X .59

$7.99

$

Usually ships in 3-7 days

0

27

Bear Cat 74991-12

SPACER, .63 X 1.035

$

$

Not available

28

Bear Cat 75323-12

SPACER, 5/8 OD X 11 GA X .760

$

$

Not available

29

Bear Cat 76847-12

WELDMENT, PIVOT ROD

$

$

Not available

30

Bear Cat 76848-12

PLATE, CONNECTING ARM

$

$

Not available

31

Bear Cat 76981-12

WELDMENT, IDLE ARM

$

$

Not available

32

Bear Cat 76985-00

SPACER, 1/2" OD X 14 GA WA X 0.26"

$6.99

$

Usually ships in 3-7 days

0

33

Bear Cat 76987-12

SPACER, 5/8" OD X 3/8" ID X 0.28"

$

$

Not available

34

Bear Cat 77008-12

WELDMENT, PIVOT ARM

$

$

Not available

35

Bear Cat 77011-12

WELDMENT, HANDLE

$

$

Not available
