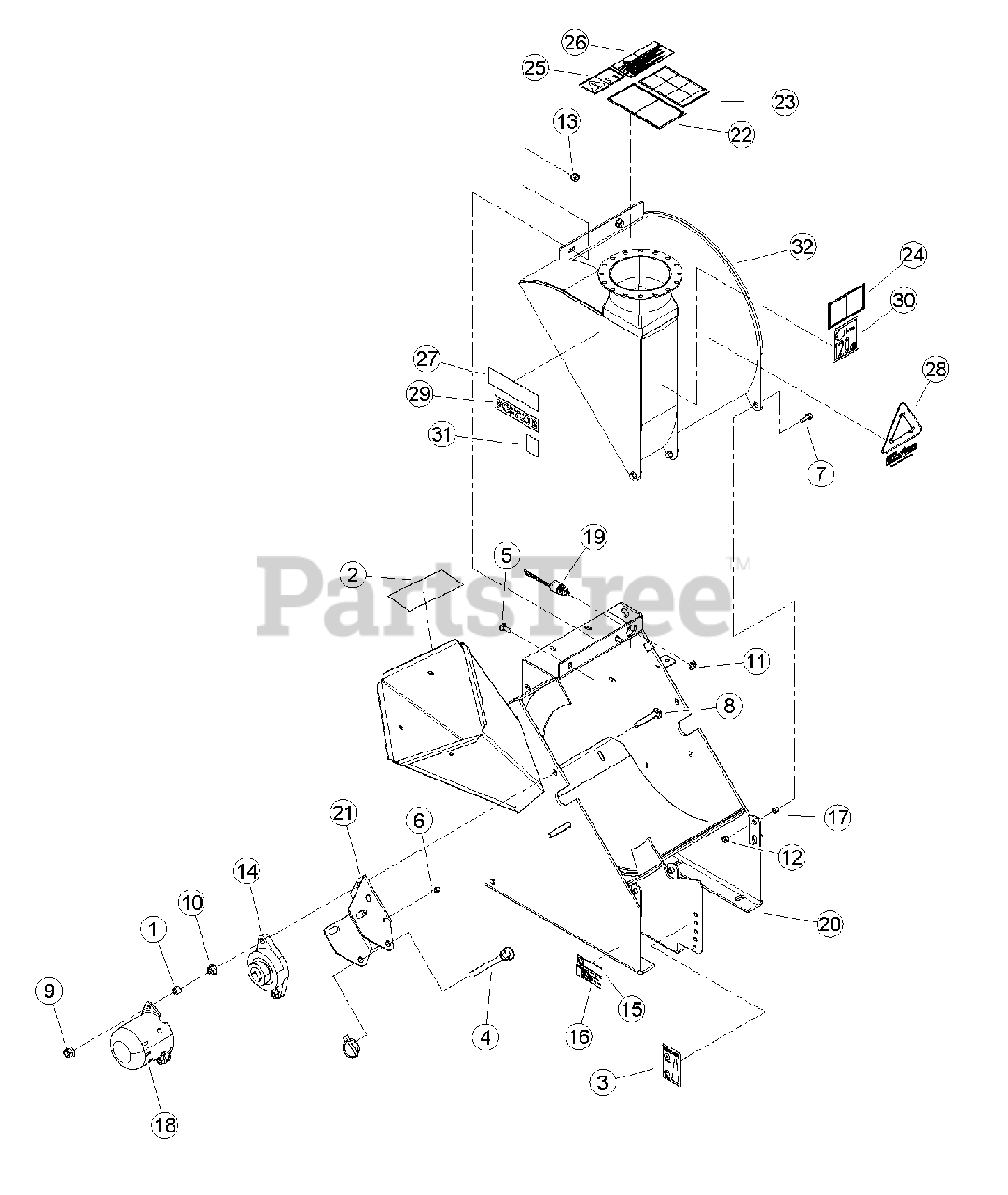

SC 5720 B - Bear Cat 5" Chipper/Shredder Blower, 720cc Subaru (SN: 5VJAA0019DW003794 - 5VJAA0211HW005560) Housing (A) Parts Diagram

5" Chipper/Shredder Blower, 720cc Subaru

Housing (A) Parts Diagram

  • Title

1

0311-0110-00

BUSHING, 1/2 ID X 3/4 OD X 17/32 LNST

$

$

Not available

2

Bear Cat 12175

DECAL, BLADE DANGER ISO

$6.99

$

In Stock, only 1 left!

0

3

Bear Cat 13616-00

DECAL, SHRED SIZE

$16.99

$

Usually ships in 3-7 days

0

4

Bear Cat 14544-00

PIN, HITCH 1/2 X 6-1/2 W/ LYNCH

$37.99

$

Usually ships in 3-7 days

0

5

15057

BOLT, 3/8 X 1" CRG GR5 NC ZP

$

$

Not available

6

15079-00

BOLT, 1/4-20 X 3/4 HWH GR5 CZP

$

$

Not available

7

Bear Cat 15120-00

BOLT, 5/16 X 1 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

8

Bear Cat 15142

BOLT, 1/2 X 3.00 GR5 ZP CRG

$

$

Not available

9

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

10

Bear Cat 15616

NUT, 1/2 SPIRAL LOCK NC ZP

$

$

Not available

11

Bear Cat 15775-00

NUT, 5/8-32 JAM

$12.99

$

Usually ships in 3-7 days

0

12

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

13

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK-FLANGE

$

$

Not available

14

Bear Cat 16004

BEARING,2 BLT FLG 1-1/2" BORE

$82.99

$

Usually ships in 3-7 days

0

15

Bear Cat 31646-00

DECAL, SC5720B INFORMATION (CE COMPLIANT ONLY)

$10.99

$

Usually ships in 3-7 days

0

16

Bear Cat 31890-00

DECAL, ATLANTIC BRIDGE LTD INFO (CE COMPLIANT ONLY)

$9.99

$

Usually ships in 3-7 days

0

17

Bear Cat 73508-00

SPACER, .50 X .50

$12.99

$

Usually ships in 3-7 days

0

18

Bear Cat 73895-00

CAP, LARGE SHAFT

$

$

Not available

19

Bear Cat 76622-00

ASSEMBLY, SEALED SWITCH

$82.99

$

Usually ships in 3-7 days

0

20

Bear Cat 76840-35

WELDMENT, C/S BOTTOM

$

$

Not available

21

Bear Cat 76889-12

PLATE, ROTOR LOCK

$

$

Not available

Bear Cat 77015-00

ASSEMBLY, HOUSING TOP 5" C/S/B

Note: (INCLUDES ITEMS 22-32)

$914.99

$

Usually ships in 3-7 days

0

22

Bear Cat 12169

DECAL, KNIFE ACCESS ISO

$13.99

$

Usually ships in 3-7 days

0

23

Bear Cat 12172

DECAL, OPERATING INSTRUCTIONS ISO

$7.49

$

Usually ships in 3-7 days

0

24

Bear Cat 12173

DECAL, DISCHARGE ISO

$3.99

$

Usually ships in 3-7 days

0

25

Bear Cat 12250

DECAL, MAINTENANCE ISO

$3.99

$

In Stock, only 1 left!

0

26

Bear Cat 14942-00

DECAL, MUTILINGUAL MANUAL

$3.49

$

Usually ships in 3-7 days

0

27

Bear Cat 17913

DECAL, ECHO BEARCAT 6.82 X 1.90

$6.49

$

Usually ships in 3-7 days

0

28

Bear Cat 31393-00

DECAL, SHRED IT

$13.99

$

Usually ships in 3-7 days

0

29

Bear Cat 31467-00

DECAL, MODEL SC5720B

$11.99

$

Usually ships in 3-7 days

0

30

Bear Cat 31502-00

DECAL, 120 DB

$11.99

$

Usually ships in 3-7 days

0

31

Bear Cat 32392-00

DECAL, ECHO BEARCAT QR CODE

$2.99

$

Usually ships in 3-7 days

0

32

76836-35

WELDMENT, CHIPPER TOP

$

$

Not available
