SC 621 (12A-999I101) - Cub Cadet Walk-Behind Mower (1999) Cable & Pulley Parts Diagram

Walk-Behind Mower

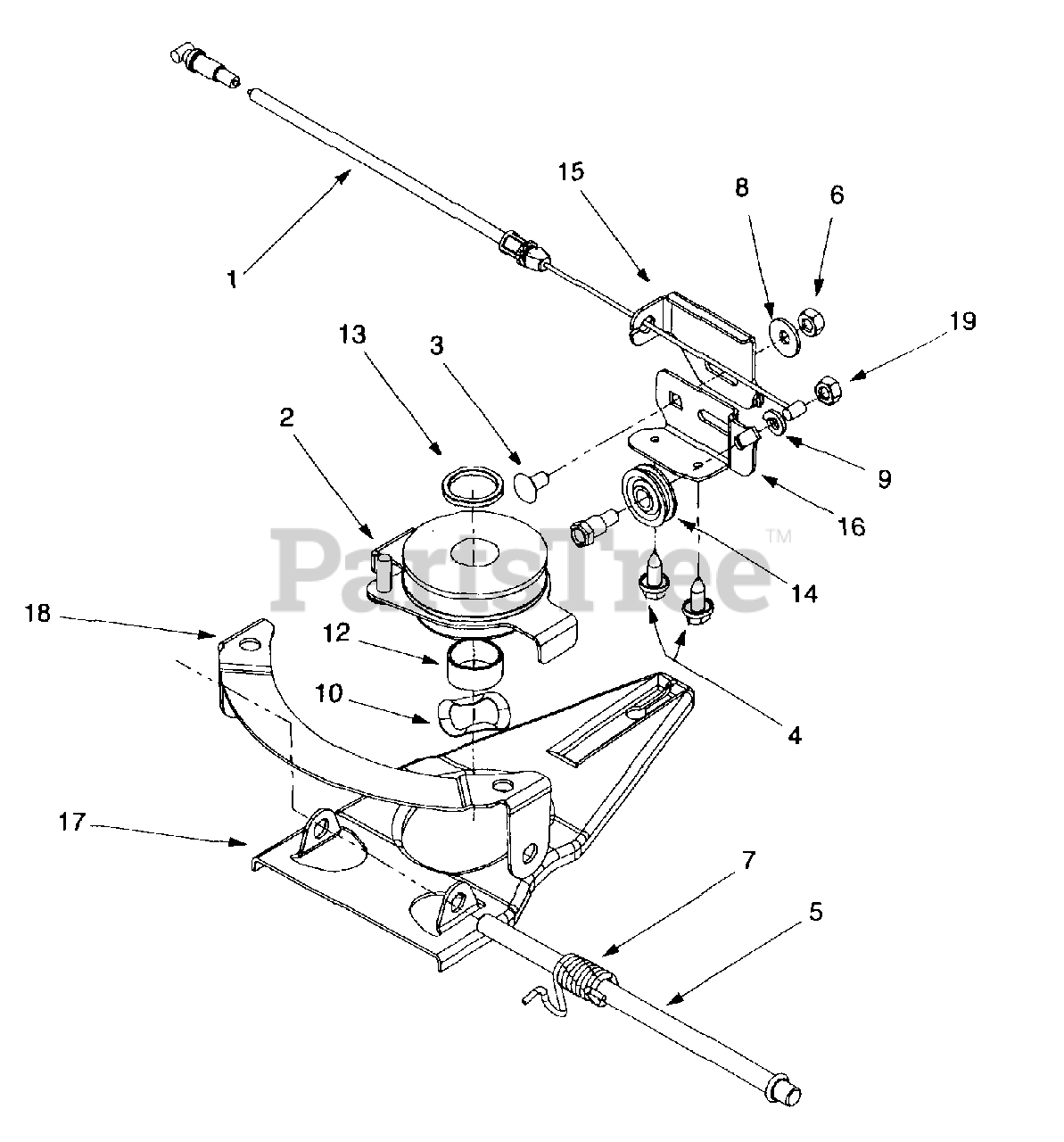

Cable & Pulley Parts Diagram

  • Title

1

Cub Cadet 746-0939

Speed Selector Cable, 53"
(Superseded to 946-0939A)

$33.99

$

In Stock, Qty 5

0

2

Cub Cadet 656-0613

Multi-speed Pulley Assembly
(Superseded to 956-0613A)

$72.99

$

In Stock, only 2 left!

0

3

Cub Cadet 710-0167

Carriage Bolt, 1/4-20 x. 5
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-1652

Self-tapping Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 711-1114

Pivot Shaft

$12.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 712-0287

Nut, 1/4-20
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 732-0807

LH Torsion Spring
(Superseded to 932-0807)

$7.49

$

In Stock, only 1 left!

0

8

Cub Cadet 736-0270

Bell Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 9

0

9

Cub Cadet 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

10

Cub Cadet 736-0526

Wave Washer, 1.38 x .88 x .029

$6.99

$

Usually ships in 3-6 days

0

?11

Cub Cadet 738-0924

Shoulder Bolt, .34 x .35 x 1/4-20
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 6

0

12

Cub Cadet 750-1070

Sleeve Spacer, .88 ID x 1 OD x .48
(Superseded to 950-1070)

$5.99

$

In Stock, Qty 11

0

13

Cub Cadet 750-1071

Sleeve Spacer, .88 ID x 1.13 OD x .12
(Superseded to 950-1071)

$4.49

$

In Stock, Qty 5

0

14

Cub Cadet 756-0625

Cable Roller

$9.49

$

In Stock, Qty 20+

0

15

Cub Cadet 782-7574

Cable Adjuster Barcket
(Superseded to 782-7574A-0637)

Variations

Cub Cadet 782-7574-0498

Cable Adjusting Bracket - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 782-7574-0637

Cable Adjusting Bracket - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 782-7574-0665

Cable Adjusting Bracket - YARDMAN GREEN (0665)

$

$

Not available

$

$

16

Cub Cadet 782-7575

Cable Mounting Barcket
(Superseded to 782-7575-0637)

Variations

Cub Cadet 782-7575-0498

USE 782-7575-0637 BRACKET-CAB - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 782-7575-0637

BRACKET-CABLE MTG - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 782-7575-0665

USE 782-7575-0637 BRACKET-CAB - YARDMAN GREEN (0665)

$

$

Not available

$

$

17

Cub Cadet 782-7596

Control Arm
(Superseded to 782-7596A)

Variations

Cub Cadet 782-7596-0637

Control Arm, 6-Speed - POWDER BLACK (0637)

$

$

Not available

$

$

18

Cub Cadet 782-7597

Pivot Bracket

Variations

Cub Cadet 782-7597-0637

Pivot Bracket - POWDER BLACK (0637)

$9.49

$

In Stock, only 1 left!

0

$9.49

$

In Stock, only 1 left!

0

19

Cub Cadet 712-0138

Hex Nut, 1/4-20

$6.99

$

Usually ships in 3-6 days

0
