SC 621 (12B-999I100) - Cub Cadet Walk-Behind Mower Engine (2001) Air, Carburetor & General Parts Diagram

Walk-Behind Mower Engine

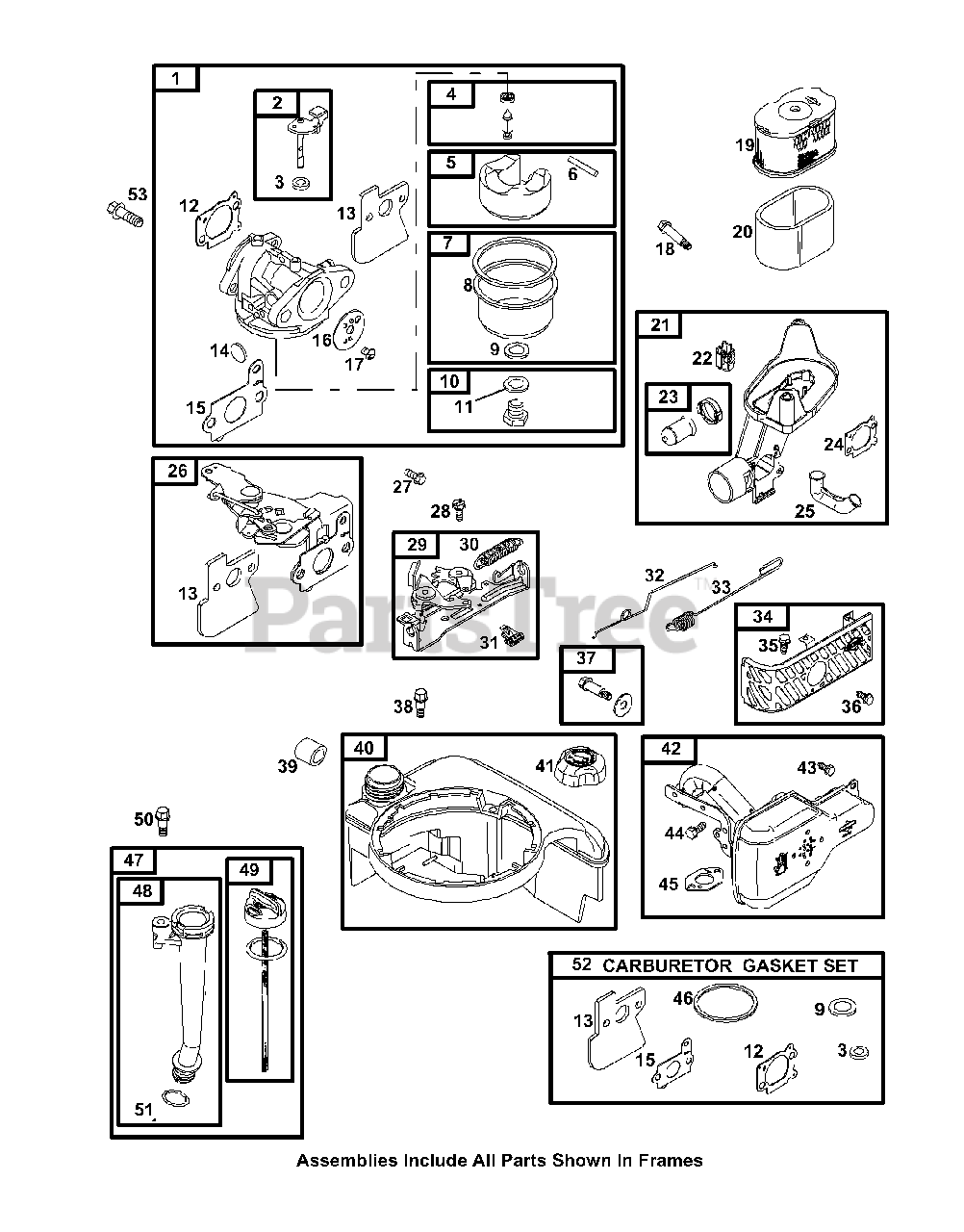

Air, Carburetor & General Parts Diagram

  • Title

1

Cub Cadet BS-694202

Carburetor
(Superseded to BS-790120)

$59.99

$

In Stock, Qty 7

0

2

Cub Cadet BS-499682

Shaft-Throttle

$16.99

$

In Stock, only 1 left!

0

3

Cub Cadet BS-691321

Seal-Throttle Shaft

$4.99

$

In Stock, only 2 left!

0

4

Cub Cadet BS-398188

Kit-Needle/Seat

$6.49

$

In Stock, Qty 20+

0

5

Cub Cadet BS-398187

Float-Carburetor

$9.99

$

In Stock, Qty 10

0

6

Cub Cadet BS-691242

Pin-Float Hinge
(Superseded to BS-797622)

$3.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-493640

Bowl-Float
(Superseded to BS-796611)

$6.49

$

In Stock, Qty 18

0

8

Cub Cadet BS-693981

Gasket-Float Bowl

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet BS-271716

Washer-Sealing

$6.49

$

In Stock, Qty 20+

0

10

Cub Cadet BS-498978

Jet-Main

$16.99

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-271716

Washer-Sealing

$6.49

$

In Stock, Qty 20+

0

12

Cub Cadet BS-691894

Gasket-Air Cleaner

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet BS-692799

Spacer-Carburetor

$14.99

$

In Stock, only 3 left!

0

14

Cub Cadet BS-694468

Plug-Welch

$4.49

$

In Stock, Qty 7

0

15

Cub Cadet BS-692668

Gasket-Intake

$4.49

$

In Stock, only 4 left!

0

16

Cub Cadet BS-691203

Valve-Throttle

$9.49

$

In Stock, only 1 left!

0

17

Cub Cadet BS-691636

Screw (Throttle Valve)

$3.99

$

In Stock, only 2 left!

0

18

Cub Cadet BS-690255

Screw (A/C Primer Base)

$5.99

$

In Stock, Qty 14

0

19

Cub Cadet BS-690610

Filter-A/C Cartridge
(Superseded to BS-697029)

$13.99

$

In Stock, Qty 19

0

20

Cub Cadet BS-273356

Filter-Pre-Cleaner
(Superseded to BS-273356S)

$5.49

$

In Stock, Qty 20+

0

21

Cub Cadet BS-690243

Base-A/C Primer

$

$

Not available

22

Cub Cadet BS-691189

Bracket-Casing Clamp

$4.99

$

Usually ships in 2-12 days

0

23

Cub Cadet BS-496115

Primer-Carburetor
(Superseded to BS-694395)

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet BS-691894

Gasket-Air Cleaner

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-692937

Grommet

$9.49

$

In Stock, only 1 left!

0

26

Cub Cadet BS-692617

Bracket-Control

$40.99

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-691147

Screw (Control Bracket)

$3.99

$

Usually ships in 2-12 days

0

28

Cub Cadet BS-691648

Screw (Brake)

$4.99

$

Usually ships in 2-12 days

0

29

Cub Cadet BS-695891

Brake
(Superseded to BS-796136)

$32.99

$

In Stock, only 3 left!

0

30

Cub Cadet BS-692135

Spring-Brake

$8.49

$

In Stock, only 2 left!

0

31

Cub Cadet BS-692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

32

Cub Cadet BS-691303

Link-Mechanical Governor

$8.49

$

Usually ships in 2-12 days

0

33

Cub Cadet BS-691851

Spring-Governor

$7.99

$

In Stock, only 2 left!

0

34

Cub Cadet BS-691466

Guard-Muffler

$54.99

$

Usually ships in 2-12 days

0

35

Cub Cadet BS-690664

Screw (Muffler Guard)

$5.49

$

In Stock, only 4 left!

0

36

Cub Cadet BS-690960

Screw (Muffler Guard)
(Superseded to BS-691108)

$3.49

$

In Stock, Qty 20+

0

37

Cub Cadet BS-692311

Screw/Washer Kit

$7.49

$

In Stock, Qty 10

0

38

Cub Cadet BS-690940

Screw (Fuel Tank)

$3.99

$

In Stock, only 4 left!

0

39

Cub Cadet BS-692294

Spacer-Fuel Tank

$4.99

$

In Stock, Qty 12

0

40

Cub Cadet BS-693377

Tank-Fuel
(Superseded to BS-699374)

$64.99

$

In Stock, Qty 10

0

41

Cub Cadet BS-692046

Cap-Fuel Tank
(Superseded to BS-796577)

$16.99

$

In Stock, Qty 13

0

42

Cub Cadet BS-694248

Muffler

$

$

Not available

43

Cub Cadet BS-691108

Screw (Exhaust Muffler)

$3.49

$

In Stock, Qty 20+

0

44

Cub Cadet BS-691140

Screw (Exhaust Muffler)

$3.99

$

Usually ships in 2-12 days

0

45

Cub Cadet BS-691893

Gasket-Exhaust

$4.49

$

In Stock, Qty 11

0

46

Cub Cadet BS-693981

Gasket-Float Bowl

$3.99

$

In Stock, Qty 20+

0

47

Cub Cadet BS-692047

Assembly-Dipstick/Tube

$

$

Not available

48

Cub Cadet BS-495265

Tube-Dipstick

$

$

Not available

49

Cub Cadet BS-499621

Dipstick

$17.99

$

In Stock, Qty 6

0

50

Cub Cadet BS-691648

Screw (Oil Fill Tube)

$4.99

$

Usually ships in 2-12 days

0

51

Cub Cadet BS-692296

Seal-O Ring (Dipstick Tube)

$4.99

$

In Stock, Qty 11

0

52

Cub Cadet BS-692704

Gasket Set-Carburetor
(Superseded to BS-792383)

$28.99

$

In Stock, Qty 10

0

53

Cub Cadet BS-691136

Screw (Carburetor)
(Superseded to BS-691148)

$3.99

$

In Stock, only 2 left!

0
