SC 700 E (12AEN2S7709) - Cub Cadet Walk-Behind Mower (2018) Deck Assembly Parts Diagram

Walk-Behind Mower

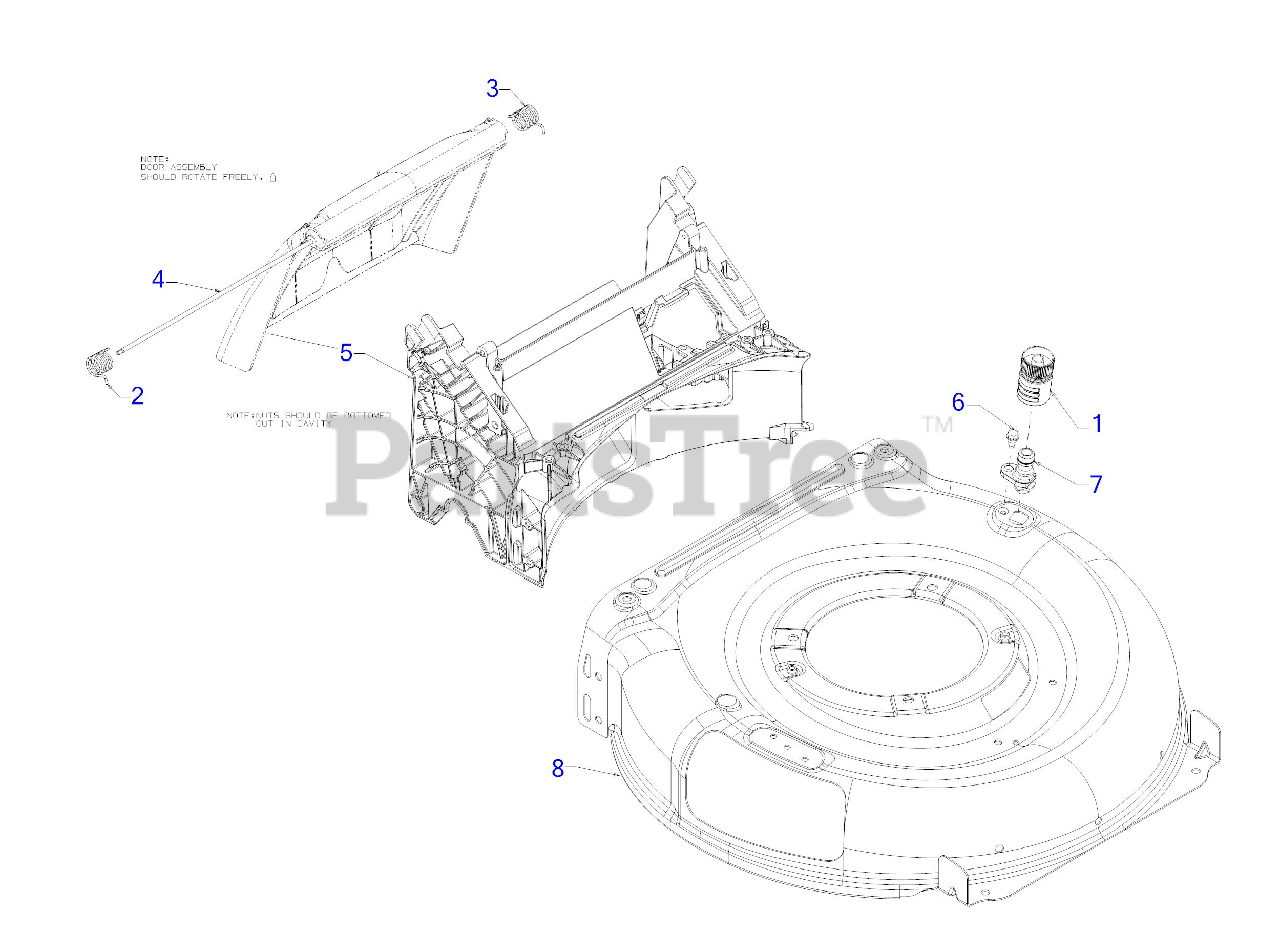

Deck Assembly Parts Diagram

  • Title

1

Cub Cadet 921-04041

WATER NOZZLE

$24.99

$

In Stock, Qty 20+

0

2

Cub Cadet 732-05061A

TORSION SPRING (RH)
(Superseded to 732-05061B)

$5.99

$

In Stock, Qty 15

0

3

Cub Cadet 732-05062A

TORSION SPRING (LH)

$5.99

$

In Stock, Qty 8

0

4

Cub Cadet 747-07046

REAR DOOR PIVOT ROD

$

$

Not available

5

Cub Cadet 631-05643

REAR BAFFLE ASSEMBLY

$

$

Not available

5

Cub Cadet 712-05020

SQUARE LOCK NUT 1/4X20

Note: (Not Shown)

$9.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 738-04502

SHOULDER SCREW 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 731-07487

DECK WASH NOZZLE

$4.99

$

In Stock, Qty 17

0

8

Cub Cadet 787-01875C

21" DECK (3N1)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 787-01875C-0638

Mower Deck, 21" 3-in-1 Red - MTD/TROY-BILT RED (0638)

$134.99

$

Usually ships in 3-6 days

0

Cub Cadet 787-01875C-0691

DECK-21" 3 IN 1 SP - BLACK JACK (0691)

$134.99

$

Usually ships in 3-6 days

0

Cub Cadet 787-01875C-0709

DECK-21" 3 IN 1 SP - MASTERCRAFT GREEN (0709)

$125.99

$

Usually ships in 3-6 days

0

Cub Cadet 787-01875C-4021

DECK-21" 3 IN 1 SP - CUB YELLOW 2 (4021)

$134.99

$

Usually ships in 3-6 days

0

$109.99

$

Usually ships in 3-6 days

0

Cub Cadet 731-07203

TRAILSHIELD

Note: (Not Shown)

$11.99

$

In Stock, Qty 20+

0

Cub Cadet 731-09208

MULCH PLUG

Note: (Not Shown)

$15.99

$

In Stock, Qty 5

0
