SC 700 E (12AEN2S7710) - Cub Cadet Walk-Behind Mower (2021) Deck Assembly Parts Diagram

Walk-Behind Mower

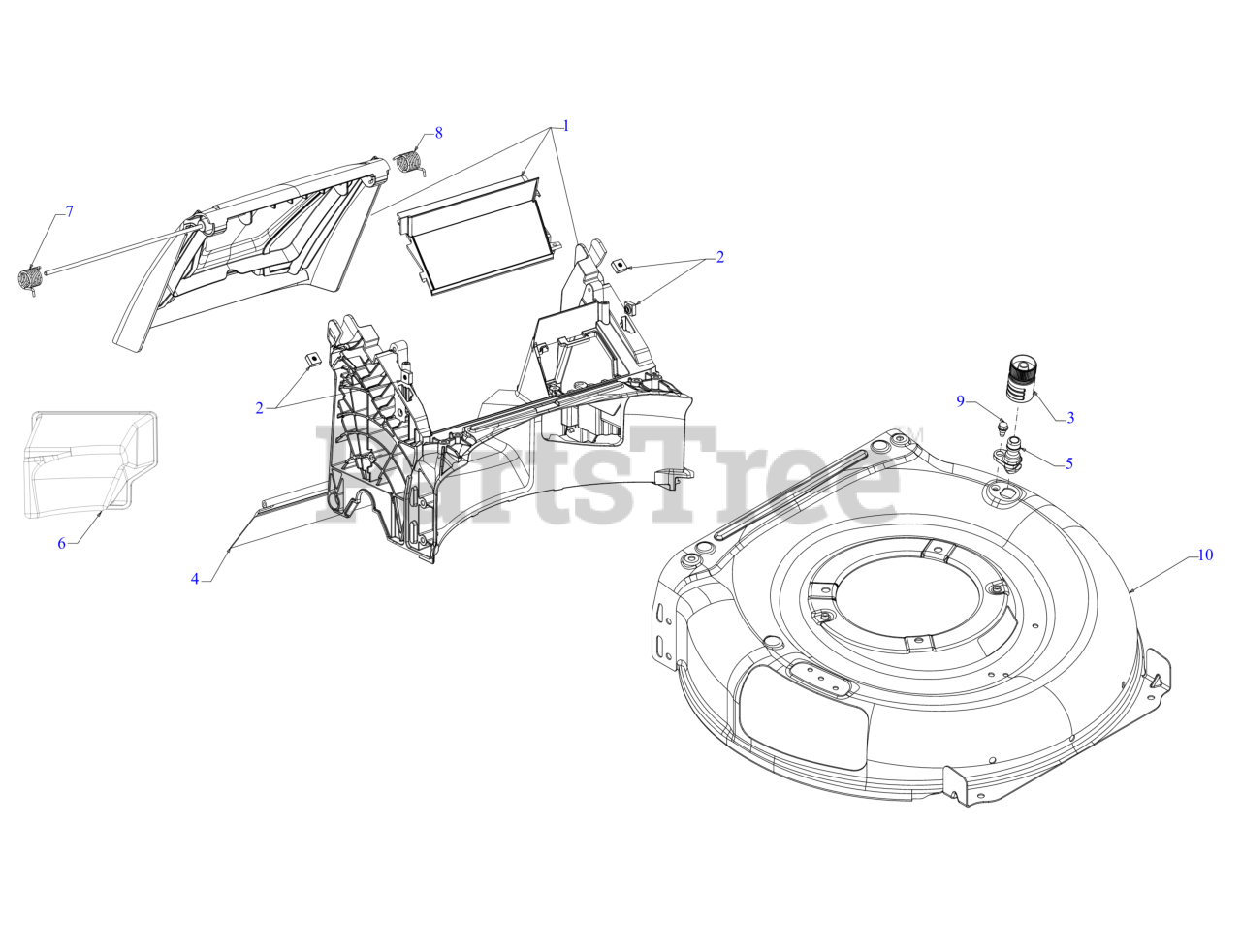

Deck Assembly Parts Diagram

  • Title

1

Cub Cadet 631-06279

21" BAFFLE ASSEMBLY (REAR)
(Superseded to 631-08198)

$73.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 712-05020

SQUARE LOCK NUT 1/4X20

$9.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 921-04041

WATER NOZZLE ADAPTER

$23.99

$

In Stock, Qty 20+

0

4

Cub Cadet 731-07203

TRAILSHIELD

$10.99

$

In Stock, Qty 20+

0

5

Cub Cadet 731-07487

DECK WASH NOZZLE

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 731-16051

21" MULCH PLUG

$11.99

$

In Stock, only 3 left!

0

7

Cub Cadet 732-05061B

TORSION SPRING (RH)

$5.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 732-05062B

TORSION SPRING (LH)

$5.49

$

In Stock, Qty 18

0

9

Cub Cadet 738-04502

SHOULDER SCREW 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 787-01875C

21" DECK (3N1)

Note: (Choose color when ordering)

Variations

Cub Cadet 787-01875C-0638

Mower Deck, 21" 3-in-1 Red - MTD/TROY-BILT RED (0638)

$127.99

$

Usually ships in 3-6 days

0

Cub Cadet 787-01875C-0691

DECK-21" 3 IN 1 SP - BLACK JACK (0691)

$127.99

$

Usually ships in 3-6 days

0

Cub Cadet 787-01875C-0709

DECK-21" 3 IN 1 SP - MASTERCRAFT GREEN (0709)

$118.99

$

Usually ships in 3-6 days

0

Cub Cadet 787-01875C-4021

DECK-21" 3 IN 1 SP - CUB YELLOW 2 (4021)

$127.99

$

Usually ships in 3-6 days

0

$102.99

$

Usually ships in 3-6 days

0
