Sc2400 (54AGA4NR727) - Cub Cadet Yanmar Sc Series Compact Tractor Drive Pinion Parts Diagram

Sc Series Compact Tractor

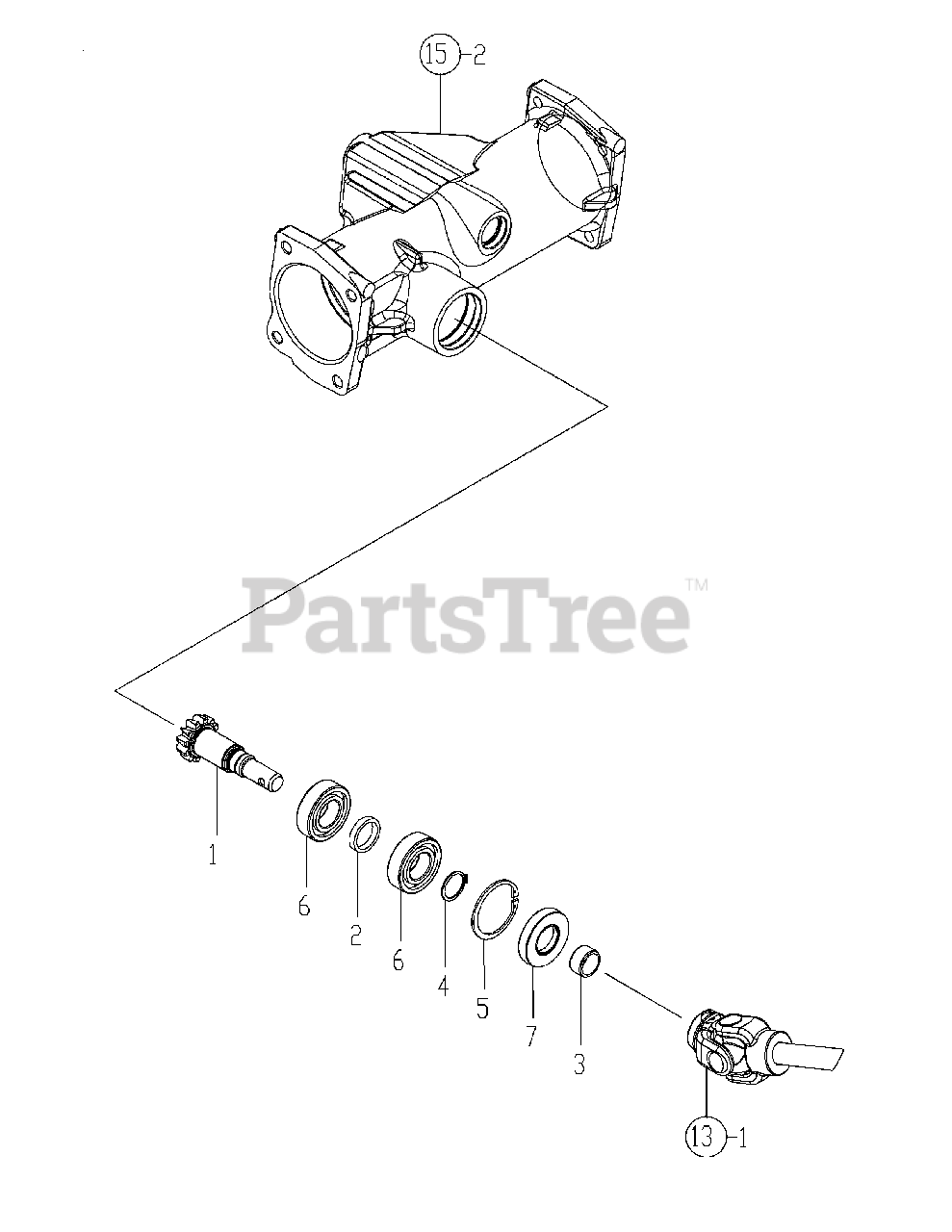

Drive Pinion Parts Diagram

  • Title

1

Cub Cadet CY-1A7130-13120

SHAFT, INPUT

$

$

Not available

2

Cub Cadet CY-1A7130-13130

COLLAR 30X25X5.7

$

$

Not available

3

Cub Cadet CY-1E4760-73240

SLEEVE, 202513

$

$

Not available

4

Cub Cadet CY-22242-000240

RING, 24

$

$

Not available

5

Cub Cadet CY-22252-000520

RING, 52

$

$

Not available

6

Cub Cadet CY-24101-062054

BEARING, 6205 NTN

$

$

Not available

7

Cub Cadet CY-24421-255210

SEAL, TC255210

$

$

Not available

Note:13-1 Refers to PROP SHAFT, Ref No 1

$

$

Not available

Note:15-2 Refers to CASE FRONT AXLE, Ref No 2

$

$

Not available
