Sc2400 (54BFA4TP727) - Cub Cadet Yanmar Sc Series Compact Tractor Engine Fuel Injection Valve Parts Diagram

Sc Series Compact Tractor

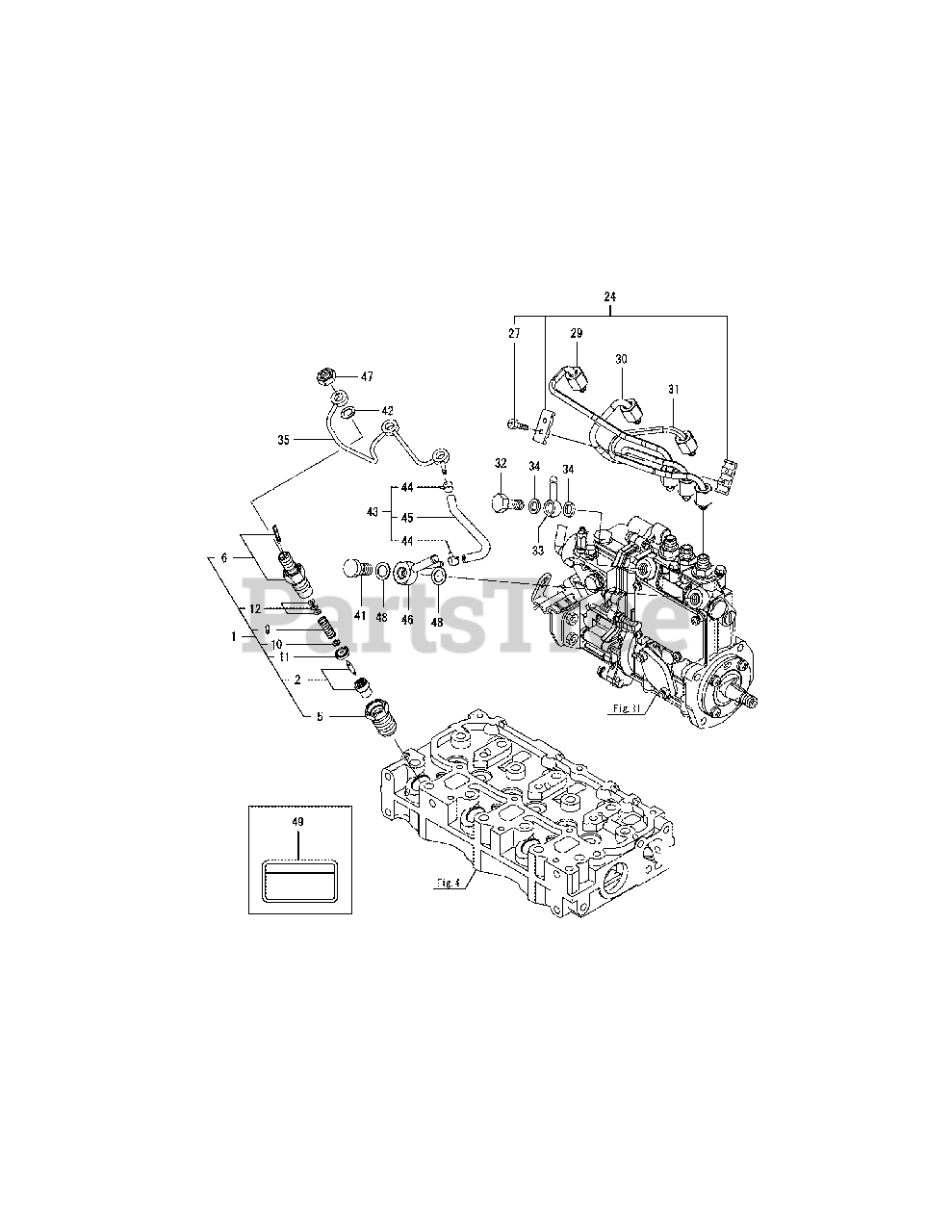

Engine Fuel Injection Valve Parts Diagram

  • Title
1

Cub Cadet CY-719125-53100

INJECTOR, FUEL

$

$

Not available

$

$

Not available

$

$

Not available

6

Cub Cadet CY-119125-53100

HOLDER ASSY, NOZZLE

$

$

Not available

9

Cub Cadet CY-119125-53120

SPRING, NOZZLE

$

$

Not available

10

$

$

Not available

11

Cub Cadet CY-119125-53140

SPACER, VALVE STOP

$

$

Not available

$

$

Not available

24

Cub Cadet CY-129150-59120

RETAINER, PIPE

$

$

Not available

27

Cub Cadet CY-129150-59131

BOLT M4X14,HEX.SCKT.

$

$

Not available

29

Cub Cadet CY-119025-59810

PIPE, FUEL INJECTION

$

$

Not available

30

Cub Cadet CY-119025-59820

PIPE, FUEL INJECTION

$

$

Not available

31

Cub Cadet CY-119025-59830

PIPE, FUEL INJECTION

$

$

Not available

32

Cub Cadet CY-103854-39140

BOLT, PIPE JOINT

$

$

Not available

33

Cub Cadet CY-101304-59020

JOINT, PIPE 12

$

$

Not available

34

Cub Cadet CY-22190-120002

SEAL WASHER 12

$

$

Not available

35

Cub Cadet CY-119515-59540

PIPE ASSY, RETURN

$

$

Not available

41

Cub Cadet CY-119125-59560

BOLT,PIPE JOINT

$

$

Not available

42

Cub Cadet CY-129901-59560

GASKET, RETURN

$

$

Not available

43

Cub Cadet CY-119125-59570

PIPE, FUEL RETURN

$

$

Not available

$

$

Not available

45

Cub Cadet CY-119000-59550

PIPE, FUEL RETURN

$

$

Not available

$

$

Not available

47

Cub Cadet CY-119620-59700

NUT, NOZZLE RETURN

$

$

Not available

48

Cub Cadet CY-22190-120002

SEAL WASHER 12

$

$

Not available

49

Cub Cadet CY-114110-07760

LABEL, FUEL OIL

$

$

Not available
