Sc2400 (54BFA4TR727) - Cub Cadet Yanmar Sc Series Compact Tractor Front Gear Case Parts Diagram

Sc Series Compact Tractor

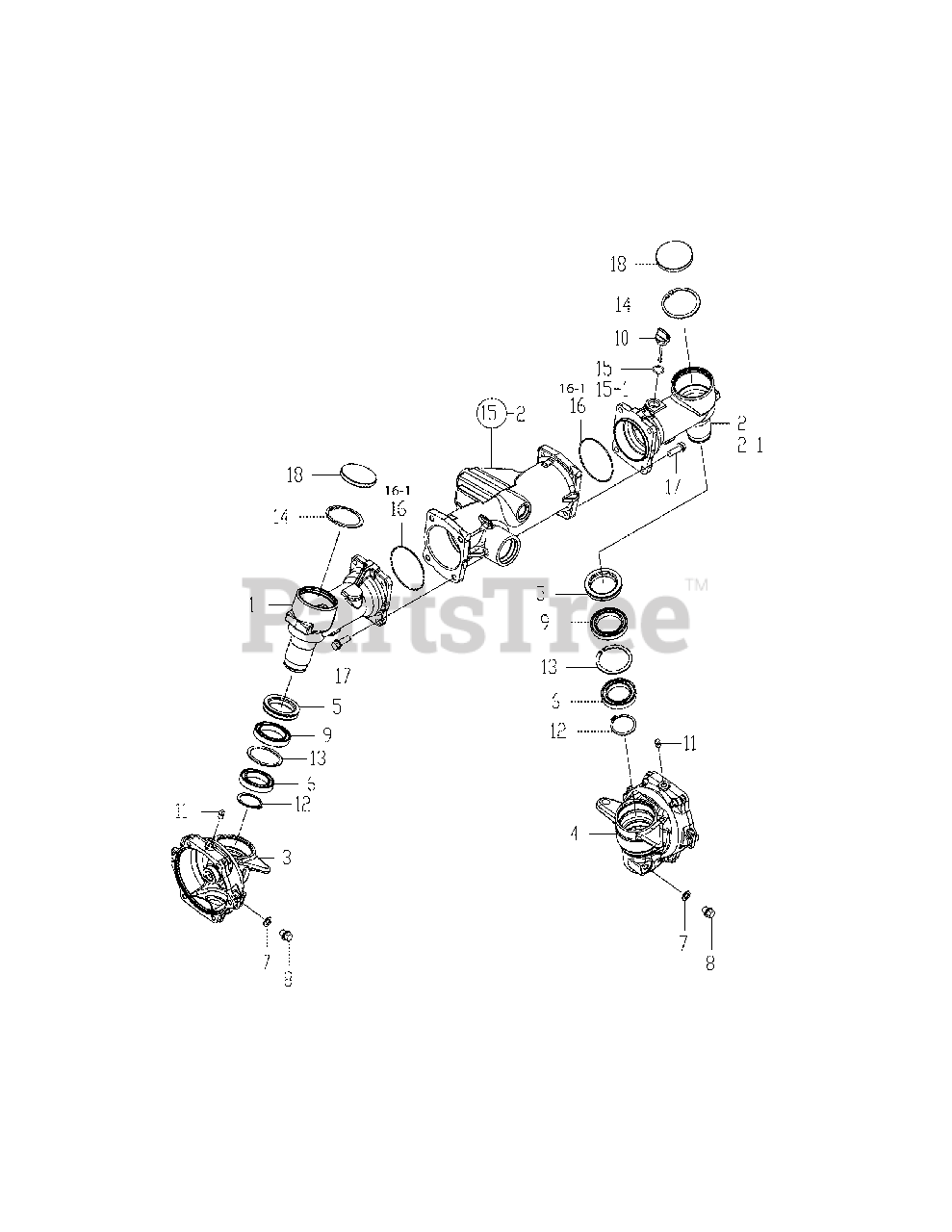

Front Gear Case Parts Diagram

  • Title

1

Cub Cadet CY-1A7880-13710

Case L, Front Gear

$

$

Not available

2

Cub Cadet CY-1A7880-13720

Case R, Front Gear

$

$

Not available

2-1

Cub Cadet CY-1A7880-13721

Case R, Front Gear

Note: SN 001607 & After

$

$

Not available

3

Cub Cadet CY-1A7880-13730

Box L, Front Gear

$

$

Not available

4

Cub Cadet CY-1A7880-13740

Box R, Front Gear

$

$

Not available

5

Cub Cadet CY-1A7880-13780

Seal Qln 50721013

$

$

Not available

6

Cub Cadet CY-194951-14440

Bearing, 6909

$

$

Not available

7

Cub Cadet CY-198165-24440

Gasket, 20X12X2

$

$

Not available

8

Cub Cadet CY-198165-24490

Bolt, M12X12

$

$

Not available

9

Cub Cadet CY-194105-26430

Bearing, 6910

$

$

Not available

10

Cub Cadet CY-1C6050-31250

Gauge, Oil Level

$

$

Not available

11

Cub Cadet CY-194151-36670

Plug, Pf02

$

$

Not available

12

Cub Cadet CY-22242-000450

Ring, 45

$

$

Not available

13

Cub Cadet CY-22252-000681

Ring, 68

$

$

Not available

14

Cub Cadet CY-22252-000720

Ring, 72

$

$

Not available

15

Cub Cadet CY-1A7880-13770

O-Ring 18

$

$

Not available

15-1

Cub Cadet CY-24311-000180

Packing, P 18.0

Note: SN 001607 & After

$

$

Not available

16

Cub Cadet CY-24341-000900

Packing, S 90.0

$

$

Not available

16-1

Cub Cadet CY-24341-000850

O-Ring 1A S-85.0

$

$

Not available

17

Cub Cadet CY-26106-100302

Bolt, 10 X 30

$

$

Not available

18

Cub Cadet CY-27260-720000

Cap, Sealing 72

$

$

Not available

Note: 15-x Refers to Front Axle Case page

$

$
