Sc2450 (54AEG4RV727) - Cub Cadet Yanmar Sc Series Compact Tractor Front Drive Shaft Parts Diagram

Sc Series Compact Tractor

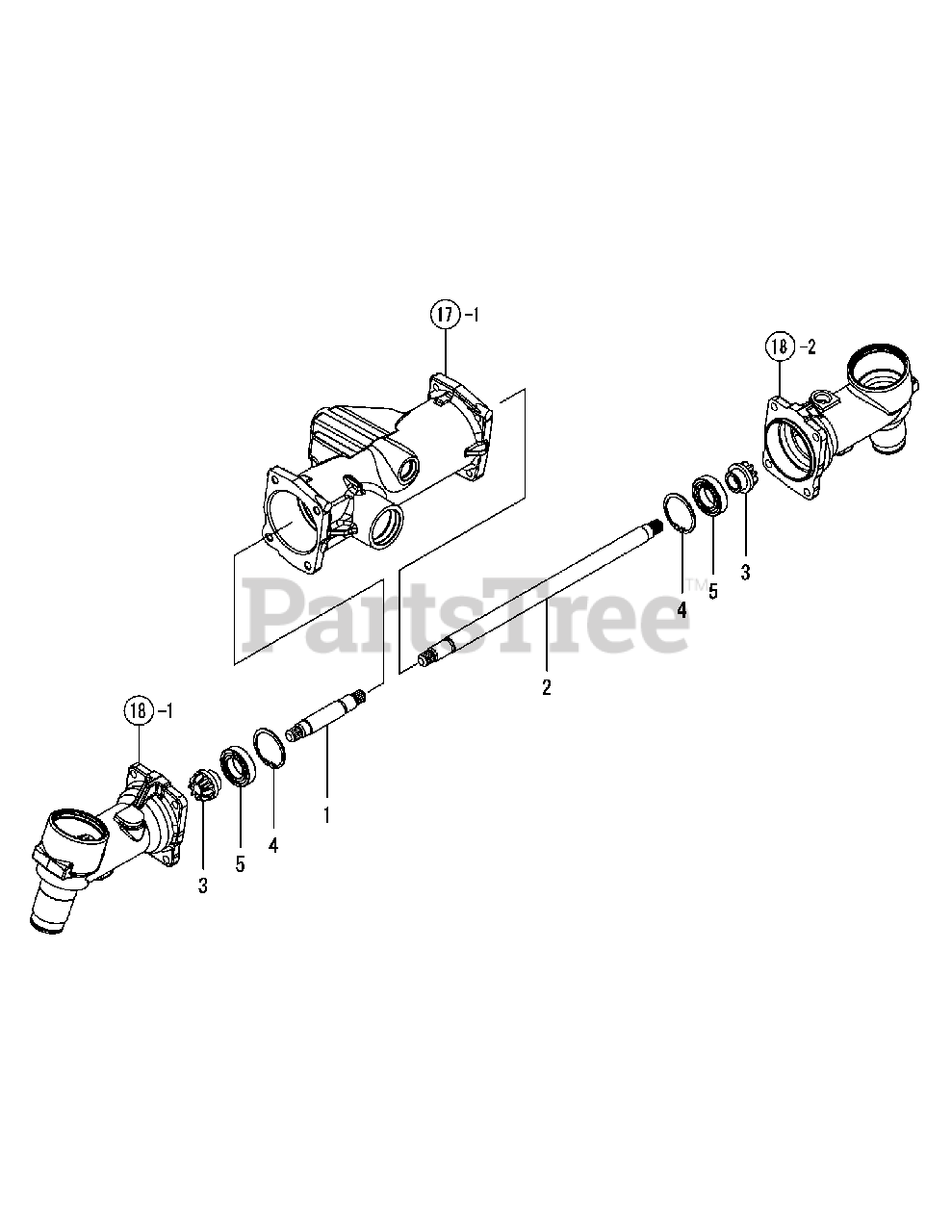

Front Drive Shaft Parts Diagram

  • Title

1

Cub Cadet CY-1A7880-13510

SHAFT L, FRONT 1

$

$

Not available

2

Cub Cadet CY-1A7880-13520

SHAFT R, FRONT 1

$

$

Not available

3

Cub Cadet CY-1A7880-13530

GEAR 9T, BEVEL

$

$

Not available

4

Cub Cadet CY-22252-000550

CIRCLIP 55

$

$

Not available

5

Cub Cadet CY-24101-060064

BALL BEARING

$

$

Not available

Note:17-1 Refers to Front Axle Case, Ref No. 1

$

$

Not available

Note:18-1 Refers to Front Gear Case, Ref No. 1

$

$

Not available

Note:18-2 Refers to Front Gear Case, Ref No. 2

$

$

Not available
