Sc2450 (54AEG4RV727) - Cub Cadet Yanmar Sc Series Compact Tractor Front Shaft Parts Diagram

Sc Series Compact Tractor

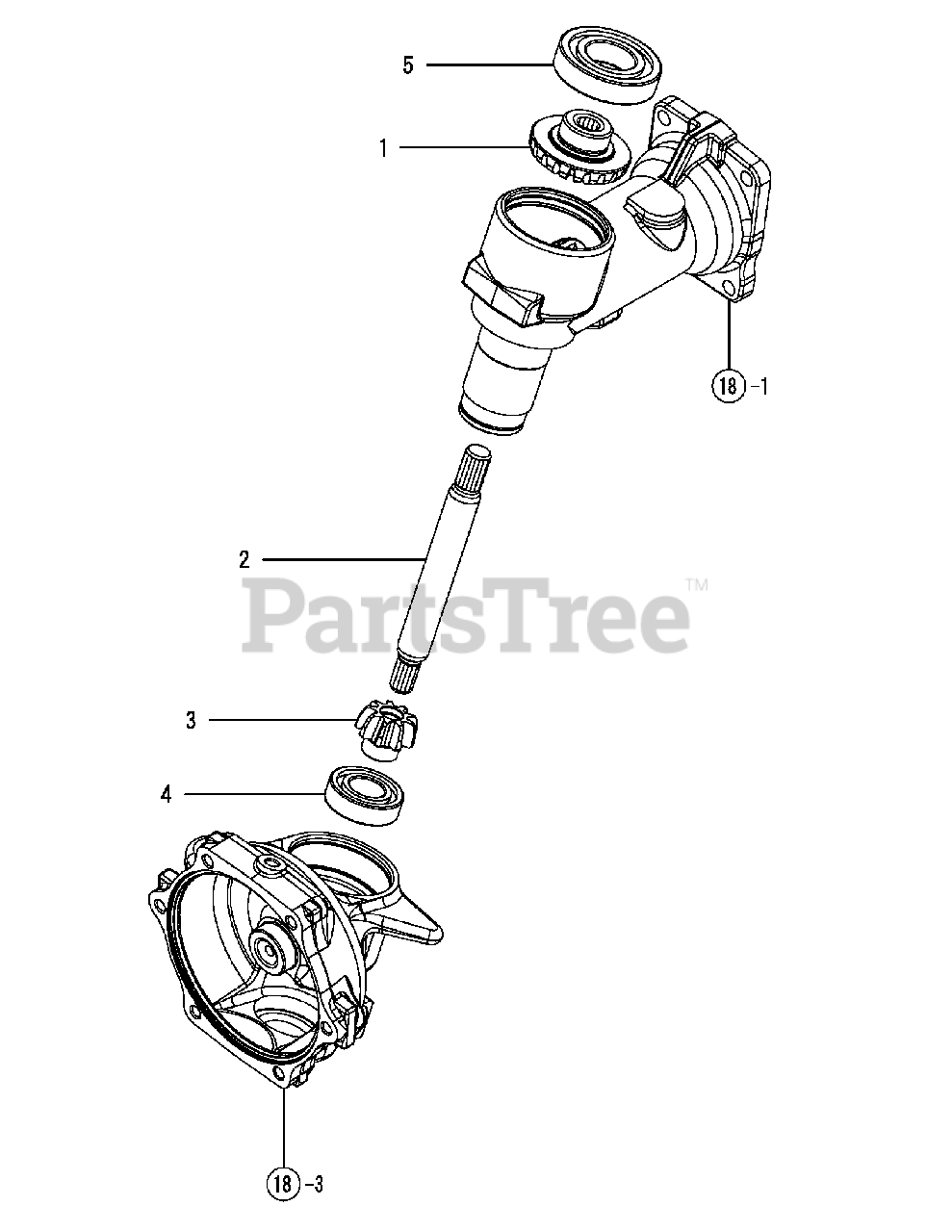

Front Shaft Parts Diagram

  • Title

1

Cub Cadet CY-1A7880-13540

GEAR 20T, BEVEL

$

$

Not available

2

Cub Cadet CY-1A7880-13810

SHAFT, FRONT 2

$

$

Not available

3

Cub Cadet CY-1A7880-13820

PINION F, FINAL

$

$

Not available

4

Cub Cadet CY-24101-062054

BEARING #6205

$

$

Not available

5

Cub Cadet CY-24101-062074

BALL BEARING

$

$

Not available

Note:18-1 Refers to Front Gear Case, Ref No. 1

$

$

Not available
